Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 14:25

IS THIS WHAT YOU ASK FOR ? sorry for upload

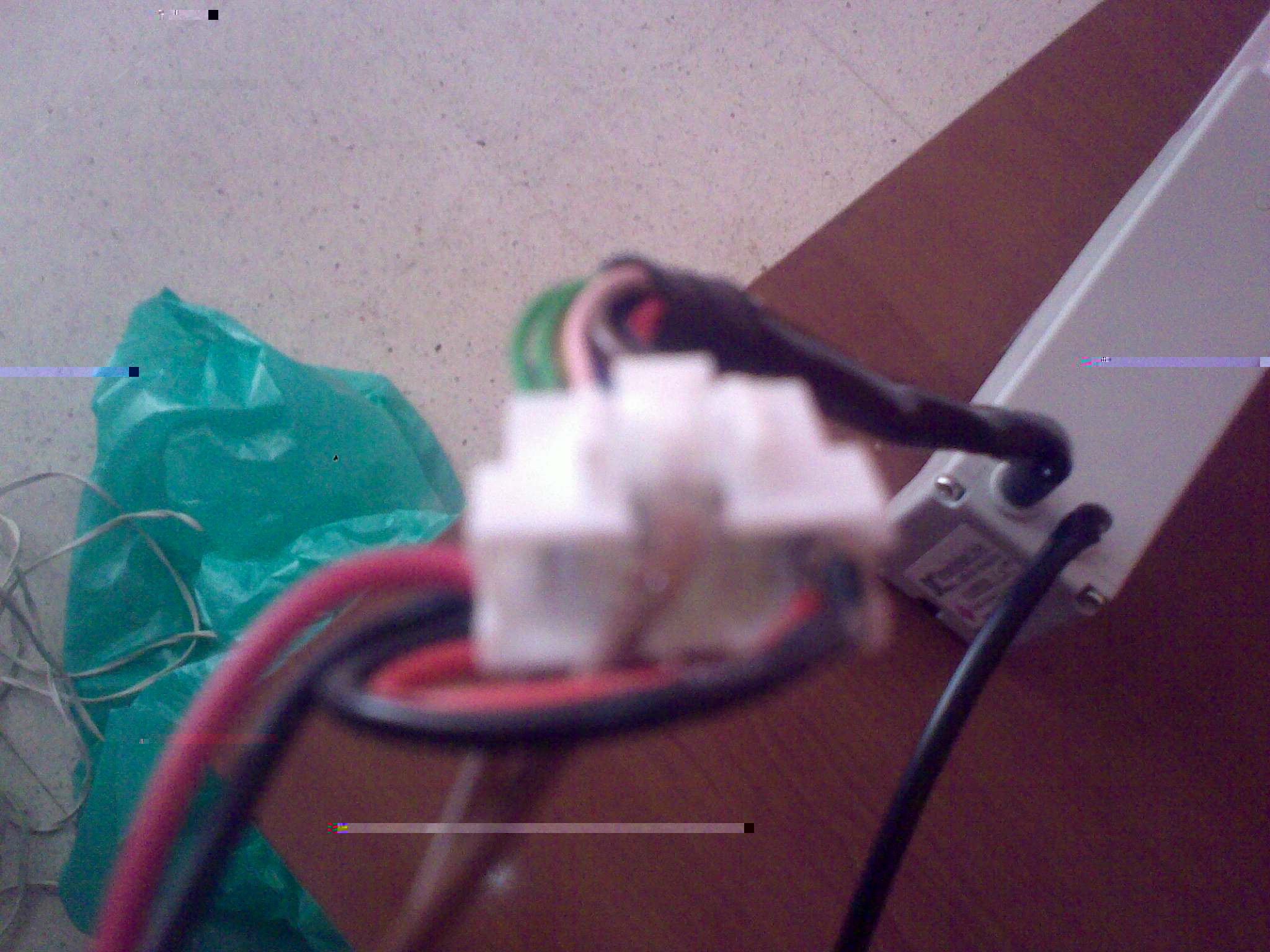

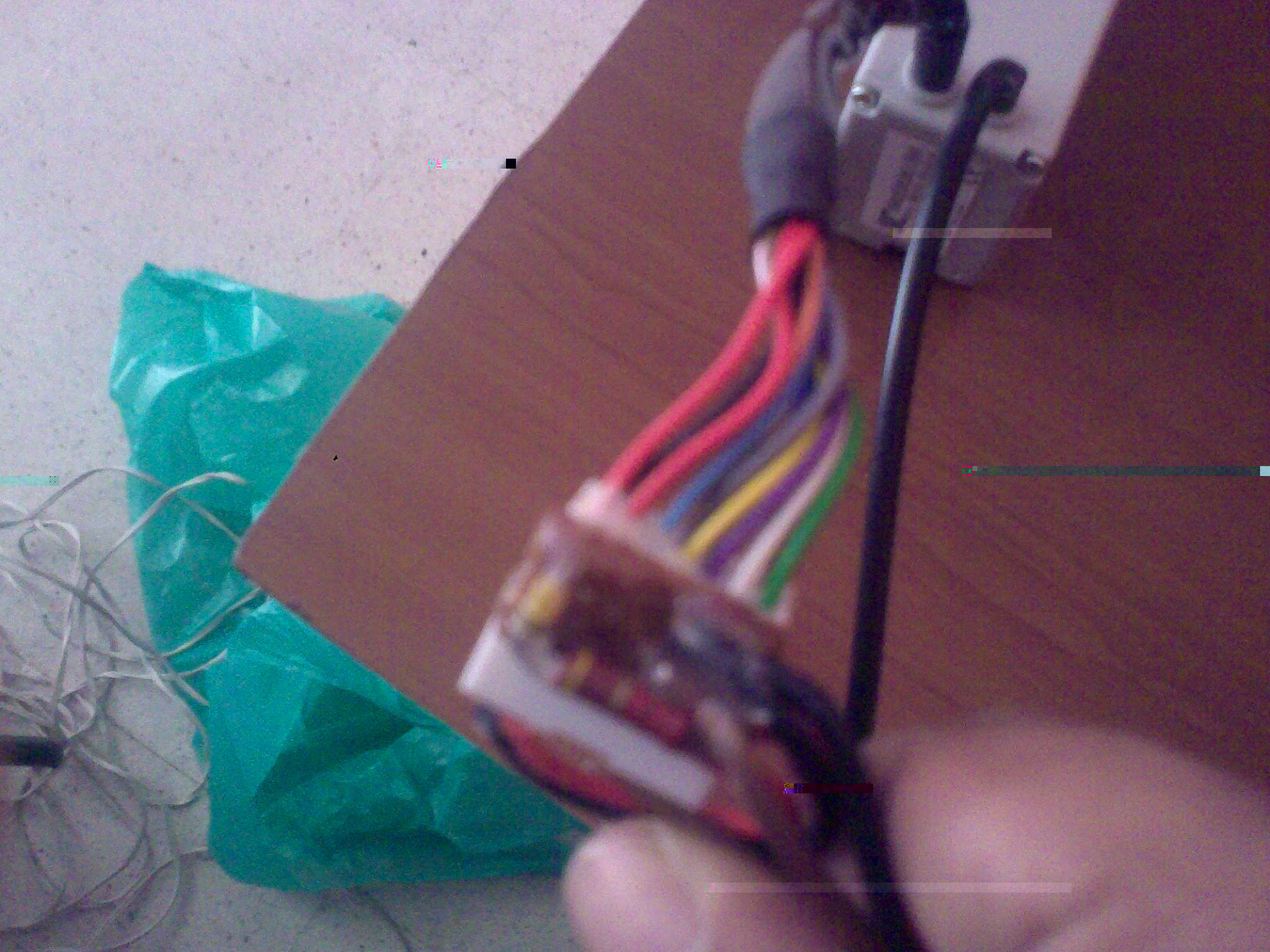

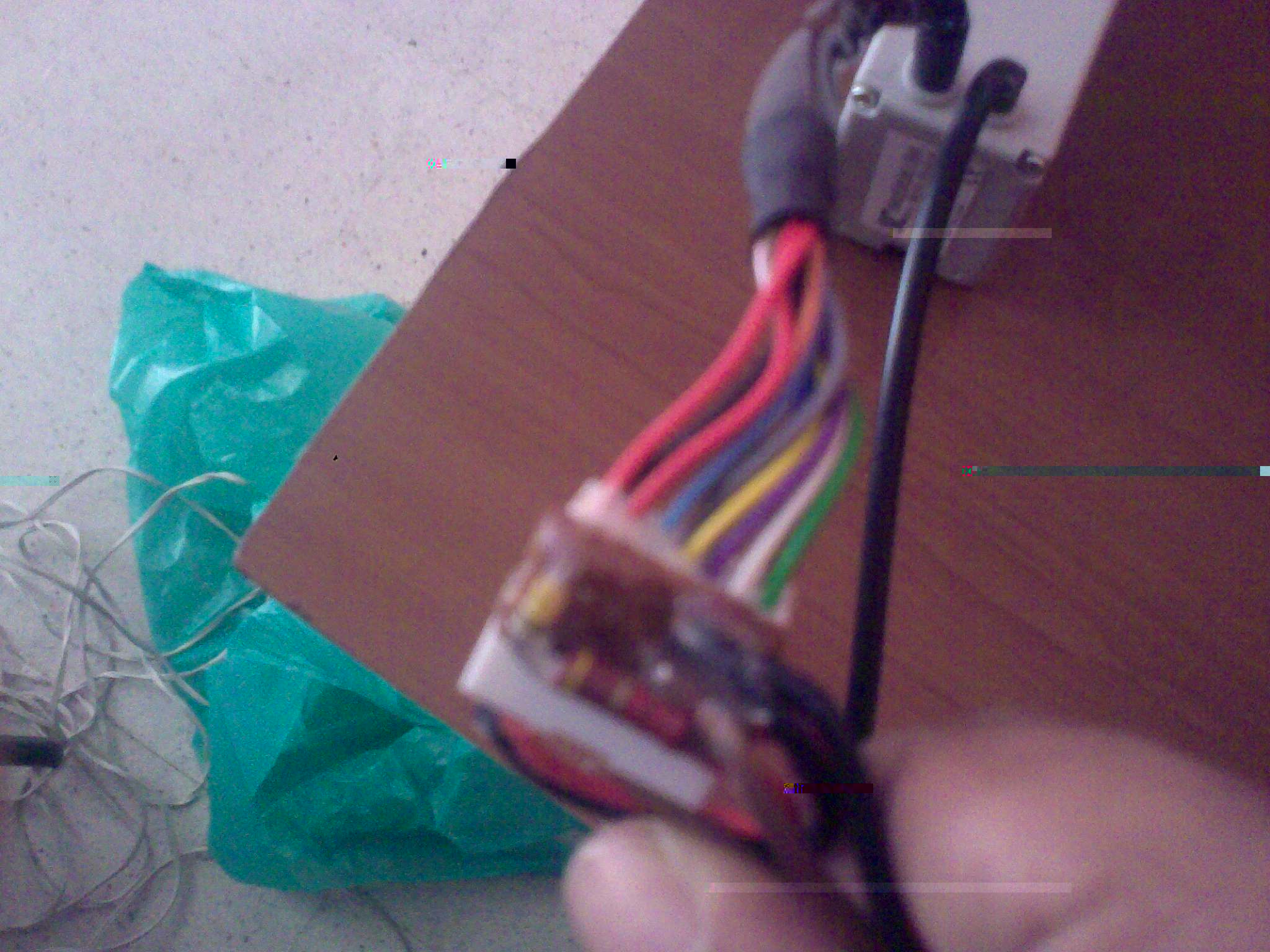

electrical wiring is it possible that will be the problem?

regards
Doc10.docx
(196.75 KiB) Downloaded 1346 times
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 15:11

hi do i need to download pctool for dyadic ?
is it necessary ?
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 15:17

Doc11.docx
(325.48 KiB) Downloaded 1335 times


when i download x-sim on other pc running xp its shown there is some stuff on input interfaces founds on interfaces setting but on my pc running windows 7

Nothing is found see picture after scaning hard disk
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby sirnoname » Sun 3. Nov 2013, 15:32

Yes, your picture shows now the problem.
The part of the lower box shows what X-Sim sends. Compare this with the picture in the first post of this thread which shows a working setup.
You will see for example the ptr... commands are sended.
The response is completely other than shown on this picture. It looks like defective.
This can have two reasons:
a.) there are interferences while receiving (use 120 Ohm resistor or 1m cable)
b.) the setup with the diadics config tools was changed by someone. Where you bought the SCN5?
c.) if not done so far: check the drivers are actual for the RS485 converter, do not use the ones which comes with the adapter. CHeck the device manager, there might be a advanced dialog box where you can change the timings to zero delay.
http://www.usconverters.com/images/ftdi ... ttings.jpg
Latency timer to zero, check on serial printer.
try to increase the timings in the SCN5/6 dialog box of X-Sim by 10-100ms as test (redo this after the test).
If a answer is correct or did help you for a solution, please use the solve button.
User avatar
sirnoname
Site Admin

Posts: 1829
Images: 45
Joined: Thu 1. Sep 2011, 22:02
Location: Munich, Germany
Has thanked: 35 times
Been thanked: 128 times

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 15:54





i bought them from mirai

try latency timer must i can reach is 1 i cant do 0

I ENABLE SERIAL PRINTER AND SERIAL ENUMERATOR
see what i did

Doc13.docx
(560.14 KiB) Downloaded 1358 times
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 15:59

do i have to write something here befor searching snc5 ?
Attachments
Doc14.docx
(401.13 KiB) Downloaded 1298 times
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 16:07

hi

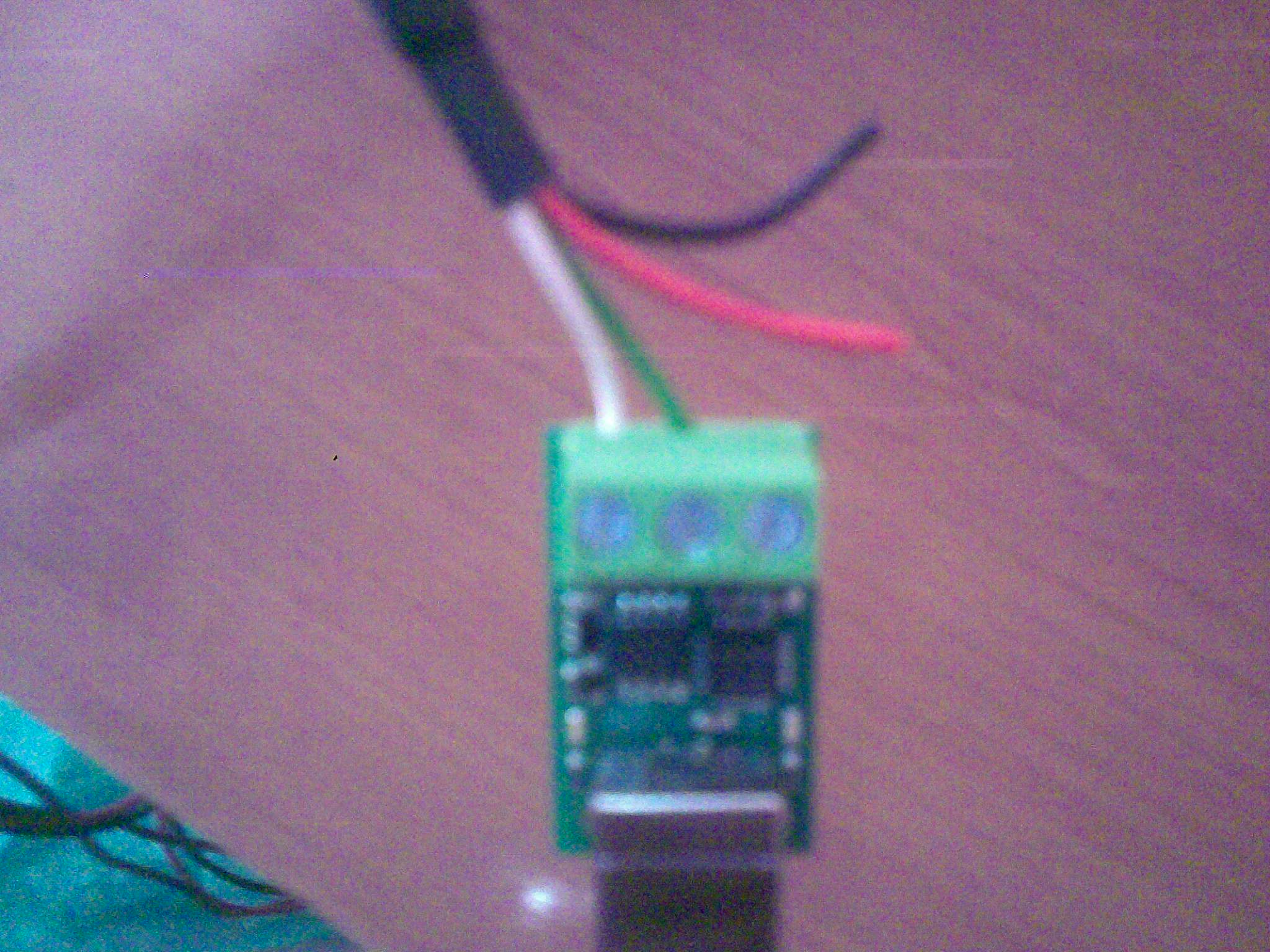

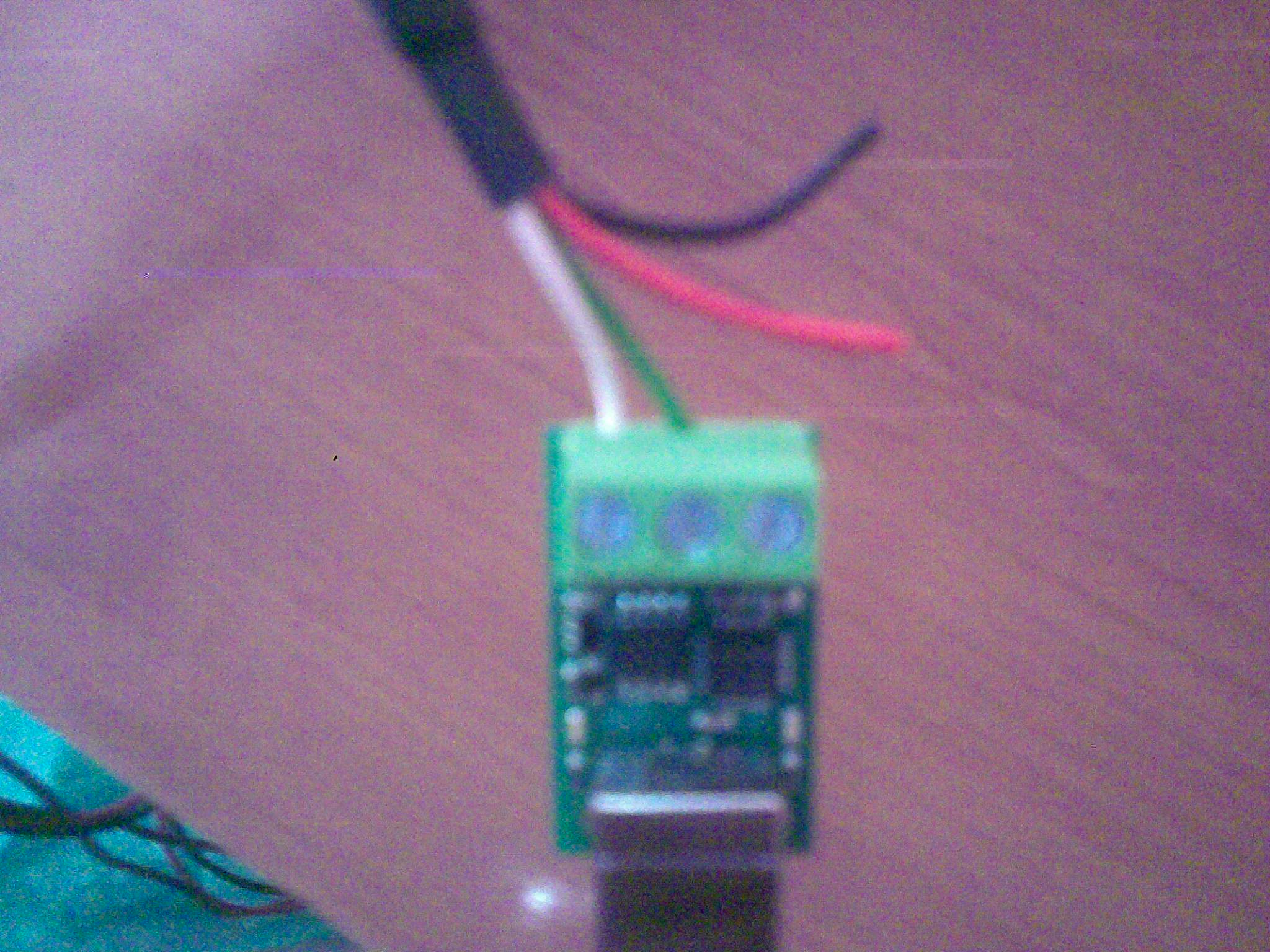

where should i connect the 120ohm resistor ?

on the electrical wiring or usb -rs485 , ?
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby sirnoname » Sun 3. Nov 2013, 16:27

do i have to write something here befor searching snc5 ?

No

Your adapters are idiot save, Mirai do deliver normally in standard setup.
The resistor comes in RS485 wires from green to white, but you cable is short, you do not need this.

Try now this dialog:
download/file.php?id=112&mode=view/electorinterfacesetting.gif
and set switching time to 10,receive delay 5 and switching timeout to 100.
If a answer is correct or did help you for a solution, please use the solve button.
User avatar
sirnoname
Site Admin

Posts: 1829
Images: 45
Joined: Thu 1. Sep 2011, 22:02
Location: Munich, Germany
Has thanked: 35 times
Been thanked: 128 times

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 16:57

Doc15.docx
(533.16 KiB) Downloaded 1346 times


i did and nothing
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time

Re: SCN5 / SCN6 Software Thread

Postby mino74 » Sun 3. Nov 2013, 17:40

Doc16.docx
(573.34 KiB) Downloaded 1333 times

HI is that ok ? see the picture
mino74
X-Sim Supporter

Posts: 50
Joined: Fri 20. Sep 2013, 16:57
Has thanked: 1 time
Been thanked: 0 time
