6dof motion platform ‘lite’

Here you can show and share your design ideas and ask questions about them

Re: 6dof motion platform ‘lite’

Postby tzuvela » Sat 10. May 2014, 21:23

Hi ucasdiulbern,

Thanks for the link, but using twice as much motors is exactly the kind of complexity I'm trying to reduce.
If I really have to have more powerful motors, I'll just buy stronger motors.
I think lever has a lot of benefits, so far mostly been used in 2dof simulators.

In theory you could make 2dof by mounting seat directly to a motor shaft and 2 motors would do the job, but pivot point makes it possible to use much smaller engines, I just plan to use the same tried technique from 2dof wiper simulators.
In 2dof setup, two motors share the same pivot point for movement in 2 directions, for 6dof I plan each motor to have it's own pivot point, which should take on some of platform weight.
Also 1/3 lever should help motors as they will always feel just one third of the platform weight.
tzuvela
X-Sim Supporter

Posts: 15
Images: 0
Joined: Sun 23. Mar 2014, 04:06
Has thanked: 4 times
Been thanked: 2 times

Re: 6dof motion platform ‘lite’

Postby esmadja » Mon 26. May 2014, 19:21

I came across a great post yesterday, which goes into all kinds of details on calculations for designing a 3DoF system. In this case a spring is used to take on some of the load.
http://x-sim.de/forum/viewtopic.php?f=3 ... tion#p8184

I was wondering if instead of using a lever or s sping you could use a gas shock;

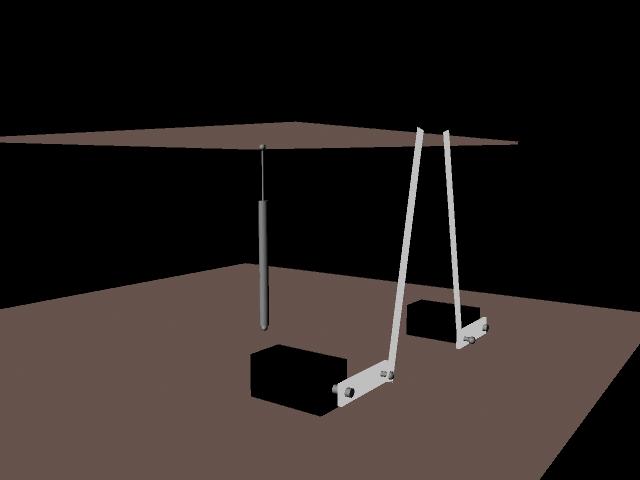

Either one shock positioned in the middle of the platform;
One shock in middle of platform

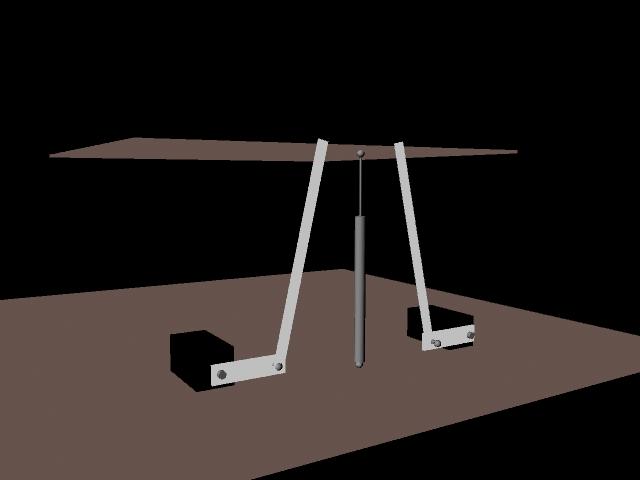

Or three shocks which would be positioned in between two motors
3 shocks one per pair of motors


The shock could be adjusted based on the expected weight of the platform.

Would the shock dampen the system too much?
esmadja

Posts: 9
Joined: Sat 17. May 2014, 17:54
Location: Santa Clara, California
Has thanked: 2 times
Been thanked: 0 time

Re: 6dof motion platform ‘lite’

Postby ferslash » Mon 26. May 2014, 22:37

what is a gas-shock, where do you buy it?

best regards

fer
ferslash

Posts: 226
Images: 4
Joined: Tue 3. Jul 2012, 18:08
Location: Mexico, Guadalajara
Has thanked: 8 times
Been thanked: 1 time


Re: 6dof motion platform ‘lite’

Postby esmadja » Tue 27. May 2014, 06:38

You can also look on Amazon

http://www.amazon.com/SUSPA®-Spring-Strut-Shock-C16-04270/dp/B0041EBSTS/ref=pd_sxp_f_pt/178-3649189-7675532

ferslash wrote:what is a gas-shock, where do you buy it?

best regards

fer
esmadja

Posts: 9
Joined: Sat 17. May 2014, 17:54
Location: Santa Clara, California
Has thanked: 2 times
Been thanked: 0 time

Re: 6dof motion platform ‘lite’

Postby Edwardo » Sat 16. Apr 2016, 16:22

Did this go anywhere? I think the Lever argument was a great idea. I've done a proper study on the Force and Torque side, and my calculations show that with a 370mm lever with a fulcrum at the 300mm point, using one of those beefy 200w, 20Nm gear motors, you can lift 130kg and get total travel of 140mm. That would be taxing the motor but if you could keep your 6dof around ~120kg, it eminently possible to build a 6dof with good travel, that works off a standard powerpoint, with great performance for not much more than 1000 bucks. Maybe a bit more....
I've got a couple of those motors from Motion Dynamics, so tomorrow i'll test if one can lift me (88kg) with a 370mm lever.
Cheers
Ed
Edwardo

Posts: 6
Joined: Mon 5. Aug 2013, 08:13
Has thanked: 1 time
Been thanked: 0 time

Re: 6dof motion platform ‘lite’

Postby guaridagt » Wed 25. May 2016, 23:40

Nice work buddy!
guaridagt

Posts: 1
Joined: Wed 25. May 2016, 23:34
Has thanked: 0 time
Been thanked: 0 time

Re: 6dof motion platform ‘lite’

Postby tzuvela » Thu 20. Apr 2017, 17:06

Thanks Edwardo and esmadja,

Sorry for a lack of replies, but I think the project is getting closer to completion now.

I've decided to go with chain and sprocket system, and the prototype I made last year has worked out quite well (ignore the bad welding ):
https://tinyurl.com/mdyrjtg



Does anyone know if I need to buy Supporter Edition or Single license for x-sim.de ?
http://www.x-sim.de/software.php?lang=e ... commercial
tzuvela
X-Sim Supporter

Posts: 15
Images: 0
Joined: Sun 23. Mar 2014, 04:06
Has thanked: 4 times
Been thanked: 2 times
