(WIP) 2DOF seat mover with F1 seat position

[lilted]

Hello everyone,

so this coming new year im planning to do my self a 2DOF seat mover...most preferably using f1 seated position style. So i have spend almost half year reading and gaining knowledge how to build this thing. So yeah, please help me during my adventure yes?

this project is inspired by racingmat's Finished 2DOF 12V DC wiper arduino playseat
Link to his project : viewtopic.php?f=36&t=1617

he has very detail instruction so thanks racingmat!..without your guidance , i dont know what happen next.

and also to very big thanks to x-sim team for the AWESOME SOFTWARE!!! and its community that very helpful!!..i feel so awesome now!


i have ordered monster motor board 2pcs (1 for backup or for each individual motor)
Link to the shop : http://www.dx.com/p/monster-moto-shield ... GPOeBt95pg

next i will go find some useful wiper motors at scrap yard (or maybe a new ones).
SO what type of automotive wiper motor that should i looking for??...i read somewhere that finding the truck or minivan with bigger wiper blade should have a strong wiper motors?...it is true?..well im going for cheap solution first...i know there's somewhere selling better motor like motion control motor from aussie i guess?..well its kinda expensive for my budget...maybe next time

Minor Update : 30/12/2016
instead going for F1 seat position..i choose GT seating posing..less headache.. ..
i will be using the measurement from motiondave (thanks to him!!..i read somewhere in this forum about those measurement) and might be adjusting a little bit

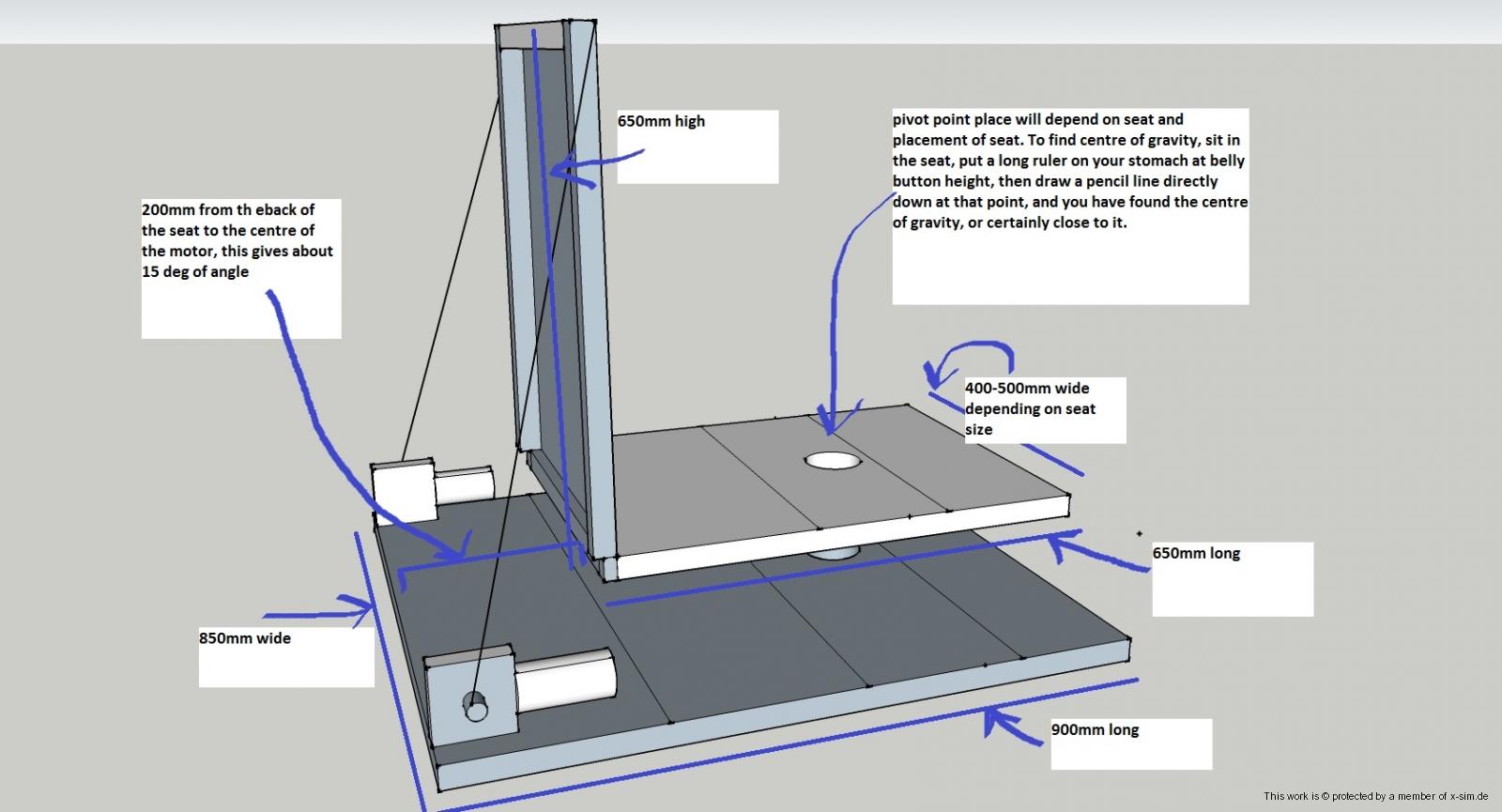

So this a basic measurement that im going to use
Photo credit to motiondave

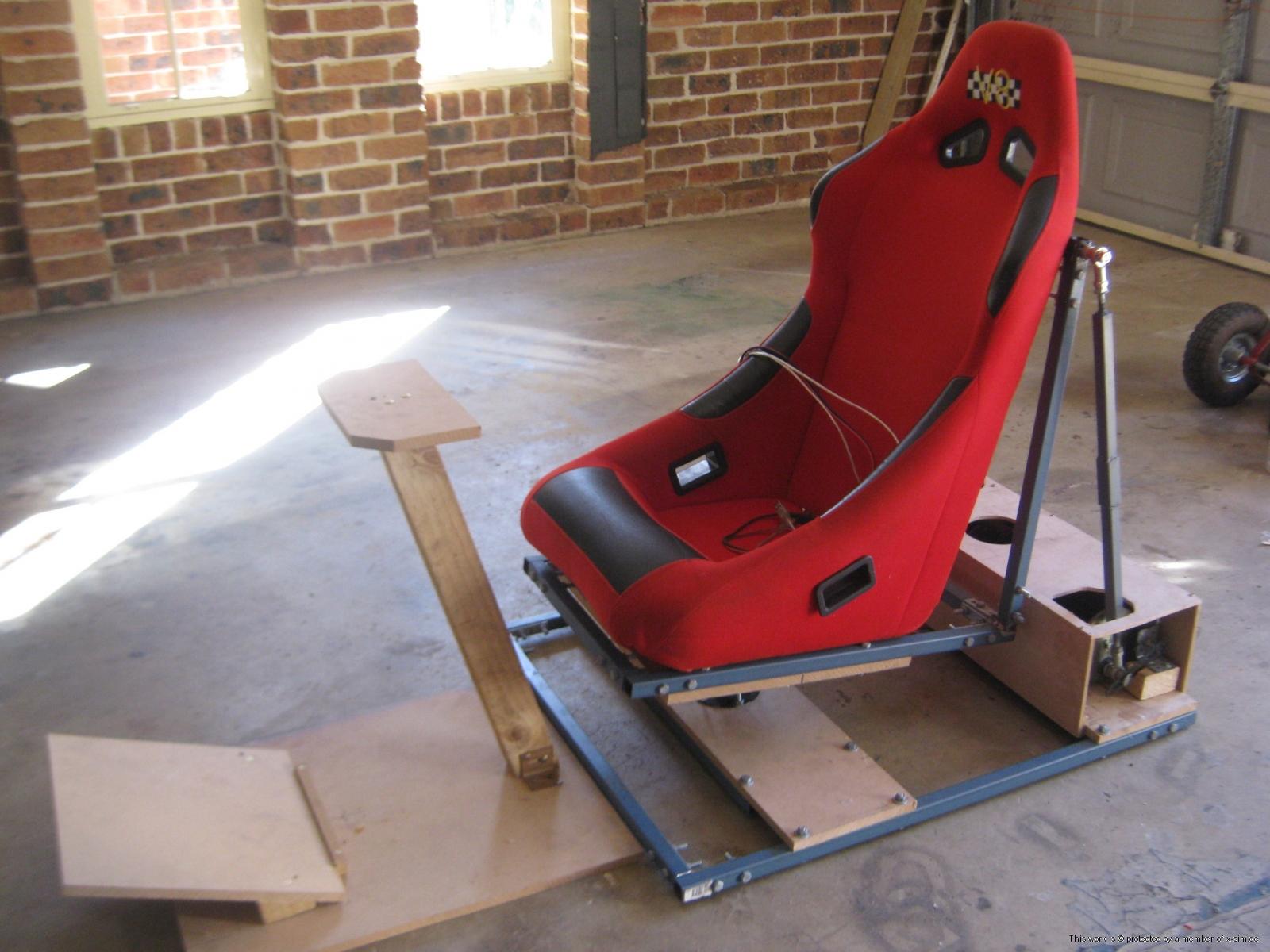

this is his final build using the measurement (i supposed)
photo credit to motiondave


instead of using screws and bracket..i decided to weld all the joint together..i already sent the design to welder shop..so wanting them to quote me price..

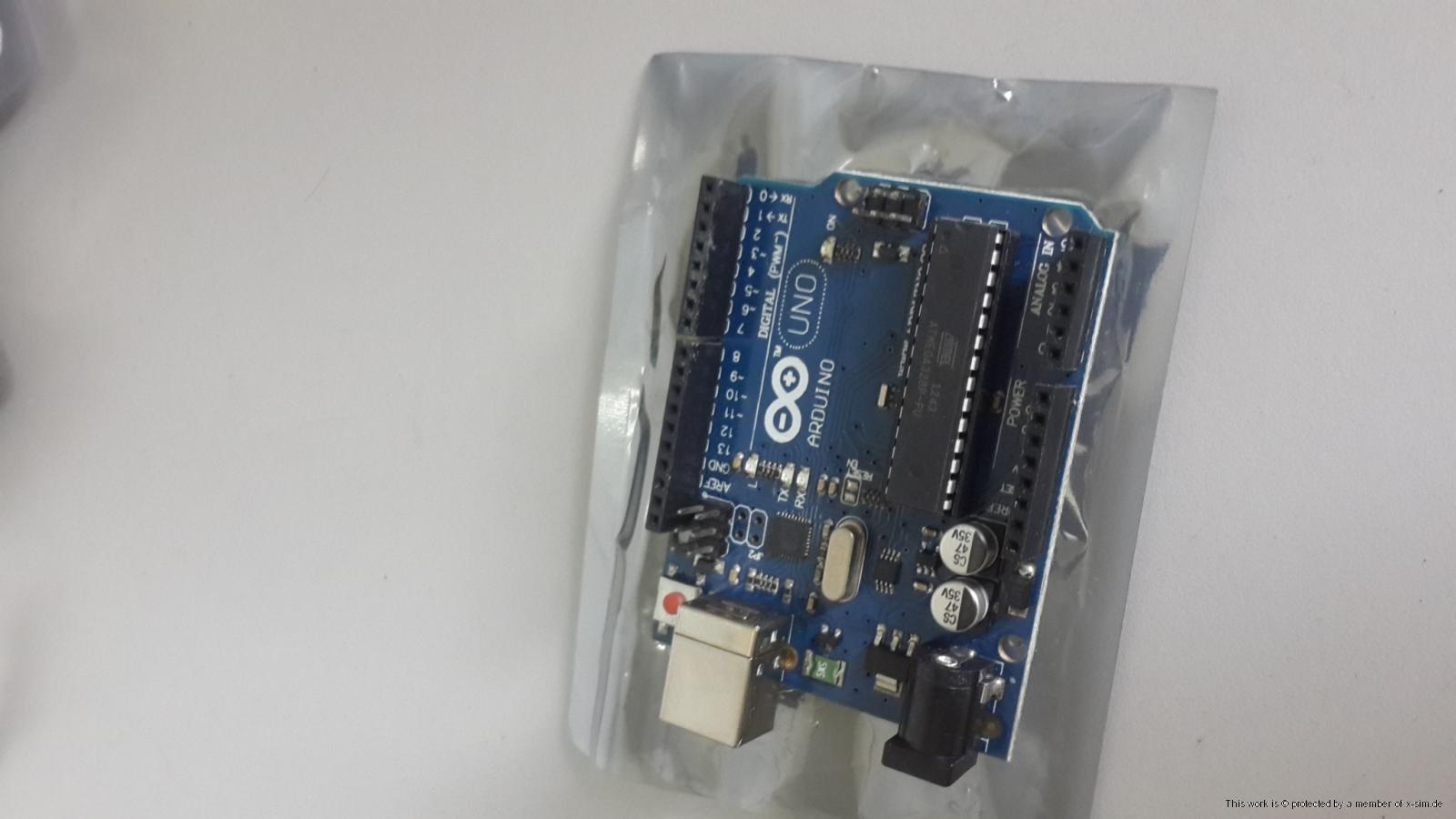

and owh yes!...my arduino UNO board is arrived!!!
i got it here : http://www.dx.com/p/uno-r3-atmega16u2-d ... GXvUht97cs
its a clone arduino Uno..what the heck..look same to me..so im going to use it

[lilted]

QUICK QUESTION..

im drafting a design for seat mover. the seat that i'll be using is bride low max semi bucket...do i need to include adjustable railing beneath the seat or let the bucket direct screw to the seat mover platform?...

thanks
