I state with pleasure thanking "Racing Mat" user from which I was inspired for my project. I present my "sim 2 dof". For my homemade simulator, I chose the iron rods of 35x35mm 2 mm size for the base and 30x30mm and 20x20 sp.2mm for the upper float. The all welded.
I will show you step by step my realization.
_________________________________________________________________________________________________________________________
Chassis

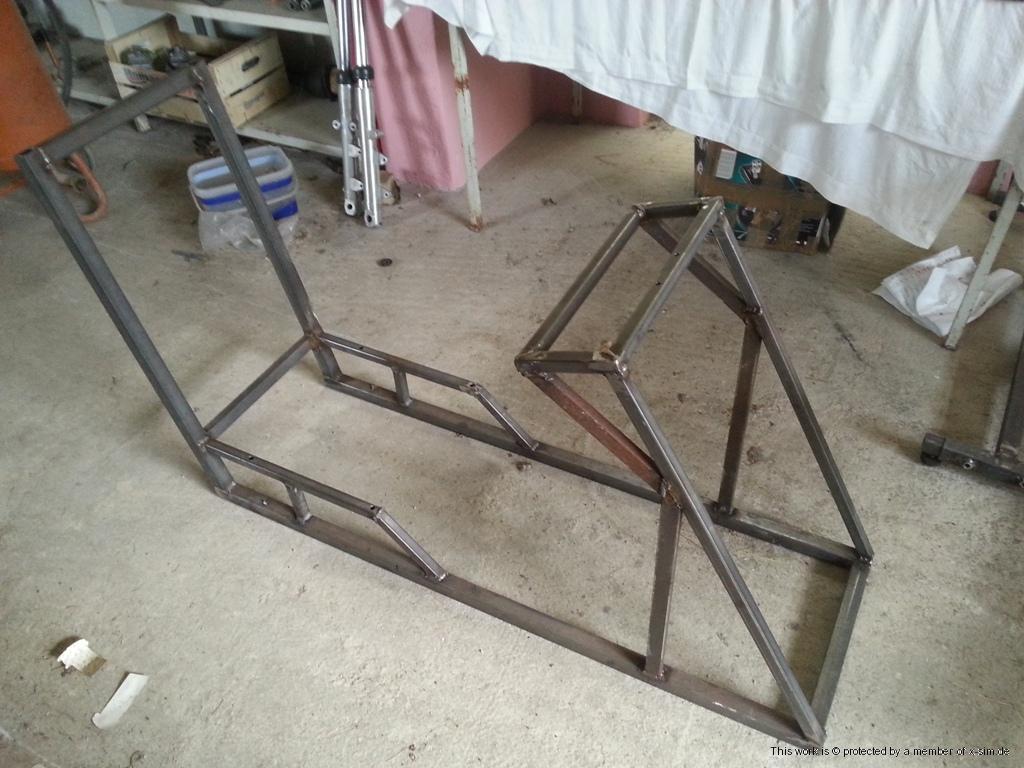

The upper part of my frame

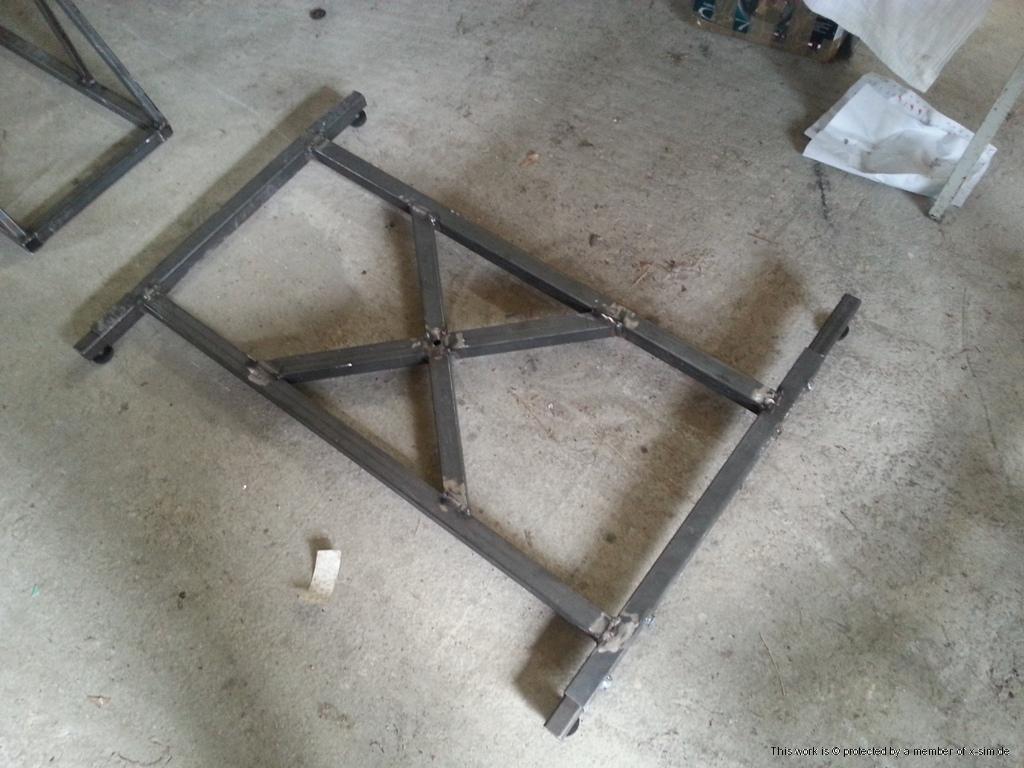

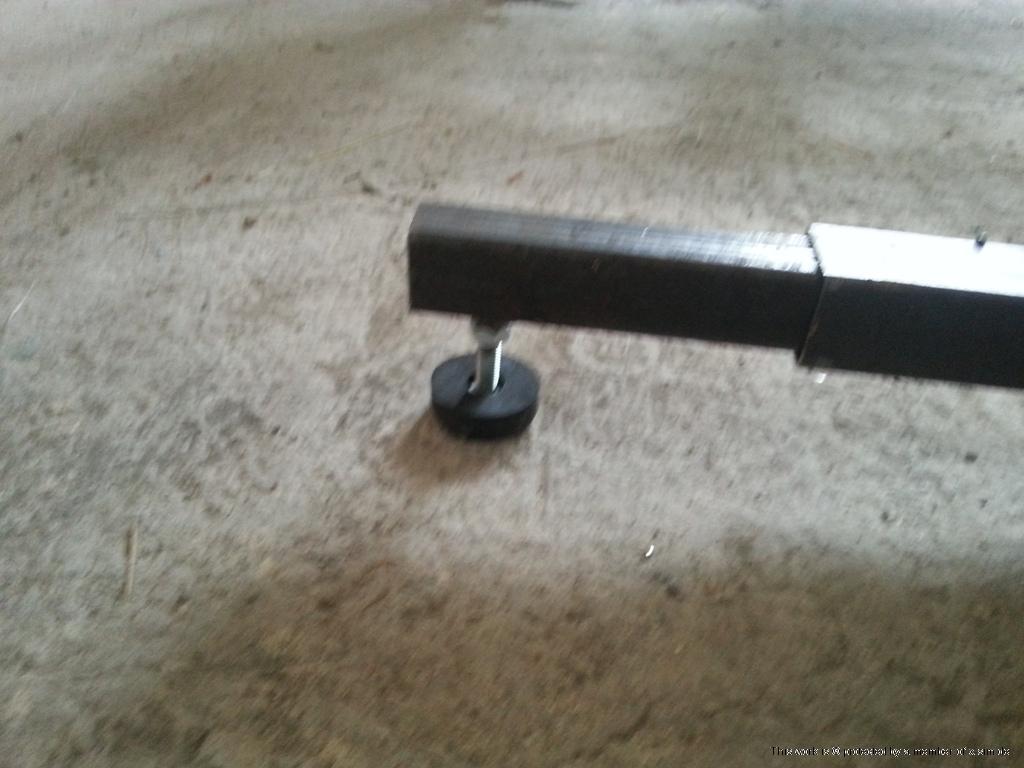

The lower base with adjustable feet.

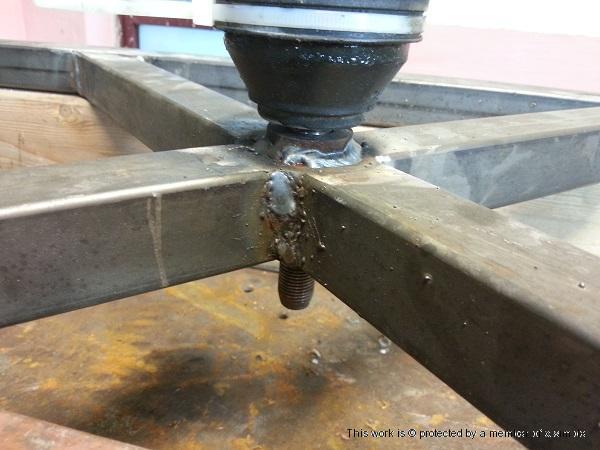

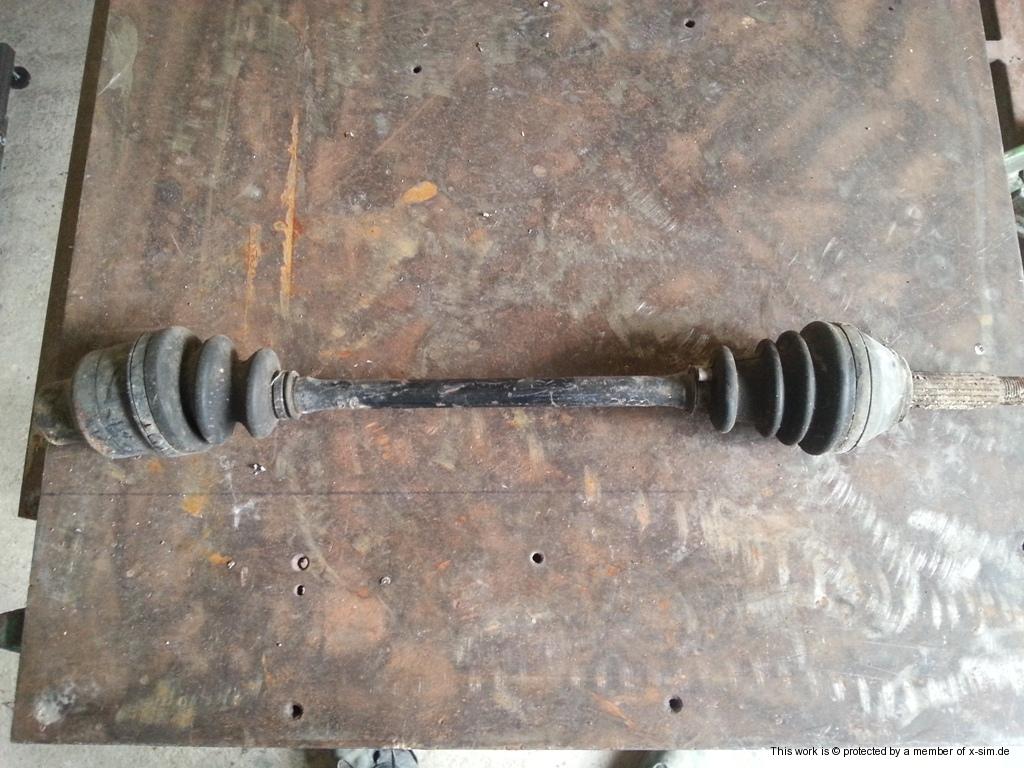

The cardan joint used in the assembly of the top and the bottom of the frame, is a joint of a transmission of a buggy, cut and greased.
I created a hole on the two parts. I reinforced the hole with two iron rings and then I fastened the cardan joint by welding
The result is this
_________________________________________________________________________________________________________________________
Electronic and motor
The utilized solution to move the frame, are two wiper motors, exactly SMOLKA VALEO 404458. Powered and controlled by motomonster card and "Arduino", controlled by 10Kohm linear potentiometers.

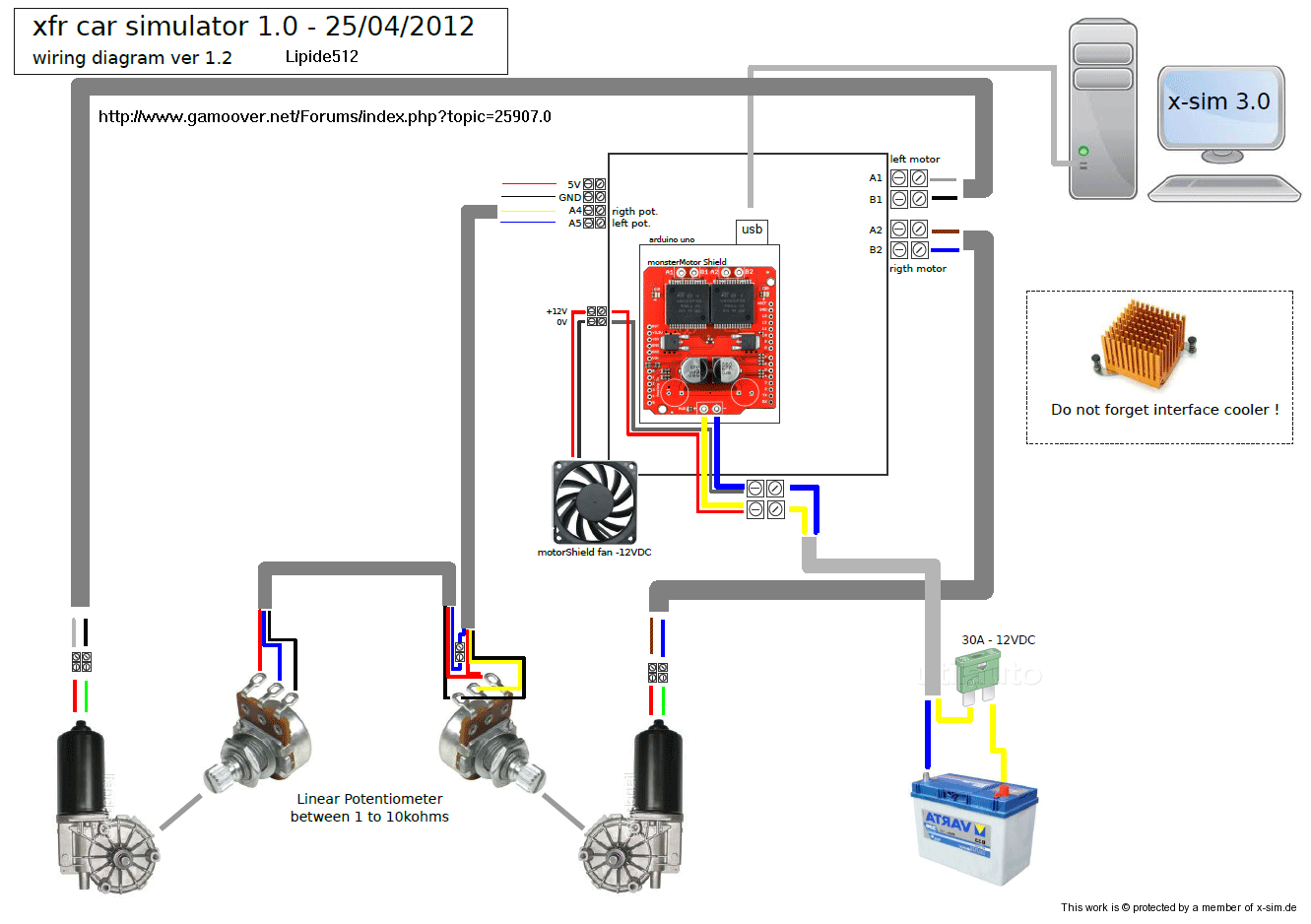

I was inspired by the shared schema from "Racing Mat".
I've got all the necessary material on various internet sites.

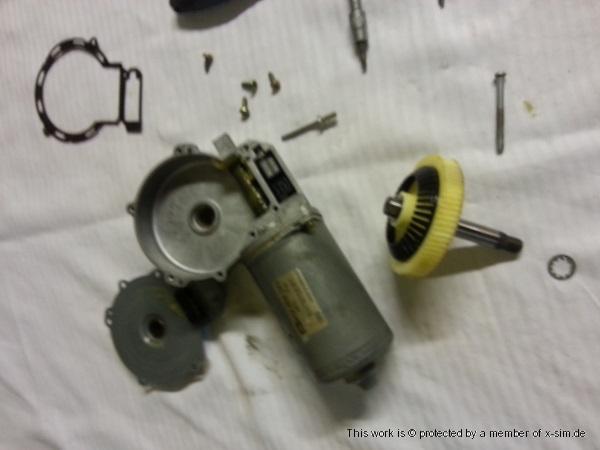

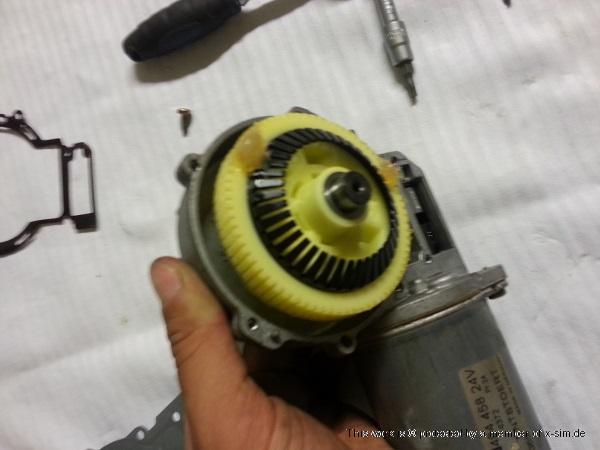

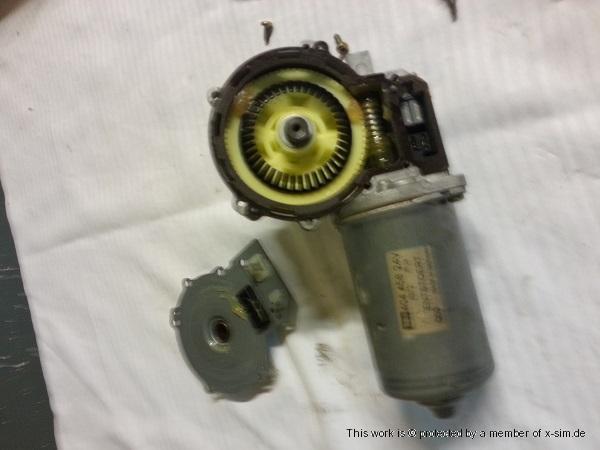

Wiper motor - Smolka Valeo 404.458 12V Wiper Motor

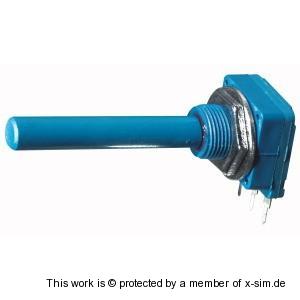

Linear pot
Arduino and motomoster
Electric cables
power supply 12V 50A

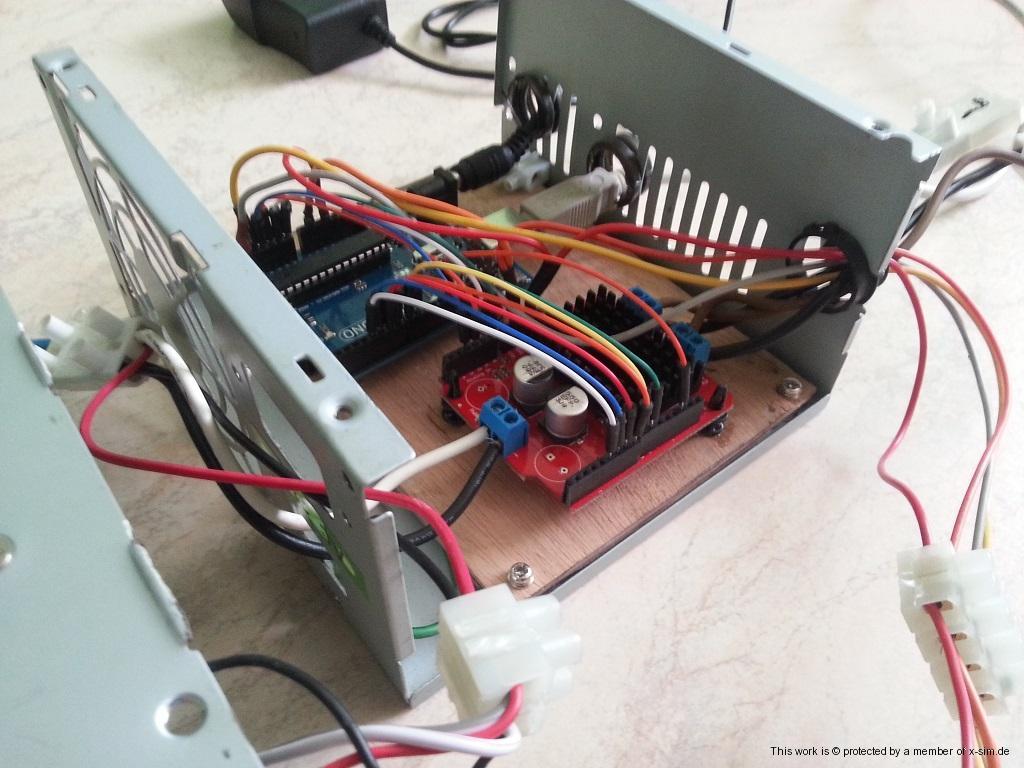

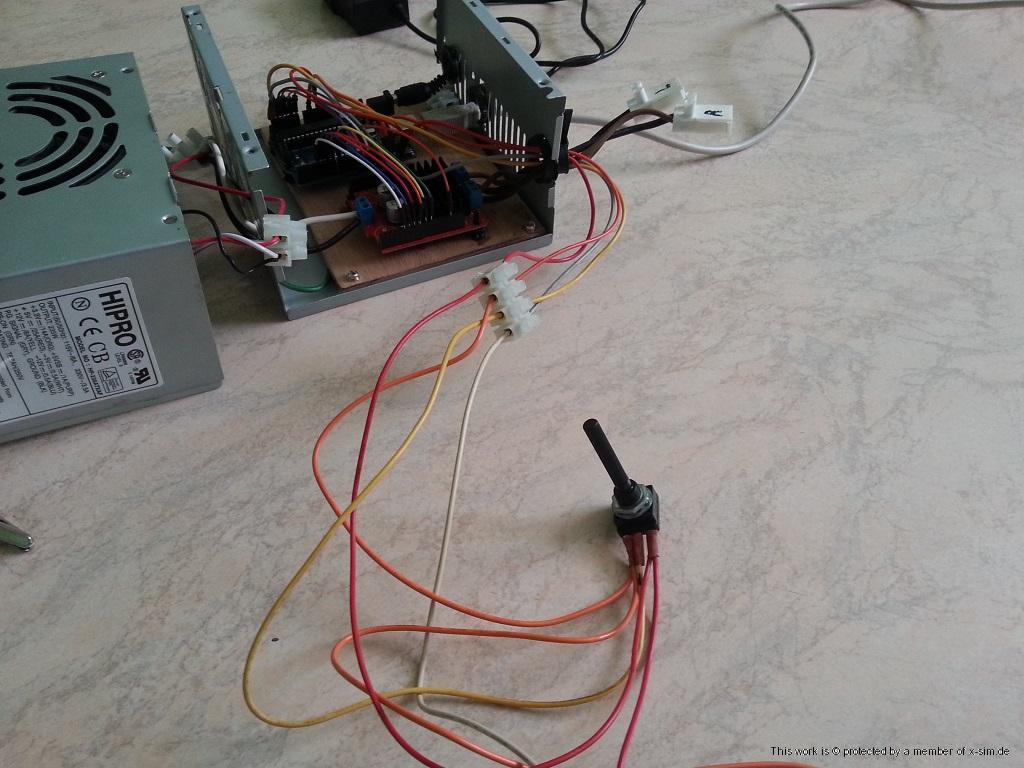

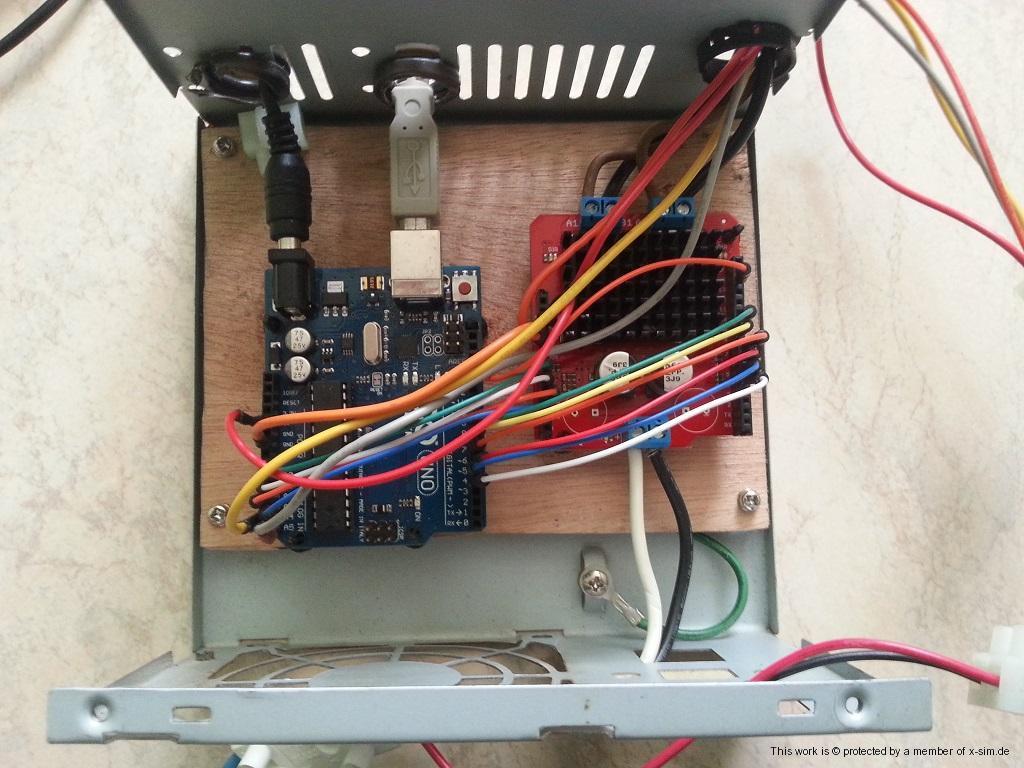

The motomoster can be attached on top of the Arduino. I preferred to make them work parallel, so there is no danger of a short circuit and overheating, I have also connected the potentiometers as the diagram of "Racing Mat".
Then I connected Arduino to the PC and I upload this "Sketch" in Arduino.
- Code: Select all
/*
Arduino code for dynamic playseat 2DOF
Created 24 May 2011 by Jim Lindblom SparkFun Electronics https://www.sparkfun.com/products/10182 "Example Code"
Created 24 Apr 2012 by Jean David SEDRUE Version betatest26 - 24042012 http://www.gamoover.net/Forums/index.php?topic=25907
Updated 20 May 2013 by RacingMat in english http://www.x-sim.de/forum/posting.php?mode=edit&f=37&t=943&p=8481 in french : http://www.gamoover.net/Forums/index.php?topic=27617
Updated 30 April 2014 by RacingMat (bug for value below 16 corrected)
*/
#define BRAKEVCC 0
#define RV 2 //beware it's depending on your hardware wiring
#define FW 1 //beware it's depending on your hardware wiring
#define STOP 0
#define BRAKEGND 3
////////////////////////////////////////////////////////////////////////////////
#define pwmMax 255 // or less, if you want to lower the maximum motor's speed
// defining the range of potentiometer's rotation
const int potMini=208;
const int potMaxi=815;
////////////////////////////////////////////////////////////////////////////////
#define motLeft 0
#define motRight 1
#define potL A0
#define potR A1
////////////////////////////////////////////////////////////////////////////////
// DECLARATIONS
////////////////////////////////////////////////////////////////////////////////
/* VNH2SP30 pin definitions*/
int inApin[2] = {
7, 4}; // INA: Clockwise input
int inBpin[2] = {
8, 9}; // INB: Counter-clockwise input
int pwmpin[2] = {
5, 6}; // PWM input
int cspin[2] = {
2, 3}; // CS: Current sense ANALOG input
int enpin[2] = {
0, 1}; // EN: Status of switches output (Analog pin)
int statpin = 13; //not explained by Sparkfun
/* init position value*/
int DataValueL=512; //middle position 0-1024
int DataValueR=512; //middle position 0-1024
////////////////////////////////////////////////////////////////////////////////
// INITIALIZATION
////////////////////////////////////////////////////////////////////////////////
void setup()
{
// serial initialization
Serial.begin(115200);
// initialization of Arduino's pins
pinMode(statpin, OUTPUT); //not explained by Sparkfun
digitalWrite(statpin, LOW);
for (int i=0; i<2; i++)
{
pinMode(inApin[i], OUTPUT);
pinMode(inBpin[i], OUTPUT);
pinMode(pwmpin[i], OUTPUT);
}
// Initialize braked for motor
for (int i=0; i<2; i++)
{
digitalWrite(inApin[i], LOW);
digitalWrite(inBpin[i], LOW);
}
}
////////////////////////////////////////////////////////////////////////////////
///////////////////////////////// Main Loop ////////////////////////////////////
////////////////////////////////////////////////////////////////////////////////
void loop()
{
int sensorL,sensorR;
readSerialData(); // DataValueR & L contain the last order received (if there is no newer received, the last is kept)
// the previous order will still be used by the PID regulation MotorMotion Function
sensorR = analogRead(potR); // range 0-1024
sensorL = analogRead(potL); // range 0-1024
motorMotion(motRight,sensorR,DataValueR);
motorMotion(motLeft,sensorL,DataValueL);
}
////////////////////////////////////////////////////////////////////////////////
// Procedure: wait for complete trame
////////////////////////////////////////////////////////////////////////////////
void readSerialData()
{
byte Data[3]={
'0','0','0' };
// keep this function short, because the loop has to be short to keep the control over the motors
if (Serial.available()>2){
//parse the buffer : test if the byte is the first of the order "R"
Data[0]=Serial.read();
if (Data[0]=='L'){
Data[1]=Serial.read();
Data[2]=Serial.read();
// call the function that converts the hexa in decimal and that maps the range
DataValueR=NormalizeData(Data);
}
if (Data[0]=='R'){
Data[1]=Serial.read();
Data[2]=Serial.read();
// call the function that converts the hexa in decimal and maps the range
DataValueL=NormalizeData(Data);
}
}
if (Serial.available()>16) Serial.flush();
}
////////////////////////////////////////////////////////
void motorMotion(int numMot,int actualPos,int targetPos)
////////////////////////////////////////////////////////
{
int Tol=20; // no order to move will be sent to the motor if the target is close to the actual position
// this prevents short jittering moves
//could be a parameter read from a pot on an analogic pin
// the highest value, the calmest the simulator would be (less moves)
int gap;
int pwm;
int brakingDistance=30;
// security concern : targetPos has to be within the mechanically authorized range
targetPos=constrain(targetPos,potMini+brakingDistance,potMaxi-brakingDistance);
gap=abs(targetPos-actualPos);
if (gap<= Tol) {
motorOff(numMot); //too near to move
}
else {
// PID : calculates speed according to distance
pwm=195;
if (gap>50) pwm=215;
if (gap>75) pwm=235;
if (gap>100) pwm=255;
pwm=map(pwm, 0, 255, 0, pwmMax); //adjust the value according to pwmMax for mechanical debugging purpose !
// if motor is outside from the range, send motor back to the limit !
// go forward (up)
if ((actualPos<potMini) || (actualPos<targetPos)) motorGo(numMot, FW, pwm);
// go reverse (down)
if ((actualPos>potMaxi) || (actualPos>targetPos)) motorGo(numMot, RV, pwm);
}
}
////////////////////////////////////////////////////////////////////////////////
void motorOff(int motor){ //Brake Ground : free wheel actually
////////////////////////////////////////////////////////////////////////////////
digitalWrite(inApin[motor], LOW);
digitalWrite(inBpin[motor], LOW);
analogWrite(pwmpin[motor], 0);
}
////////////////////////////////////////////////////////////////////////////////
void motorOffBraked(int motor){ // "brake VCC" : short-circuit inducing electromagnetic brake
////////////////////////////////////////////////////////////////////////////////
digitalWrite(inApin[motor], HIGH);
digitalWrite(inBpin[motor], HIGH);
analogWrite(pwmpin[motor], 0);
}
////////////////////////////////////////////////////////////////////////////////
void motorGo(uint8_t motor, uint8_t direct, uint8_t pwm)
////////////////////////////////////////////////////////////////////////////////
{
if (motor <= 1)
{
if (direct <=4)
{
// Set inA[motor]
if (direct <=1)
digitalWrite(inApin[motor], HIGH);
else
digitalWrite(inApin[motor], LOW);
// Set inB[motor]
if ((direct==0)||(direct==2))
digitalWrite(inBpin[motor], HIGH);
else
digitalWrite(inBpin[motor], LOW);
analogWrite(pwmpin[motor], pwm);
}
}
}
////////////////////////////////////////////////////////////////////////////////
void motorDrive(uint8_t motor, uint8_t direct, uint8_t pwm)
////////////////////////////////////////////////////////////////////////////////
{
// more readable function than Jim's (for educational purpose)
// but 50 octets heavier -> unused
if (motor <= 1 && direct <=4)
{
switch (direct) {
case 0: //electromagnetic brake : brake VCC
digitalWrite(inApin[motor], HIGH);
digitalWrite(inBpin[motor], HIGH);
break;
case 3: //Brake Ground (free wheel)
digitalWrite(inApin[motor], LOW);
digitalWrite(inBpin[motor], LOW);
break;
case 1: // forward : beware it's depending on your hardware wiring
digitalWrite(inApin[motor], HIGH);
digitalWrite(inBpin[motor], LOW);
break;
case 2: // Reverse : beware it's depending on your hardware wiring
digitalWrite(inApin[motor], LOW);
digitalWrite(inBpin[motor], HIGH);
break;
}
analogWrite(pwmpin[motor], pwm);
}
}
////////////////////////////////////////////////////////////////////////////////
// testPot
////////////////////////////////////////////////////////////////////////////////
void testPot(){
Serial.print(analogRead(potL));
Serial.print(";");
Serial.println(analogRead(potR));
delay(250);
}
////////////////////////////////////////////////////////////////////////////////
void testpulse(){
int pw=120;
while (true){
motorGo(motLeft, FW, pw);
delay(250);
motorOff(motLeft);
delay(250);
motorGo(motLeft, RV, pw);
delay(250);
motorOff(motLeft);
delay(500);
motorGo(motRight, FW, pw);
delay(250);
motorOff(motRight);
delay(250);
motorGo(motRight, RV, pw);
delay(250);
motorOff(motRight);
Serial.println("testpulse pwm:80");
delay(500);
}
}
////////////////////////////////////////////////////////////////////////////////
// Function: convert Hex to Dec
////////////////////////////////////////////////////////////////////////////////
int NormalizeData(byte x[3])
////////////////////////////////////////////////////////////////////////////////
{
int result;
if ((x[2]==13) || (x[2]=='R') || (x[2]=='L')) //only a LSB and Carrier Return or 'L' or 'R' in case of value below 16 (ie one CHAR and not 2)
{
x[2]=x[1]; //move MSB to LSB
x[1]='0'; //clear MSB
}
for (int i=1; i<3; i++)
{
if (x[i]>47 && x[i]<58 ){//for x0 to x9
x[i]=x[i]-48;
}
if (x[i]>64 && x[i]<71 ){//for xA to xF
x[i]=(x[i]-65)+10;
}
}
// map the range from Xsim (0 <-> 255) to the mechanically authorized range (potMini <-> potMaxi)
result=map((x[1]*16+x[2]),0,255,potMini,potMaxi);
return result;
}

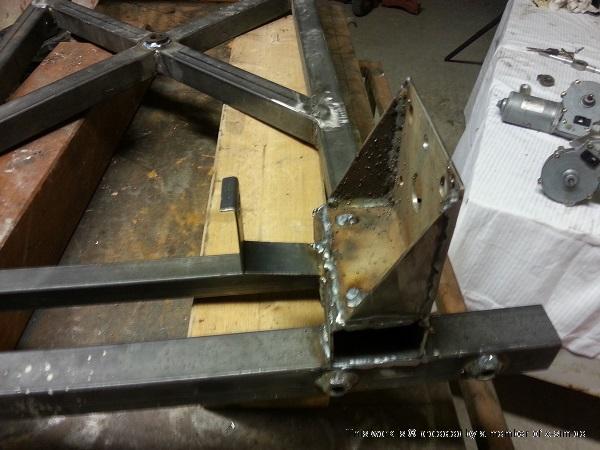

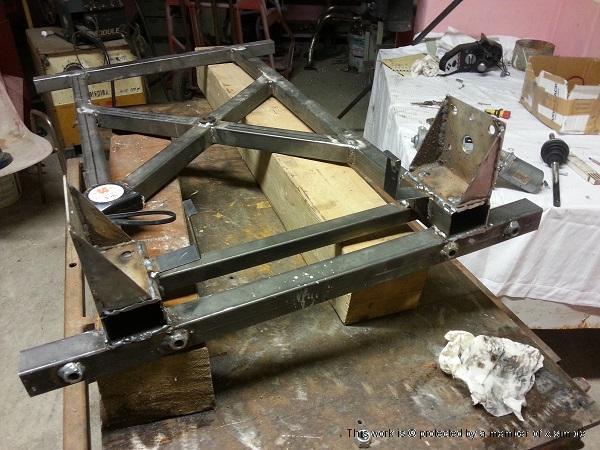

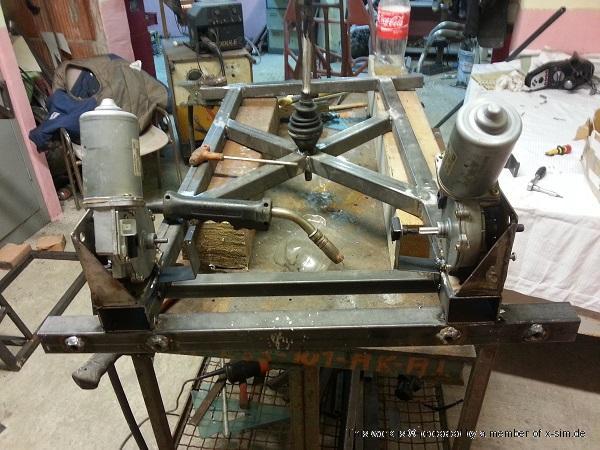

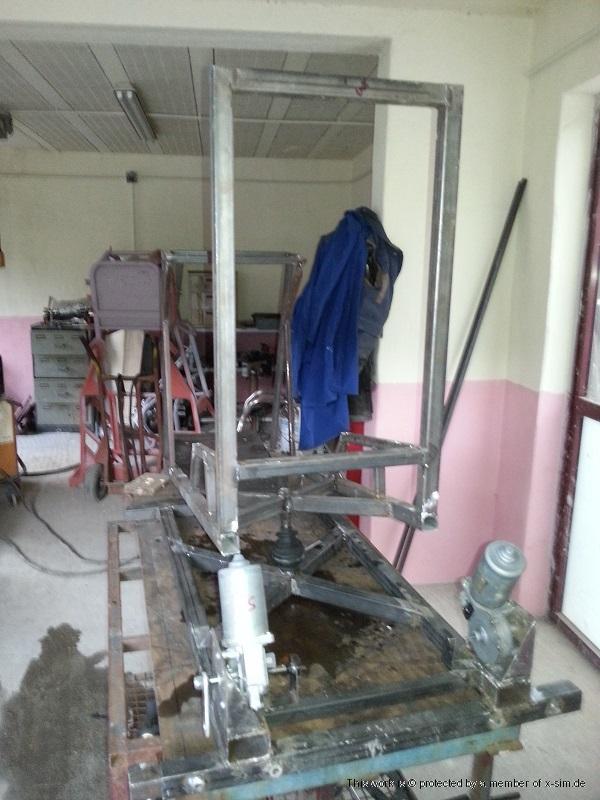

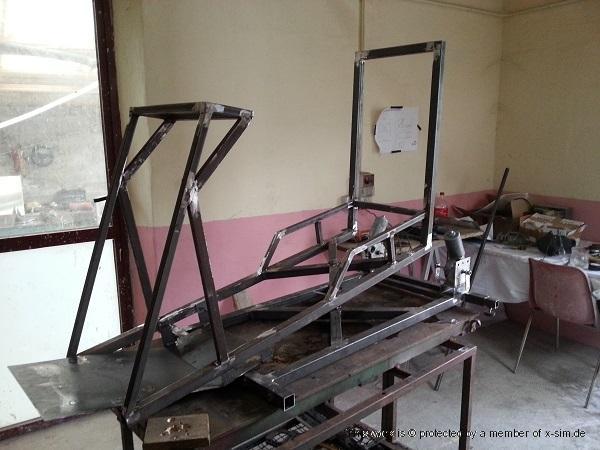

Next, I created the engine mounts on the frame

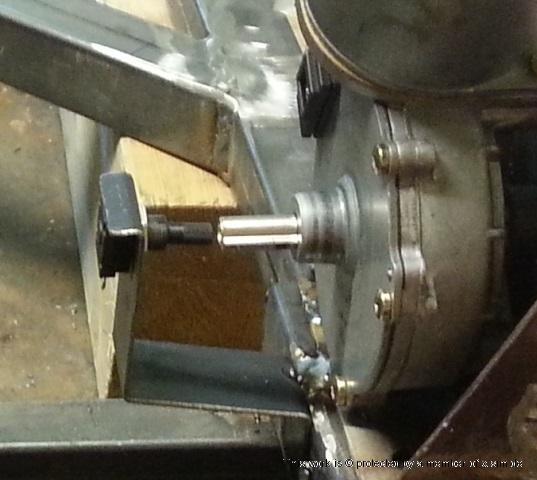

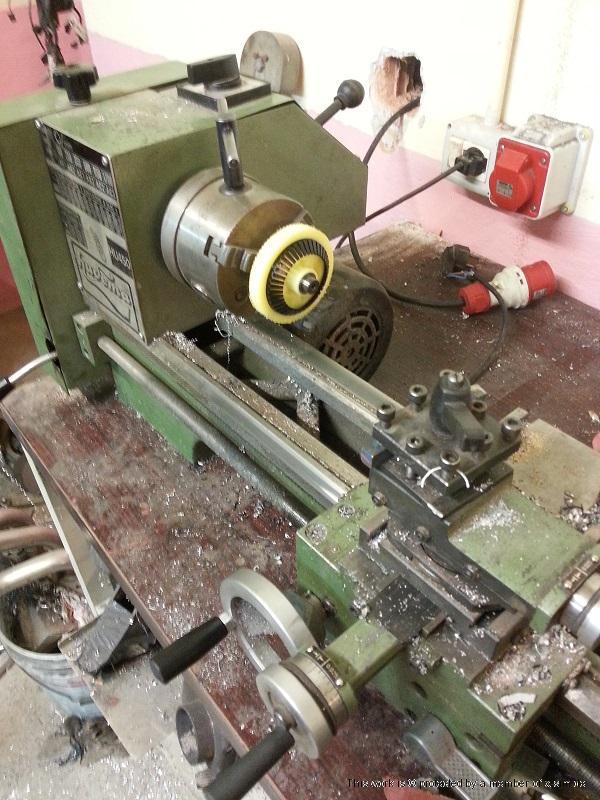

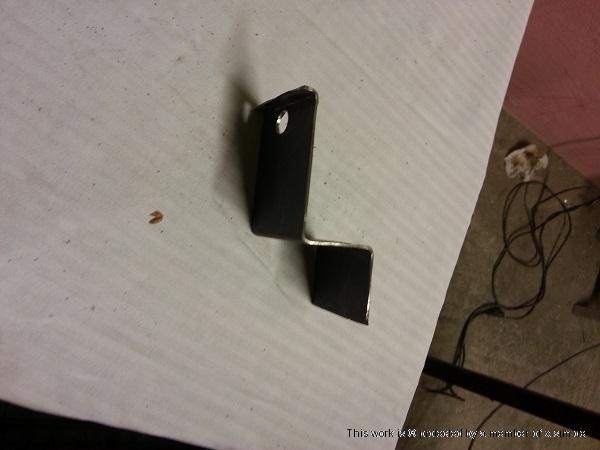

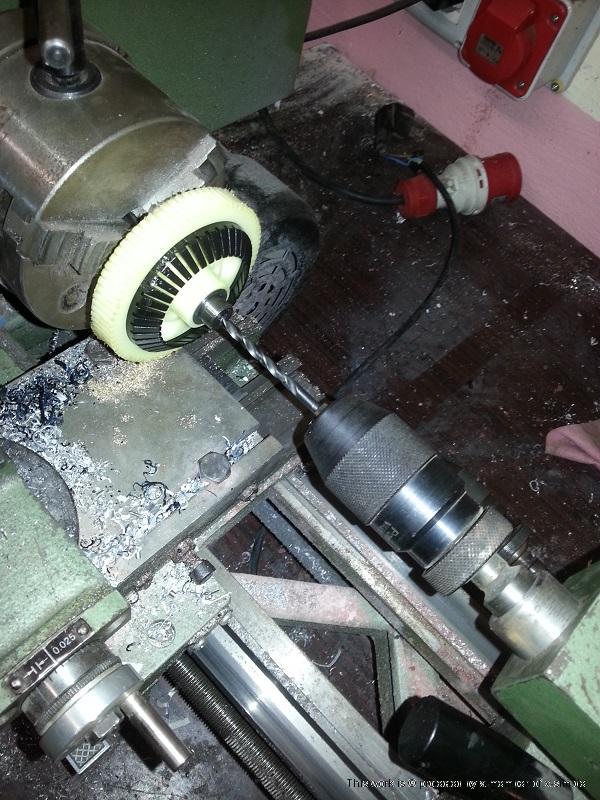

It remains to connect the linear potentiometers to their respective drive shafts. I created a connection shaft 6mm, connecting it to the motor shaft with M5x0.8 thread. I added Loctite to have more resistance to unscrewing. Fixed the connecting shaft, I have created a bracket for supporting the linear potentiometer, and connect it, with "firm metal cable 6mm", in axis with the motor shaft.
Many details are missing, unfortunately a lot of pictures were lost. But the end result is remarkable.

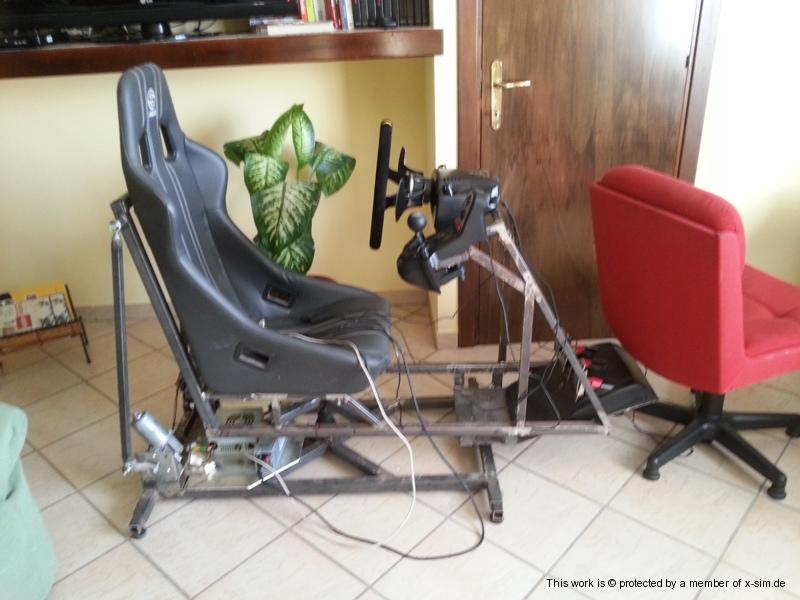

Connected all. The simulator is ready for use.
1°test
https://www.youtube.com/embed/rMvdPpXldcU
after arranging and painted the frame
2°test (my father)
https://www.youtube.com/watch?v=_V7qReoXTrI
