Simu 2DOF LEGO

[TomKlash]

Hello everyone,

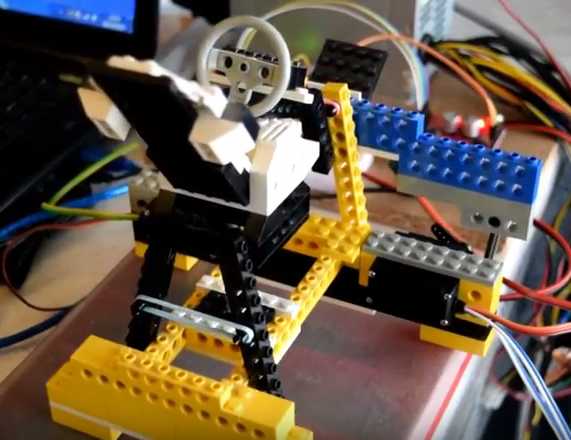

This is my 2DOF simulation LEGO base that allows me to get into the world of dynamic simulators and apprehend the prog Arduino and X-Sim setting softs.

SIMU LEGO 2DOF.jpg (28.91 KiB) Viewed 37090 times

https://www.youtube.com/watch?v=Ek_kpJc214s

[TomKlash]

I present a new alternative to my project: A G-Seat LEGO ...
This allows me to continue learning before I started for real.

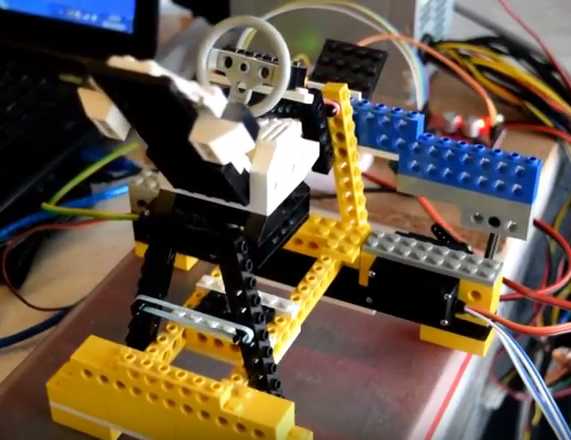

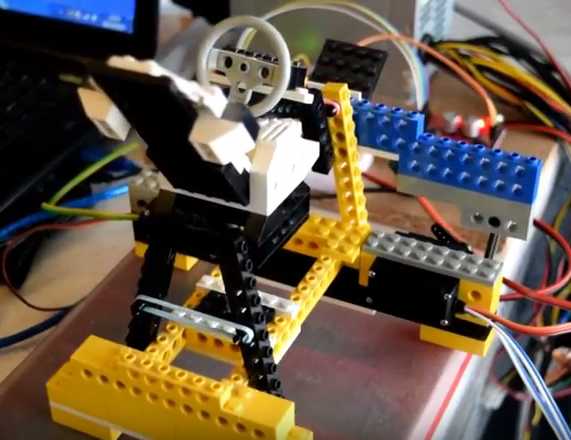

Capture d’écran 2016-11-10 à 00.40.24.png (1.02 MiB) Viewed 36897 times

https://www.youtube.com/watch?v=iV9LvFznbbU


PS : Is it possible to put an iframe youtube video on this forum ? Doesn't work for me...

[mcherni]

Hi Tom,
I am just starting out in this xsim software and am interested in getting a test rig much like yours up and running,before i embark on designing a full size rig.
Could you guide me through the xsim software setup to connect to the arduino,and also the sketch required for the arduino.
i would like to start with 2dof then add a 3rd for rise and fall then a 4th for traction break away. Is the sketch for the arduino expandable?

Is there already a decent tutorial for Newbie's for this project?

Thanks in advance

Mcherni

[TomKlash]

You need to read this topic :

viewtopic.php?f=36&t=1617

You know it ?

I think we can modify the Arduino code to adapt it to 3 or 4 axis. I must to do this for my futur simulator. For the moment i d'un only on 2 axis prototype...

Envoyé de mon FRD-L09 en utilisant Tapatalk

[mcherni]

Yeah i do know it. thanks

Will this sketch run rc servo directly or have you altered it?

just read through the sketch. I'm going to have to do the arduino tutorials again.

As i recall i used to call servo.h

Sorry for slow response
