Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby mreiner » Tue 9. Jul 2013, 15:25

Hi together

I think I got my first PC Racing Wheel more than 10 years ago, and since then I'm always trying to improve the immersion while racing.
So finally some years ago I then got myself a Playseat Evolution, which was quite good, but I still had some problems with it.
First of all the wheel-stand was always in my way between my knees and I also never really managed to adjust all parts to the size of my body so that it felt right.
So now after moving to a new house where I have enough space, I decided to completely build my own simulator. And while searching through the net for some design ideas, I suddenly came to this site, and thought: Ok, so let's make it a motion simulator.
And of course I want to share my experience here with you.

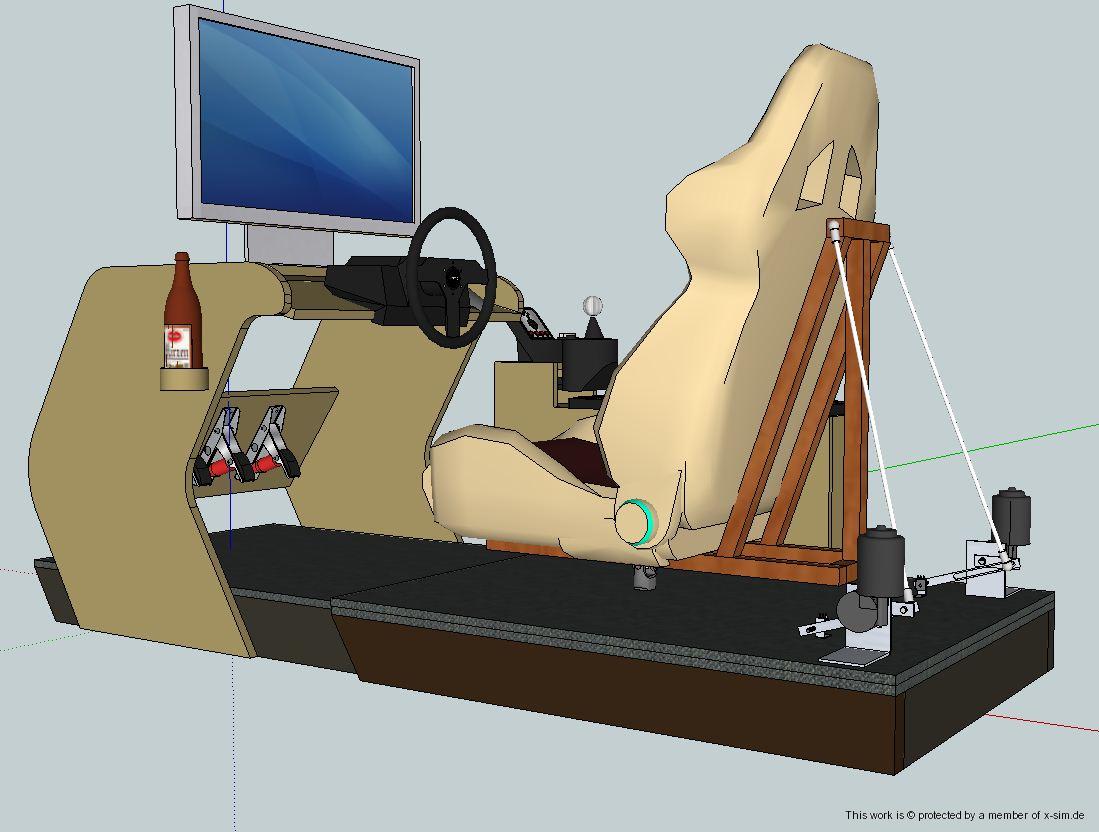

The base is highly inspired by the plans of the Ricmotech RS1, adapted to my needs, and powered by two 12V wiper motors:
1801

I finished now the planing, and collected all the parts, that I think I will need, which are:

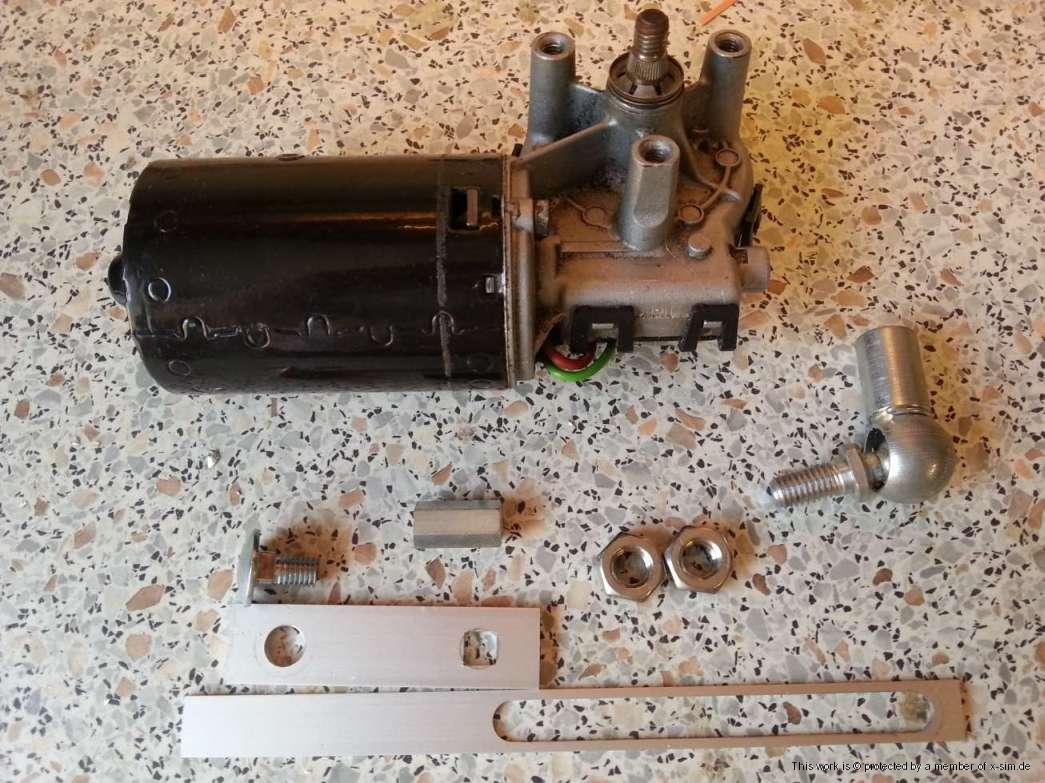

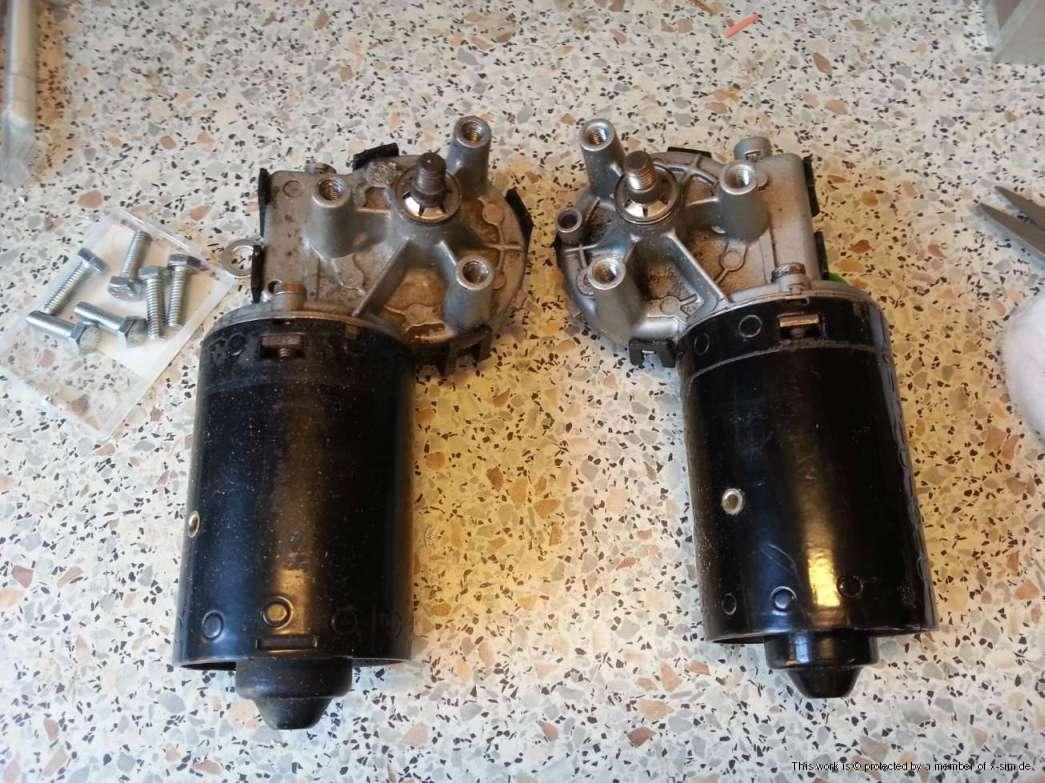

- 2 Wiper Motors
1804

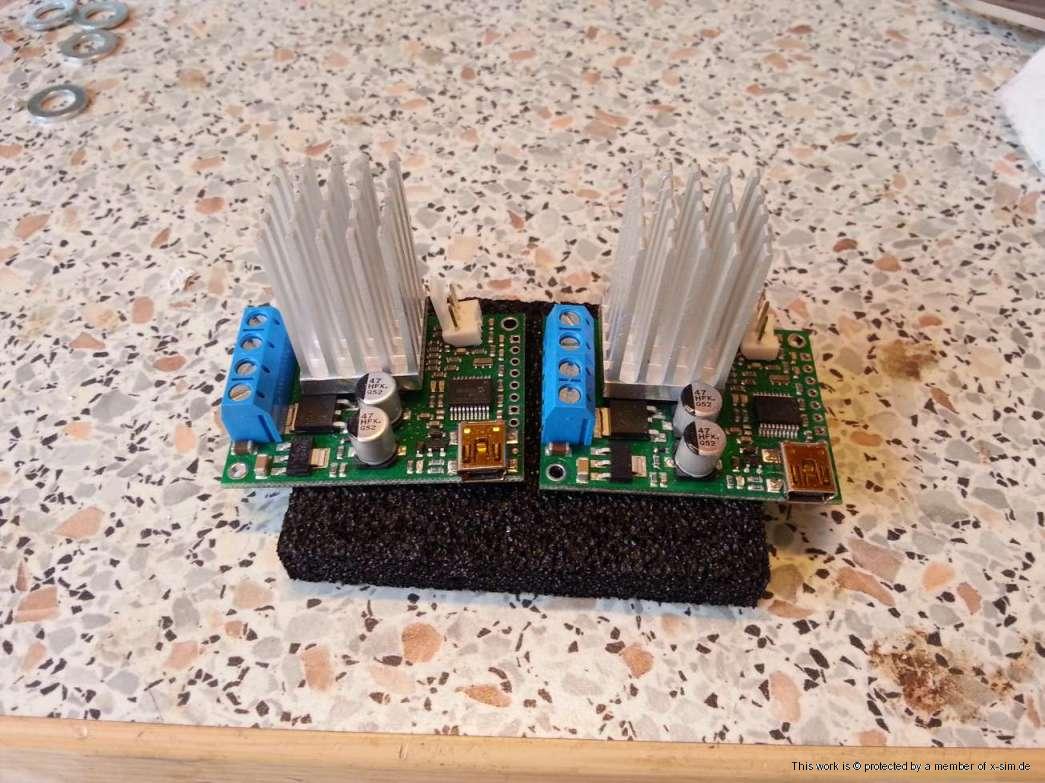

- 2 Pololu JRK 12v12
1803
- 2 10k Pots

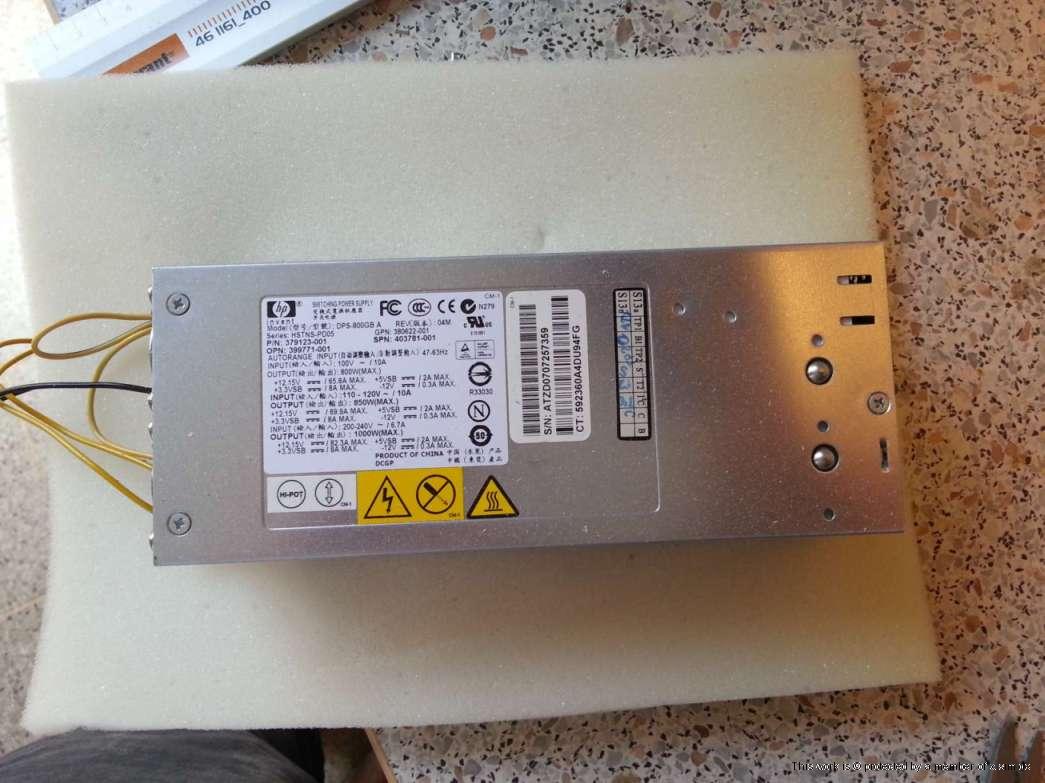

- an used 1000W HP Server Power-Supply
1807

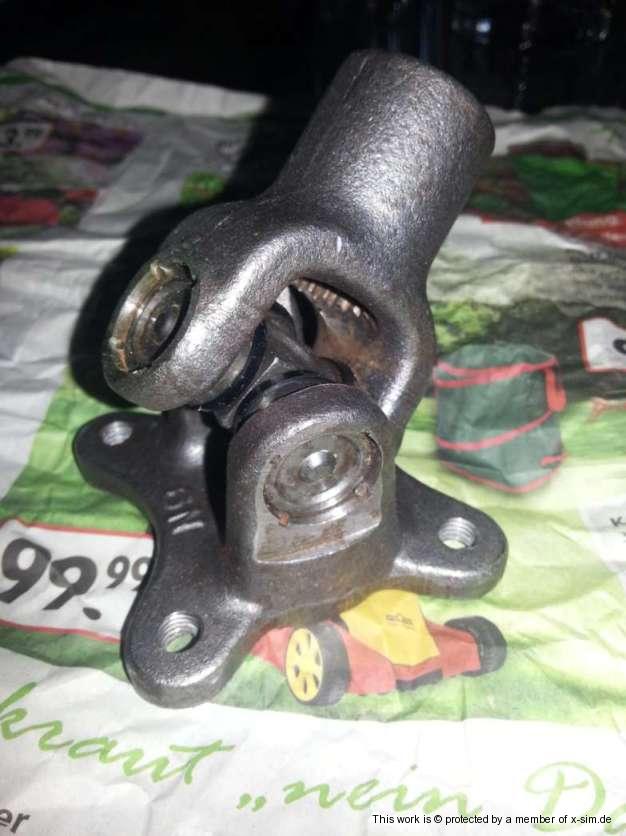

- Universal Joint
1802

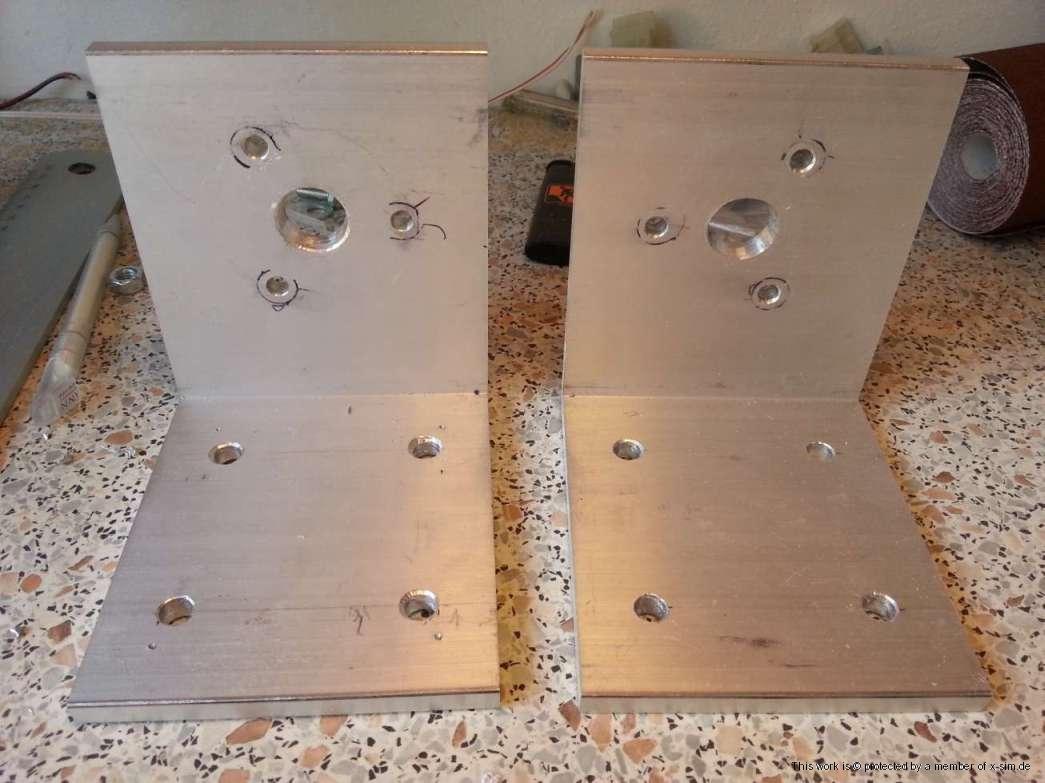

- Aluminium parts for building Motor arms and fixing the motors to the platform.
1806
1805
- rods, ball joints, screws and other usual hardware parts.
- wood for building the base platform
- two bass shakers + amplifier - one will be placed under the seat, and one in front to the pedal base.
- As input I will use my good old G25 with reverse mounted pedals
- For the start I will use the seat of the playseat. I plan to buy a new one soon, but have not decided which one it will be.

So until now, I have built the rear part of the base unit and mounted the motors and pots to it, to make a first test run with the motors. On an AI run of GTR2 the motion already looks quite promising. (Pixs will follow)

The next step will be to build the base for the seat, mount it to the platform and see how it's moving. After that I can make the final measurement for the front part (wheel and pedal base) to perfectly fit my body.

So that's it for now, but more to come soon...hopefully


Update 15.07.2013

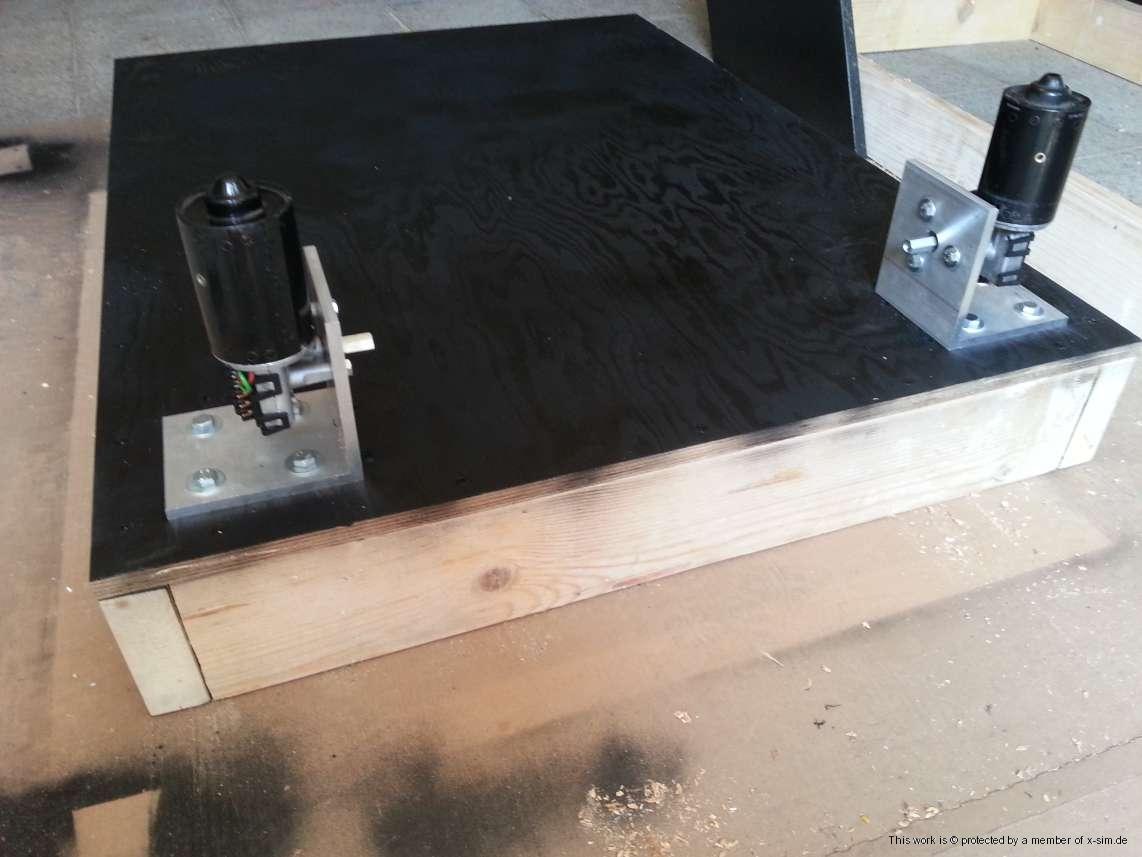

I managed to get the motors isolated (thanks Mat for your links) and mounted them again to the platform. Had to change the position, as at first they were to wide.
1839

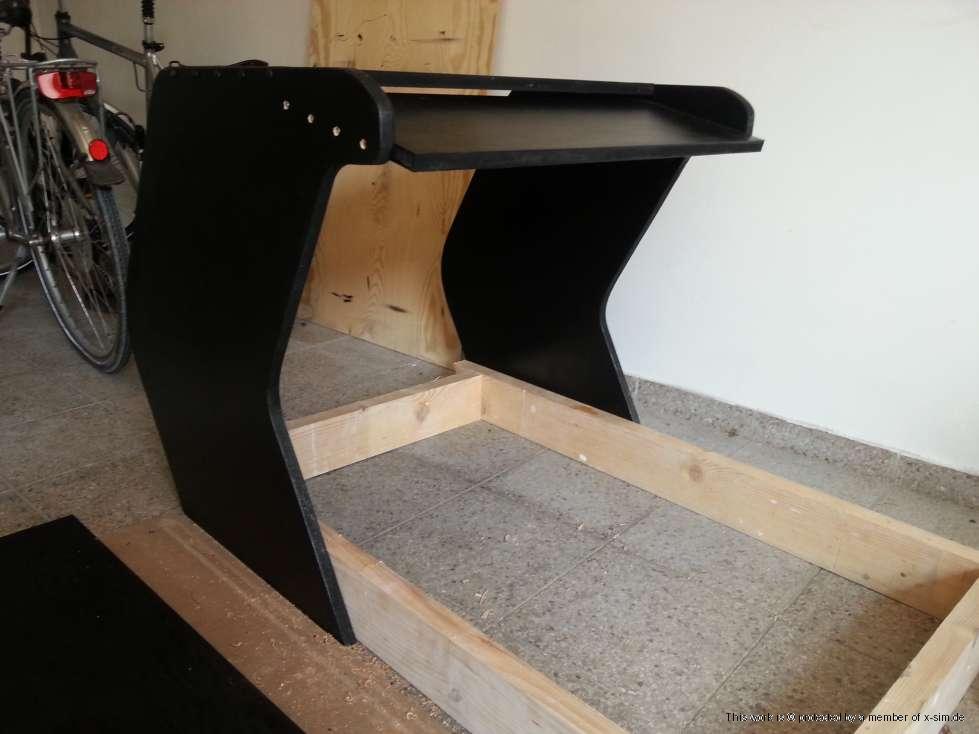

Meanwhile started to build the front unit:
1836

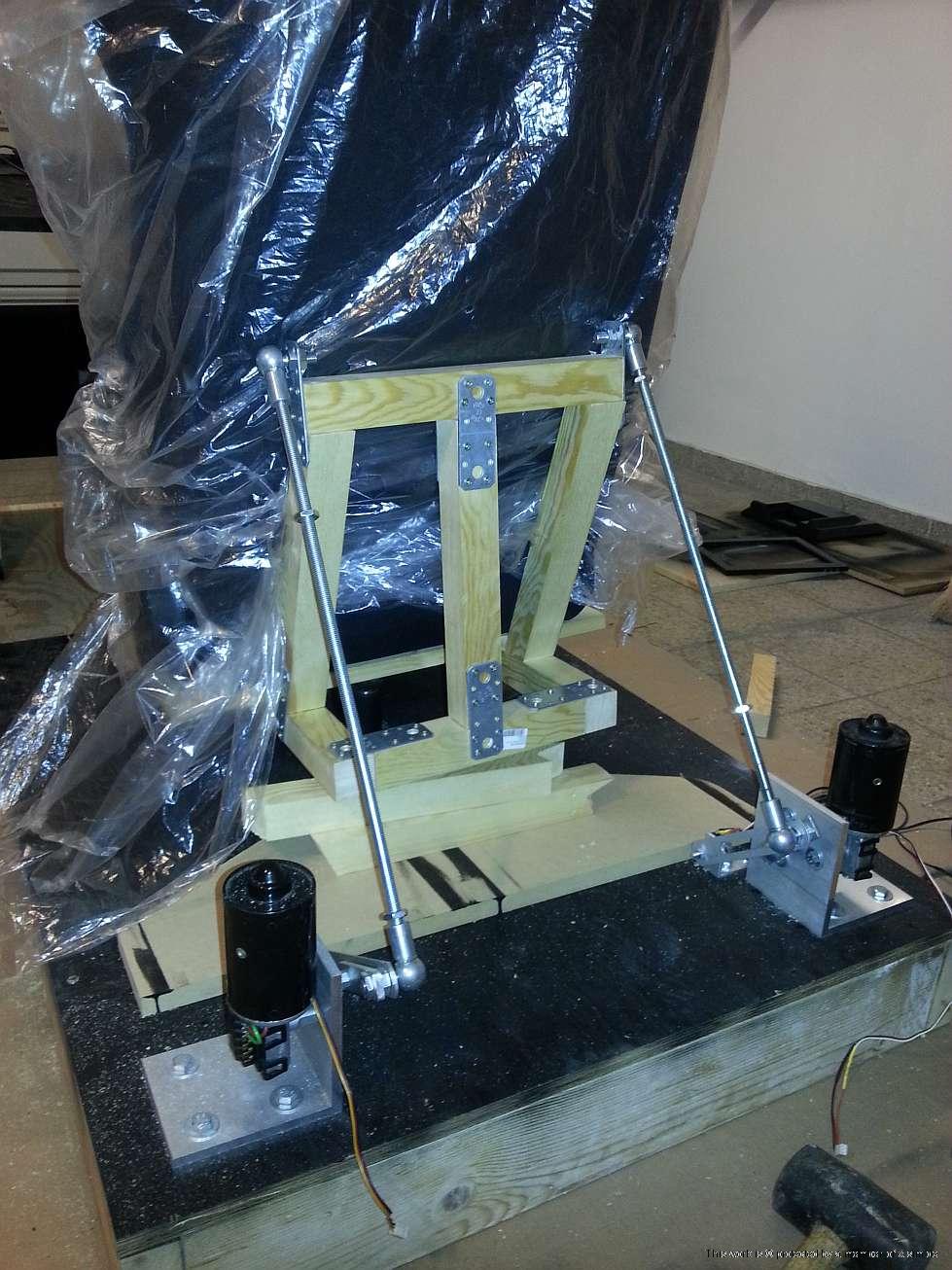

I also built the seat base, an mounted it for some tests, but I'm not fully confident at the moment. The cuttings are not as precise, as I want them (my fault), and over all I'm afraid it's too heavy, so I'm thinking of maybe changing to aluminium for this part as well.
1837


I also realized, that at the moment the whole seat construction is too high, so I have to shorten the U-Joint mount.
But as I decided to go for a new seat, which will hopefully arrive within the next days, I'll wait for it to get the correct measurements.

And then it's time for the first test-run.
Last edited by mreiner on Mon 15. Jul 2013, 09:09, edited 1 time in total.
mreiner

Posts: 27
Images: 22
Joined: Wed 15. May 2013, 08:53
Location: Lower Austria / Europe
Has thanked: 1 time
Been thanked: 15 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby RacingMat » Wed 10. Jul 2013, 12:55

That looks promising ! I'm eager to see more ...

From my experience, I'm pretty sure that your aluminium motor support will need reinforcement ! if not they will move and ultimately aluminium may brake under "metal fatigue".

Could you please tell me how much you bought your universal joint ?

Mat
2 DOF playseat : arduino, motomonster, 12V truck wiper motors
http://www.x-sim.de/forum/viewtopic.php?f=37&t=943
User avatar
RacingMat
X-Sim Stage 2 edition

Posts: 453
Images: 147
Joined: Wed 20. Feb 2013, 21:30
Location: Marseille - FRANCE
Has thanked: 4 times
Been thanked: 121 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby roidal » Wed 10. Jul 2013, 15:31

That looks really very good !
Last edited by roidal on Sun 4. Aug 2013, 15:16, edited 1 time in total.
roidal

Posts: 1
Joined: Tue 7. May 2013, 20:02
Has thanked: 1 time
Been thanked: 0 time

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby mreiner » Wed 10. Jul 2013, 23:35

I got the U-Joint on ebay for 30€ (incl. shipping). It's from a YAMAHA XJ 900.

But currently I'm facing some problems with the motors, as they have current on the housing. So I'm now trying to get them isolated.
Hopefully I'm able to make some overall progress during the weekend.
mreiner

Posts: 27
Images: 22
Joined: Wed 15. May 2013, 08:53
Location: Lower Austria / Europe
Has thanked: 1 time
Been thanked: 15 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby RacingMat » Thu 11. Jul 2013, 19:22

2 DOF playseat : arduino, motomonster, 12V truck wiper motors
http://www.x-sim.de/forum/viewtopic.php?f=37&t=943
User avatar
RacingMat
X-Sim Stage 2 edition

Posts: 453
Images: 147
Joined: Wed 20. Feb 2013, 21:30
Location: Marseille - FRANCE
Has thanked: 4 times
Been thanked: 121 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby mreiner » Wed 17. Jul 2013, 09:01

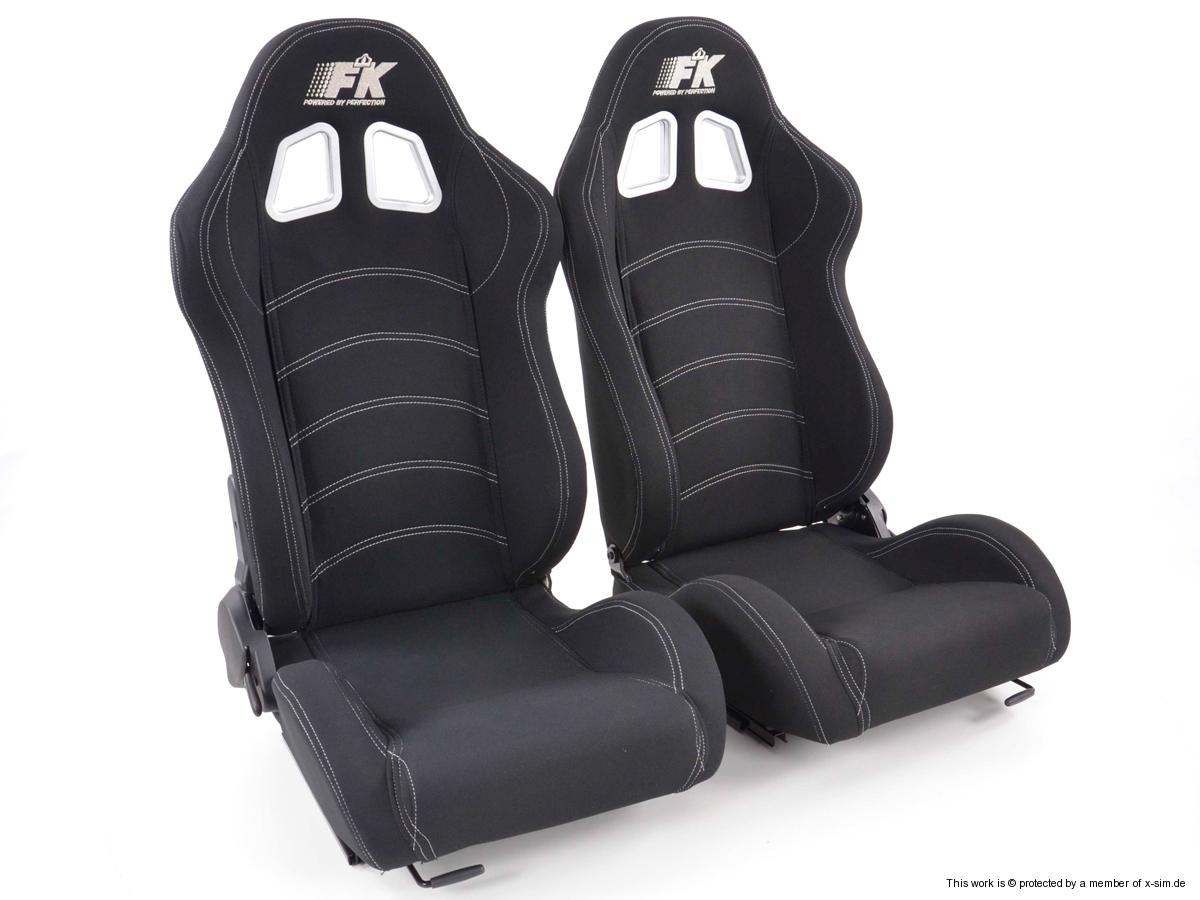

received the new seat(s) yesterday
1862
Look and feel is really good for the price (~150€ for the pair - one is for a friend who is going to build his own sim).
I got them from http://www.fk-shop.de/

So with the final seat I can now take the correct measurements for the seat height and also adjust the front-stand with wheel and pedals.
mreiner

Posts: 27
Images: 22
Joined: Wed 15. May 2013, 08:53
Location: Lower Austria / Europe
Has thanked: 1 time
Been thanked: 15 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby tommy6 » Tue 23. Jul 2013, 00:31

Sieht sehr gut aus ... :!: Weiter so toll gemachte Arbeit :D
tommy6

Posts: 59
Images: 51
Joined: Sun 29. Jul 2012, 01:14
Location: Germany
Has thanked: 1 time
Been thanked: 5 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby mreiner » Wed 24. Jul 2013, 14:00

Good news here.

During the weekend I assembled all parts together and mounted the Wheel and Pedals and went for the first TestDrive in GTR2.
At first I had some problems with my Pololus as they were disconnecting all the time. But after I found out, that one pin of the USB-Connector was a little bend out of shape, and I carefully corrected that, everything was working perfect.
The movement feels really good, although I still have to do some adjustments on the profile. - A video will follow soon.

But still I decided to make some final adjustments to the construction:

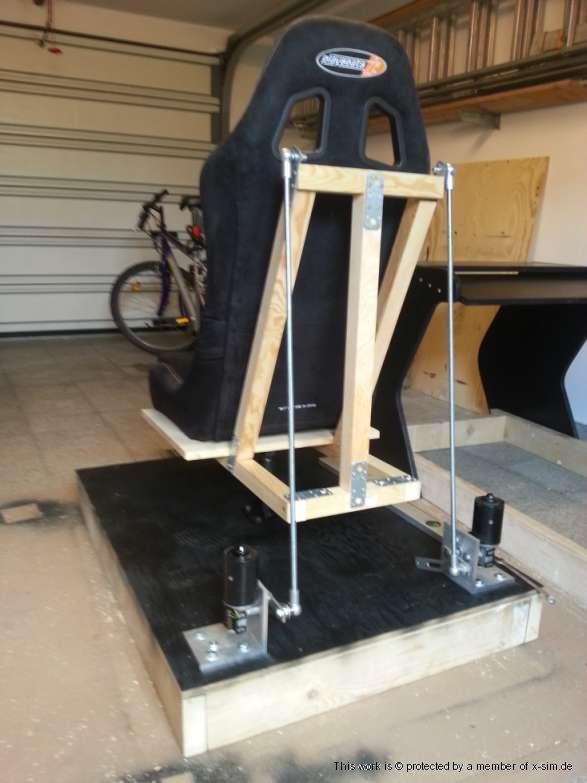

First I lowered the back side construction of the seat mount, for better looks and to have more space in the back for the Electronic components:
1891

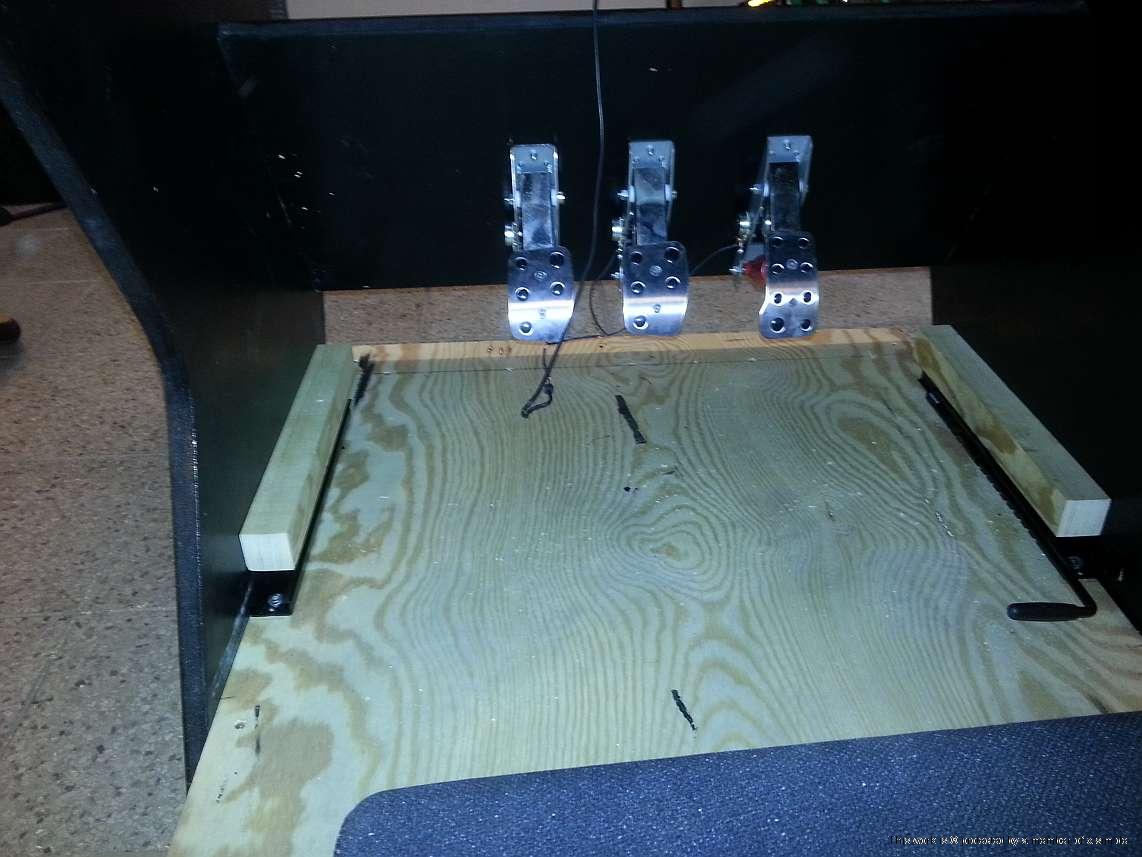

And second I mounted the seat sliders to the front unit, to have it adjustable in size:
1890

TODO:
- built a nice box for the electronic components.
I'm currently planing to fit it inside the rear of the base plattfrom with a nice cover of plexiglas.

- fit some fans to the motors, as the get pretty hot after some time. I plan on building some kind of housing around the motors and mechanical parts.

- do the final painting, and other cool stuff:

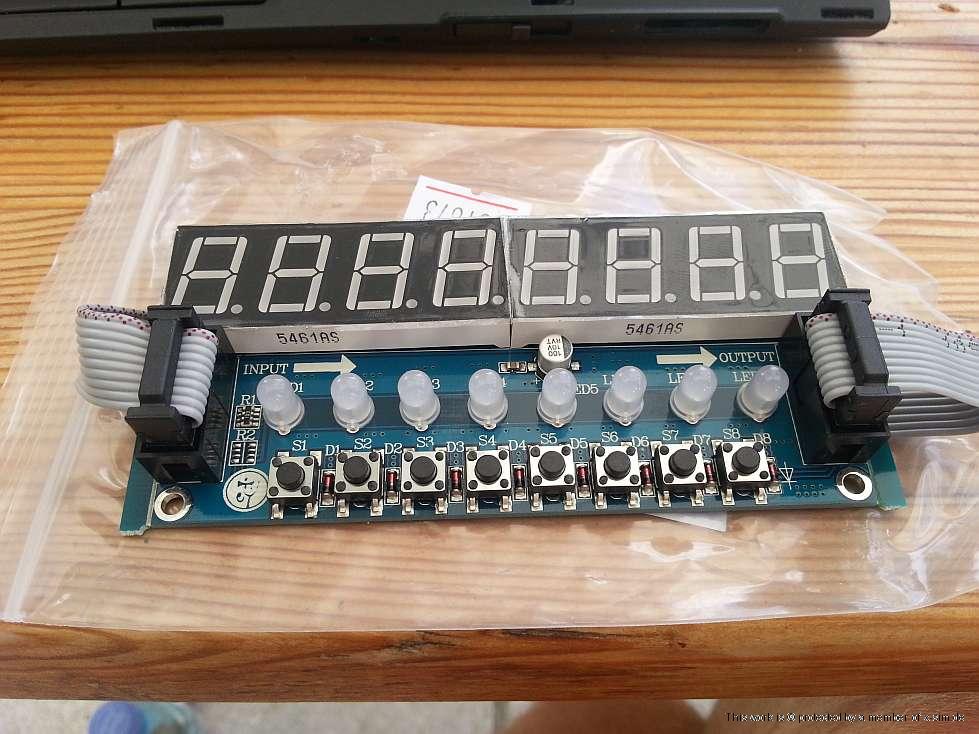

after waiting for over 2 month, I finally received one of these, which will be mounted onto the wheel, controlled by an ardunino bord.
1893

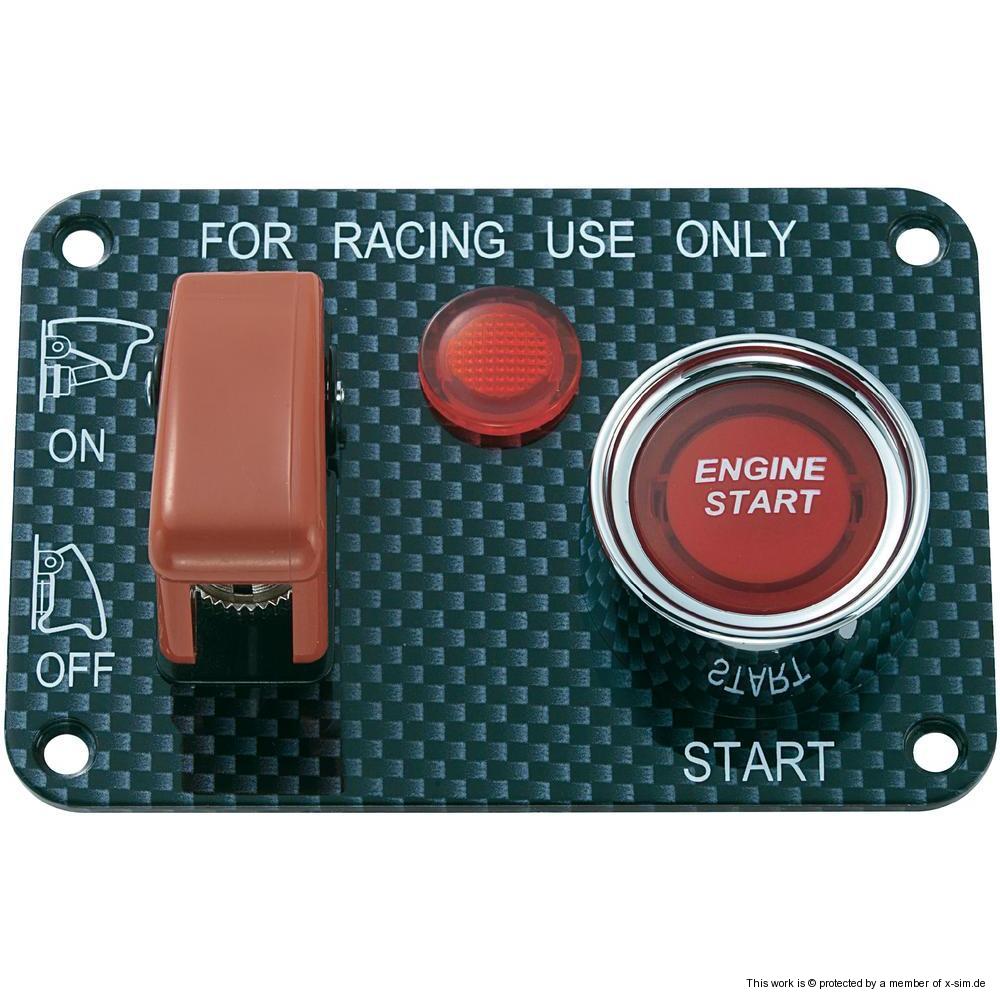

I also got myself this cool part, which will be integrated into a Button-Box I'm currently planning:
1892
mreiner

Posts: 27
Images: 22
Joined: Wed 15. May 2013, 08:53
Location: Lower Austria / Europe
Has thanked: 1 time
Been thanked: 15 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby mreiner » Tue 13. Aug 2013, 08:40

Hi together.

Thanks so far for your comments.
After some pretty hot days here in Austria, where I was not really keen on working on the sim, I now made again a little progress.
The movement with the lower back is still feeling really good - also made some adjustments to the profile and pololu configuration for a smoother movement.
The only problem I realized after some longer test runs is, that the motors get way too hot, and even start smelling. So I had to find a way to cool them down.

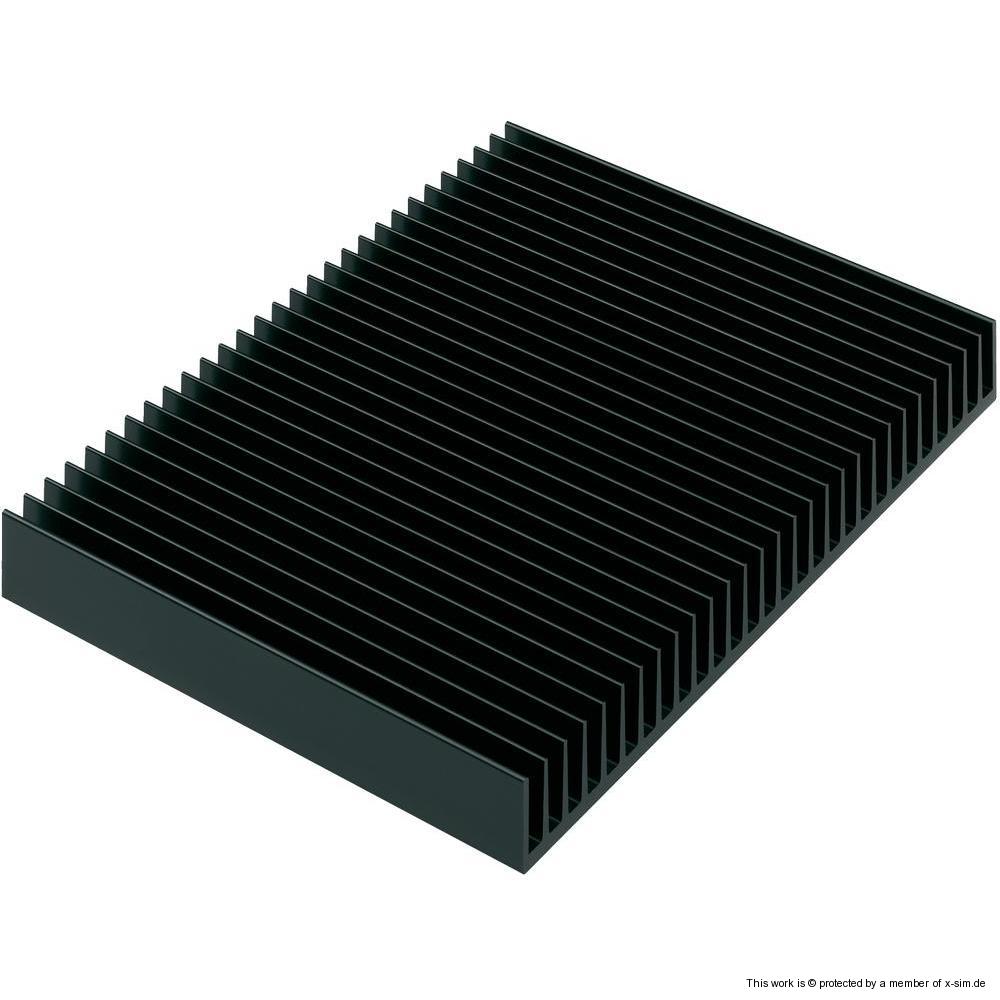

So I got myself such a heat sink:
1978

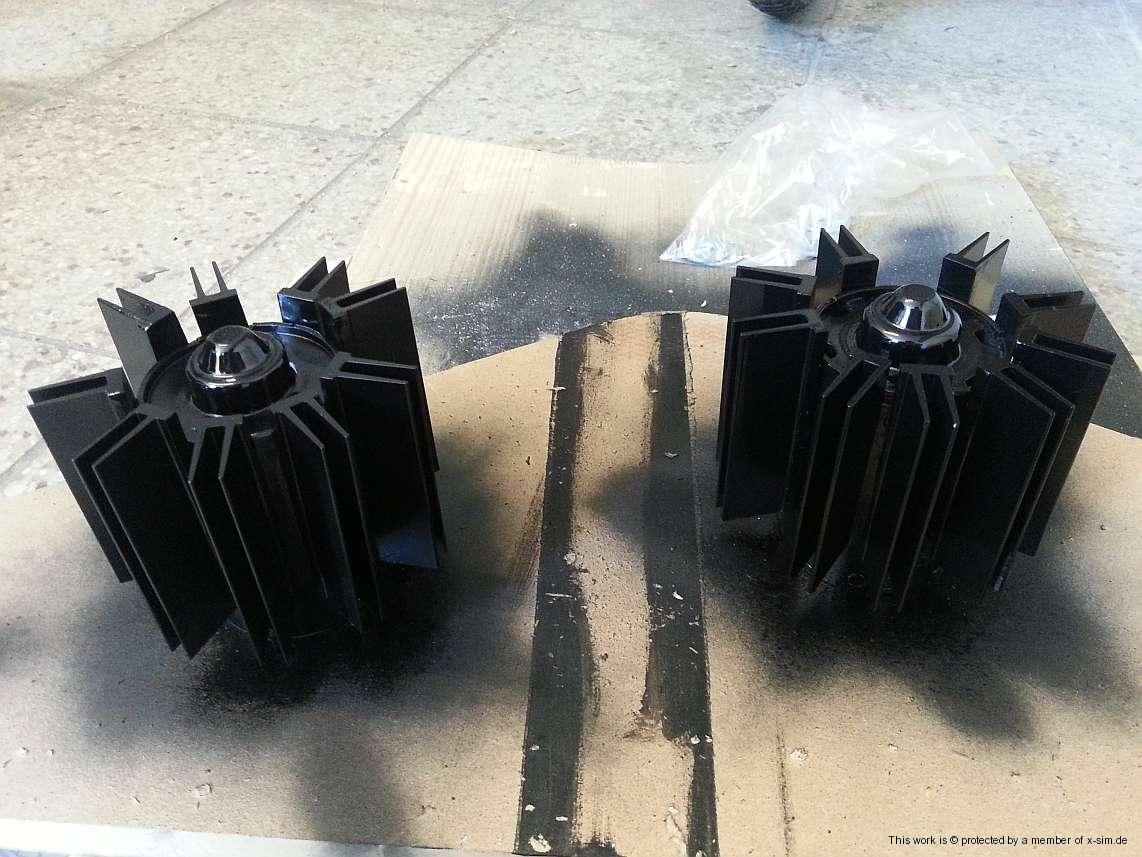

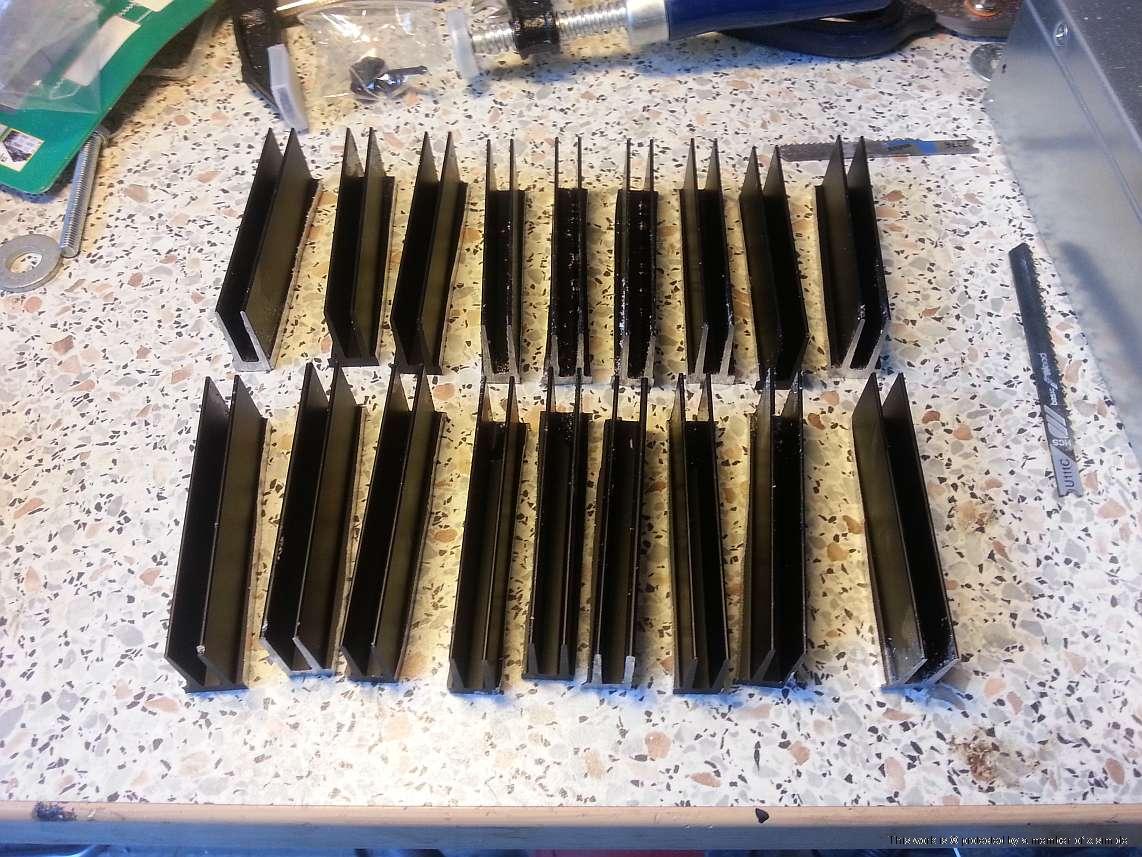

and cut it into smaller parts, so I can glue it to the motor housing with a thermal adhesive:
1975

what finally looks like this:
1977

additionally I will put a fan on each motor, what will hopefully then be enough to keep them cool.

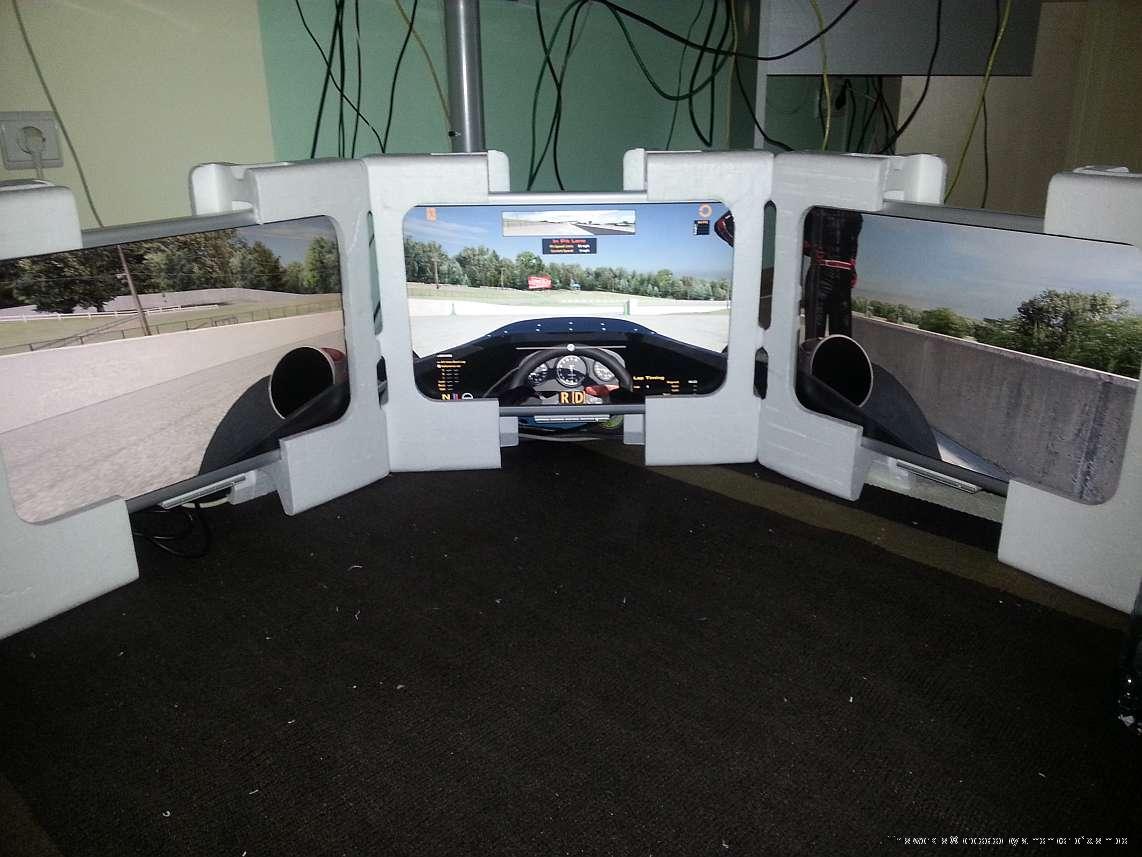

I also got myself 3 22" Displays from ebay (24€ each), where I'm currently building the mounting support for them.
1976

So by now mechanically everything seems to be fine, so I'm going to put all the electronic parts and final wiring in place now.
mreiner

Posts: 27
Images: 22
Joined: Wed 15. May 2013, 08:53
Location: Lower Austria / Europe
Has thanked: 1 time
Been thanked: 15 times

Re: Project "Wackelsitz" - 2DOF Wipermotor Sim

Postby RacingMat » Tue 13. Aug 2013, 09:13

Hi !

Your heat sinkers look good on your motor ;)
I have seen people drilling holes into the housing itself (after dismantling)

-> Just avoid letting them getting too hot : because the heat will demagnetise your magnets and your motors will loose power...

Have you measured the current intensity ? mean / max ?
it'd be insteresting to know

good luck :)
2 DOF playseat : arduino, motomonster, 12V truck wiper motors
http://www.x-sim.de/forum/viewtopic.php?f=37&t=943
User avatar
RacingMat
X-Sim Stage 2 edition

Posts: 453
Images: 147
Joined: Wed 20. Feb 2013, 21:30
Location: Marseille - FRANCE
Has thanked: 4 times
Been thanked: 121 times
