Sim Project - 2DOF K8055+Sabertooth 2x12 -(SOLD)

Postby kevin123 » Sat 1. Dec 2012, 15:32

1989

To start I do thanks to the communities of simulators from which I was inspired to build my sim ;)

IMPORTANT

Please do not send me PM or Email for more assistance if you want help, you can write in my post where they can read all including me and other users of the forum so you can help other people in your auto that have the same problem. Thanks ;)

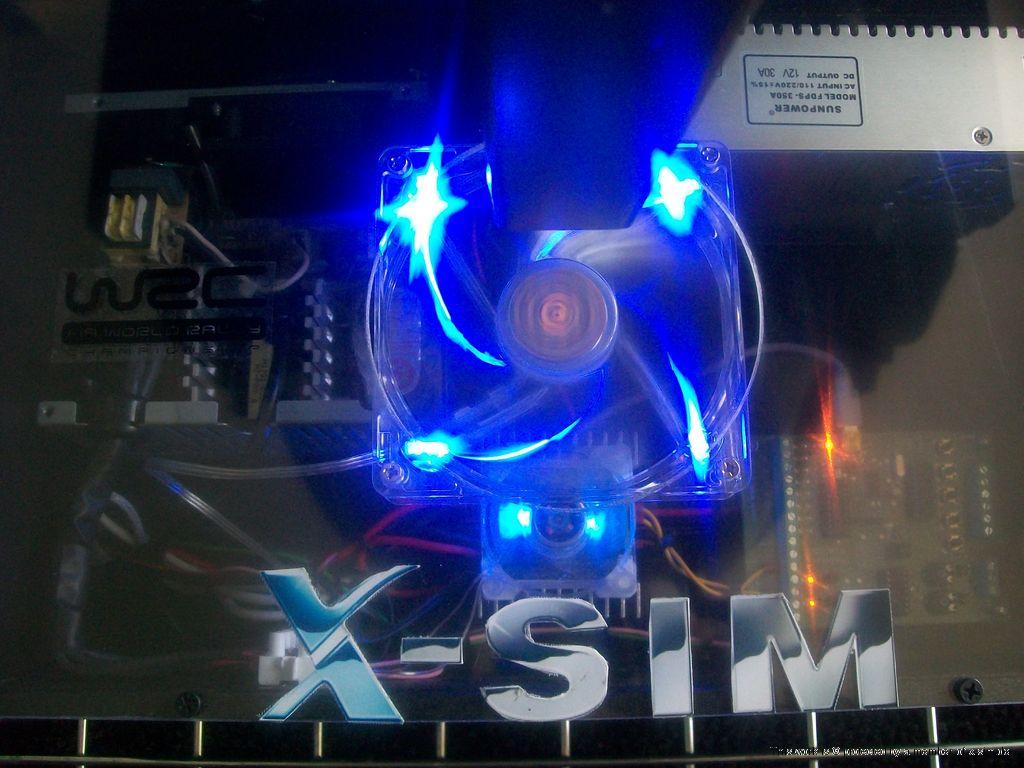

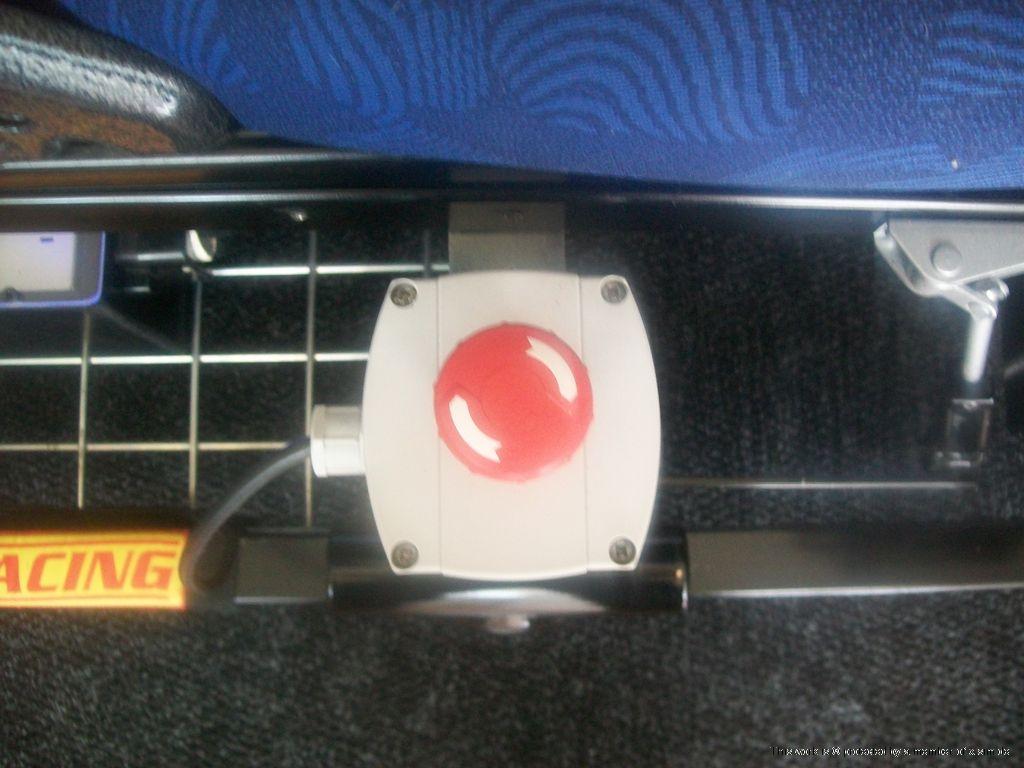

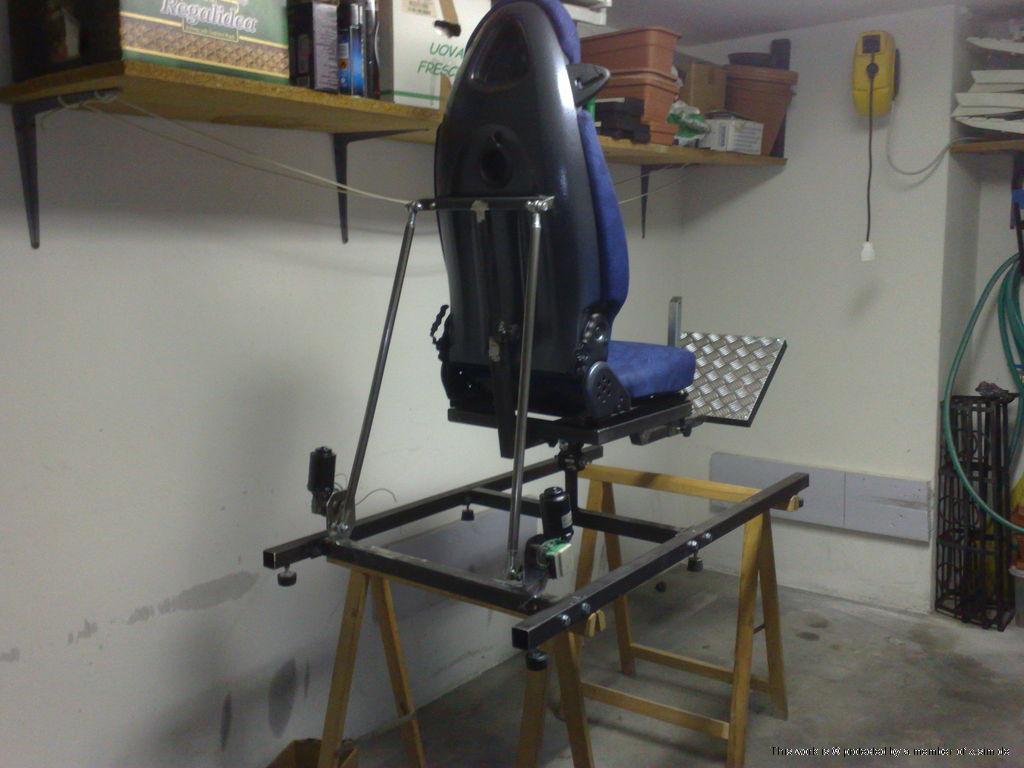

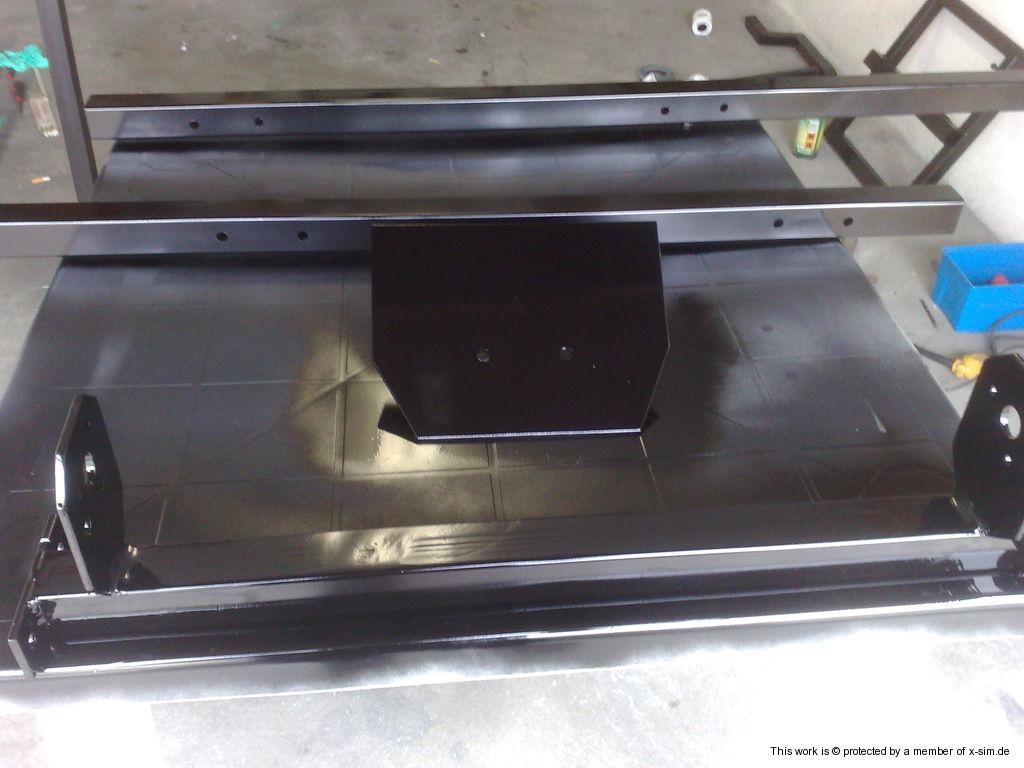

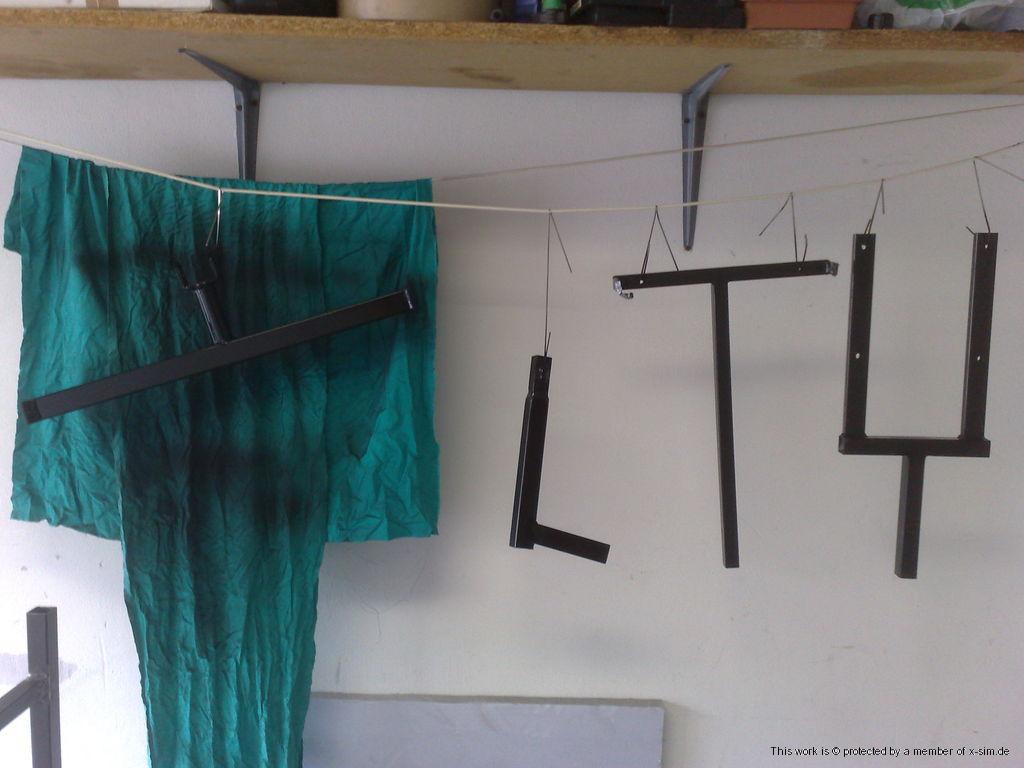

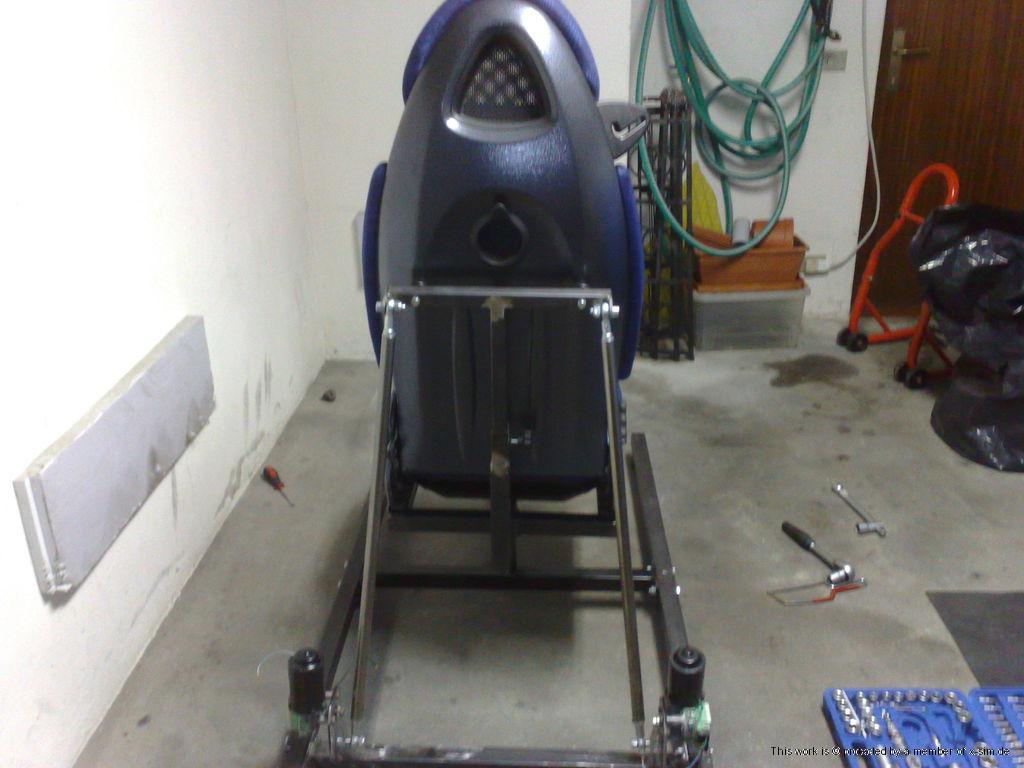

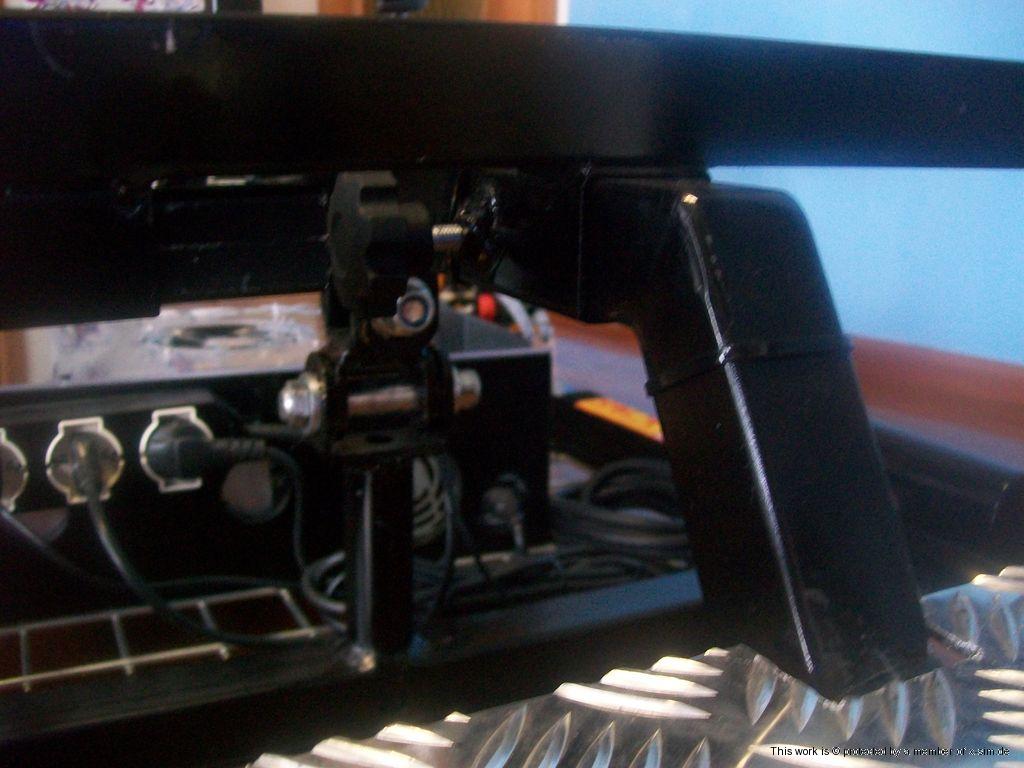

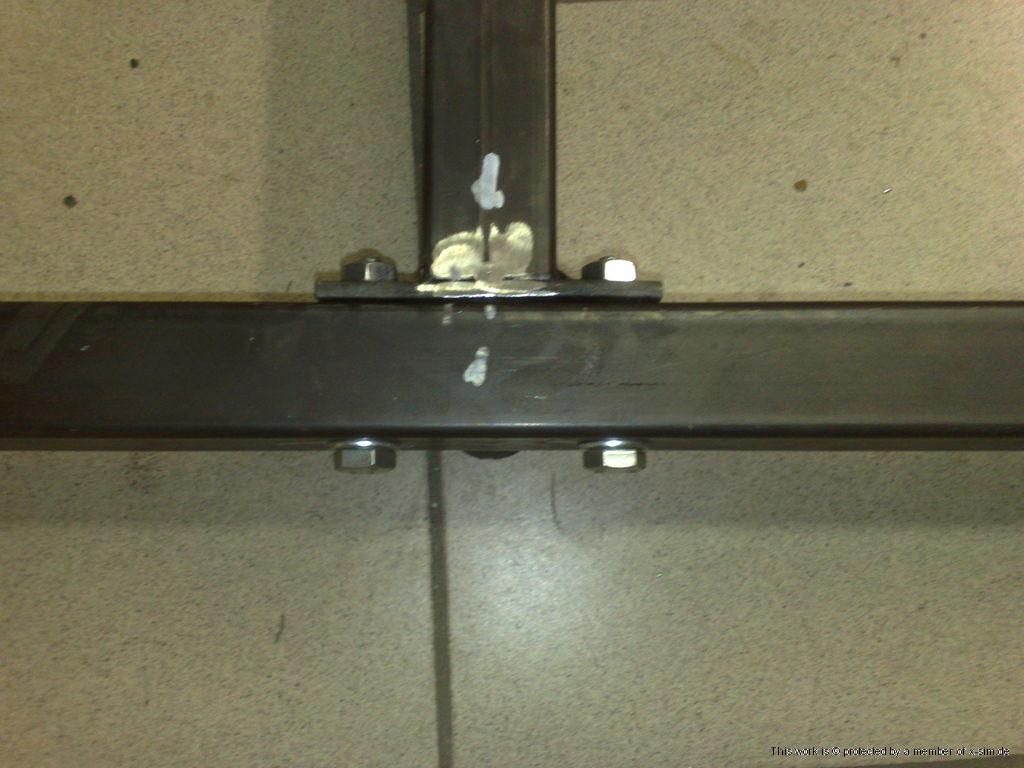

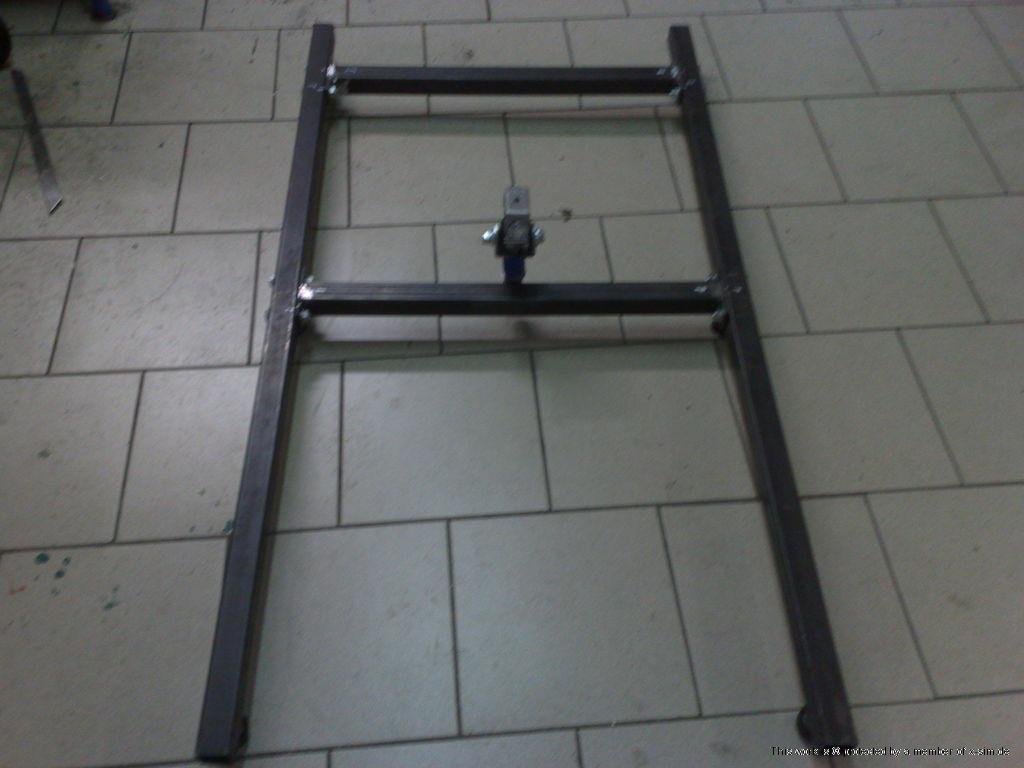

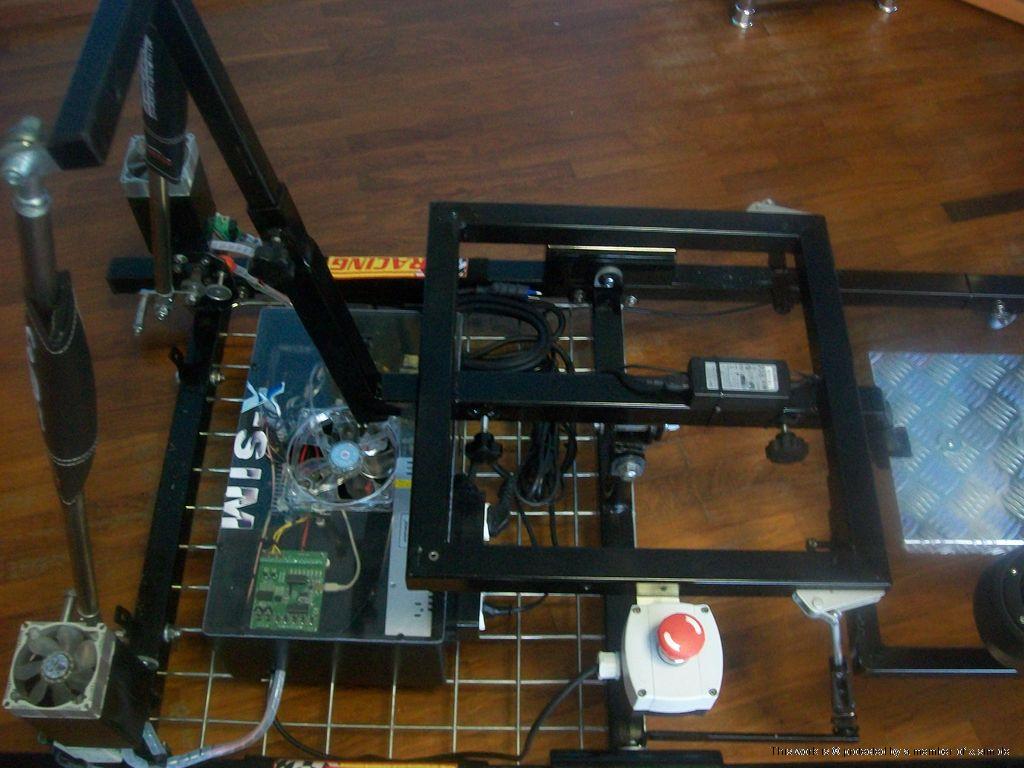

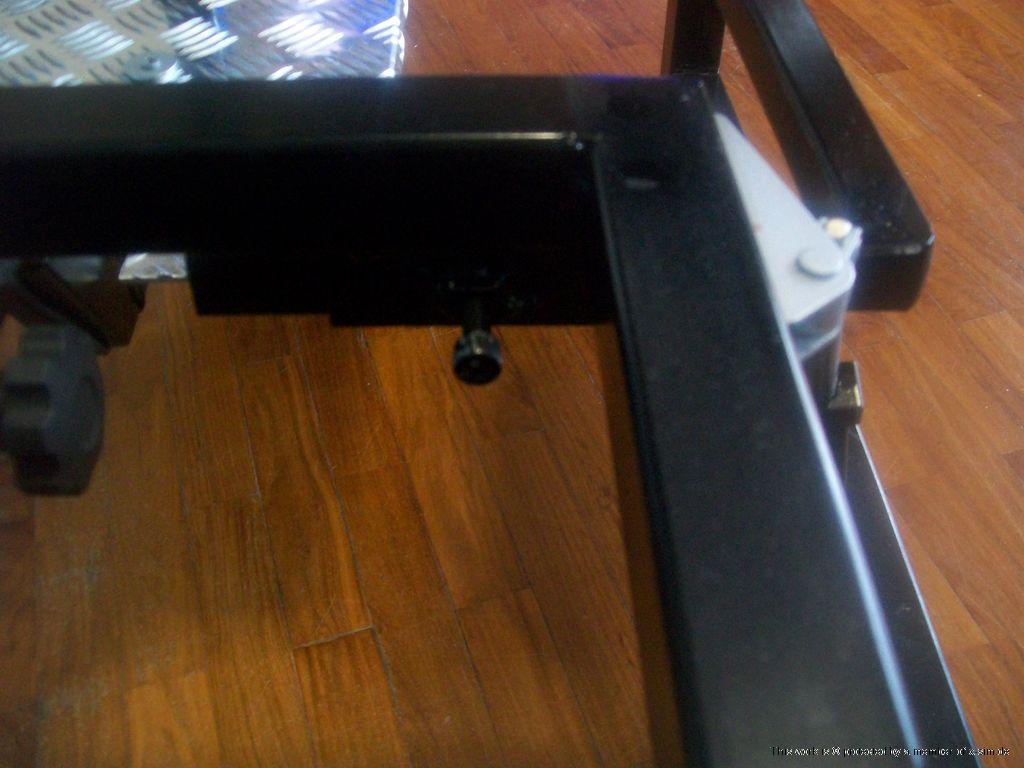

Building structure

836837839840841838

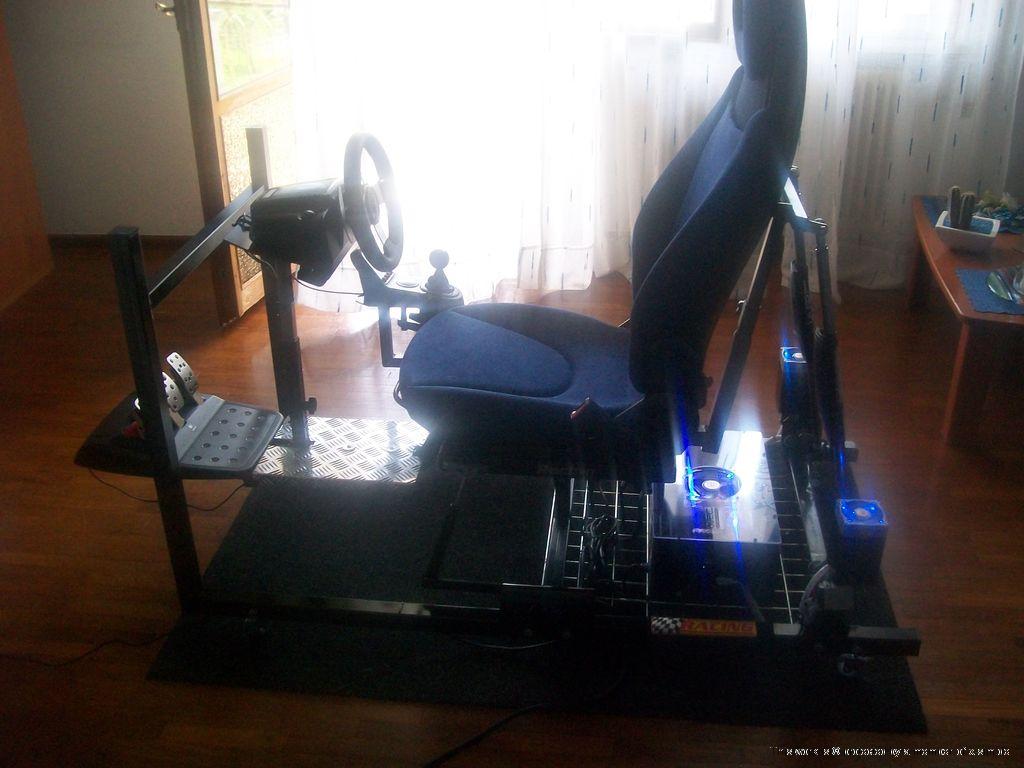

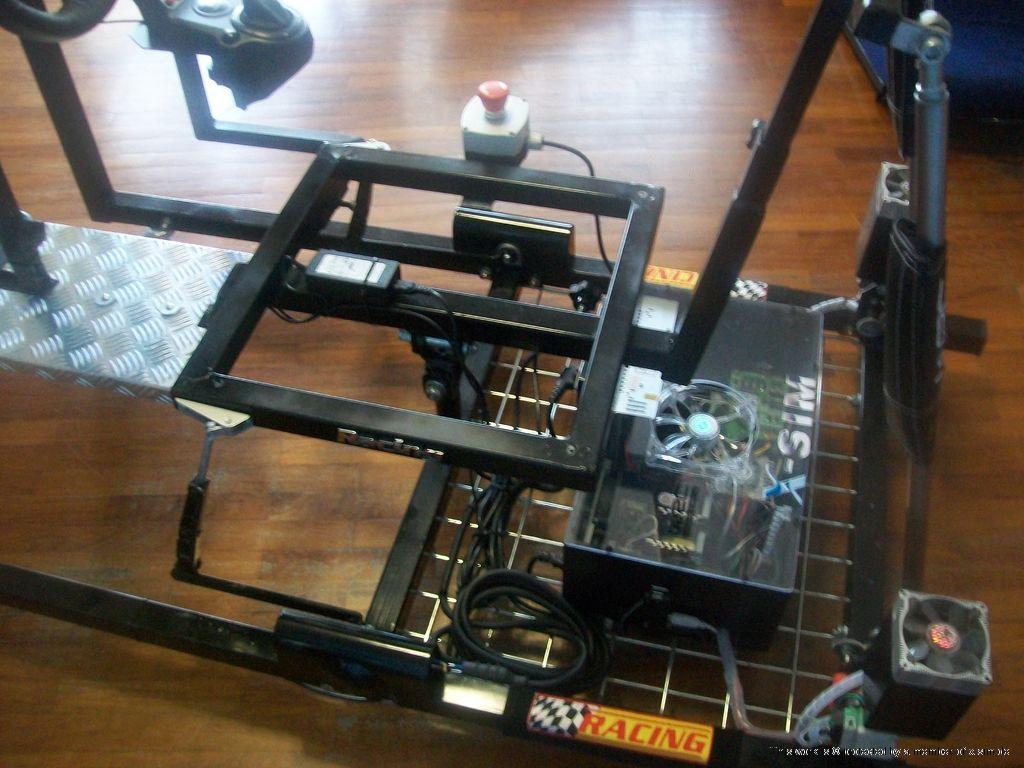

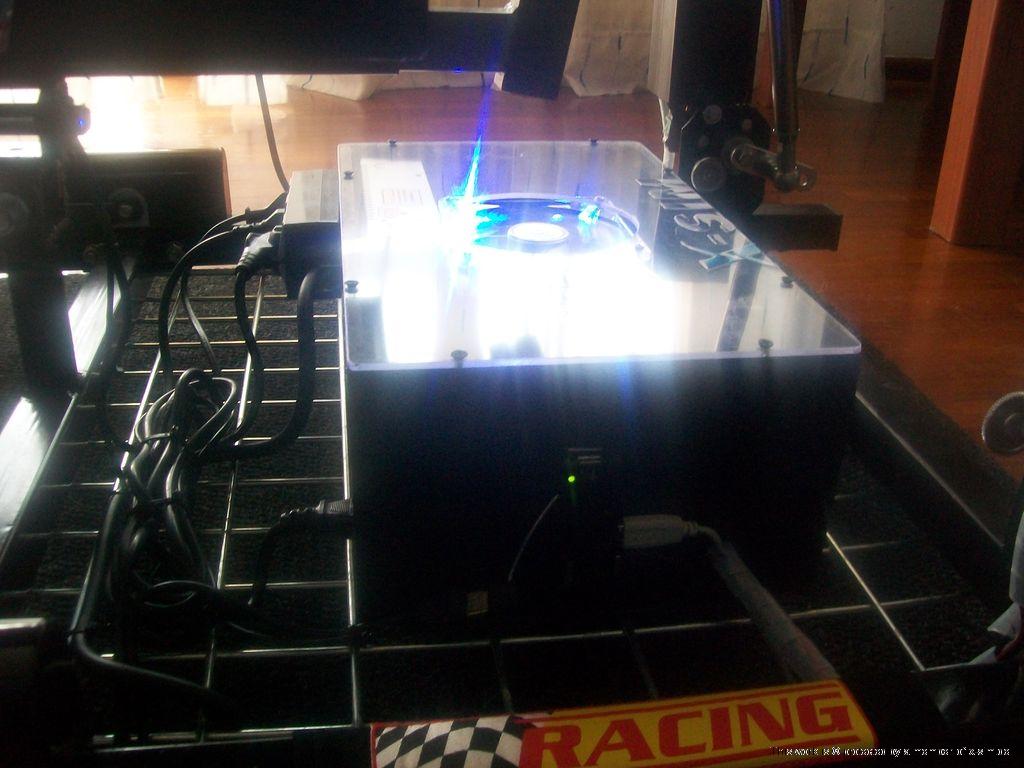

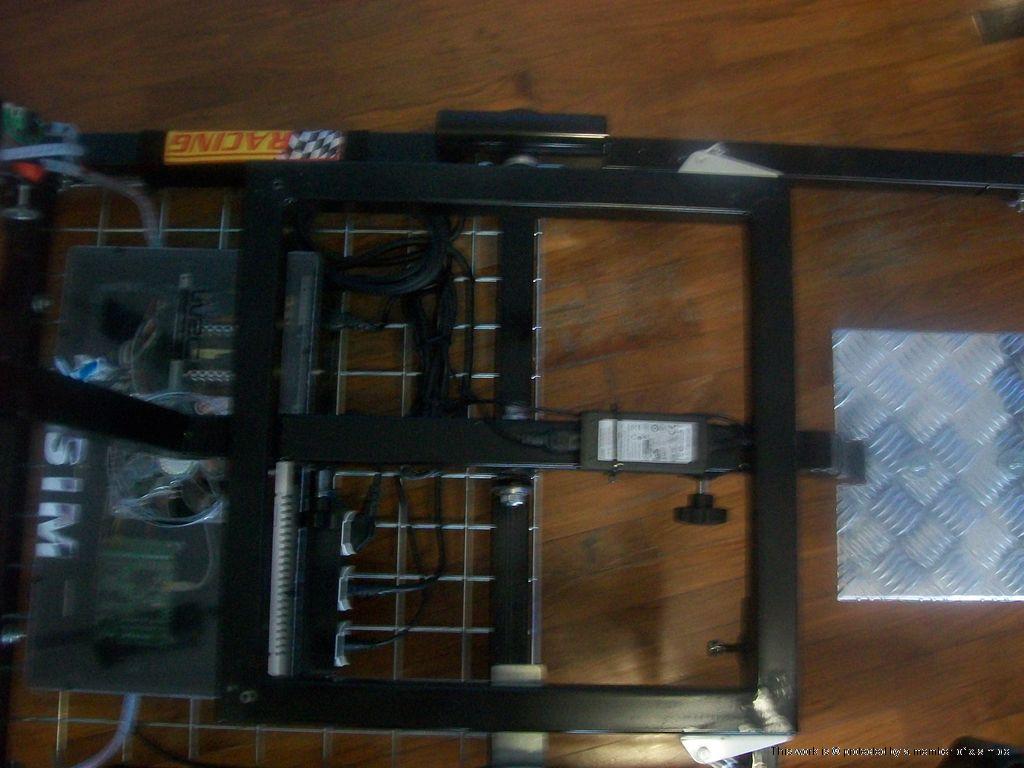

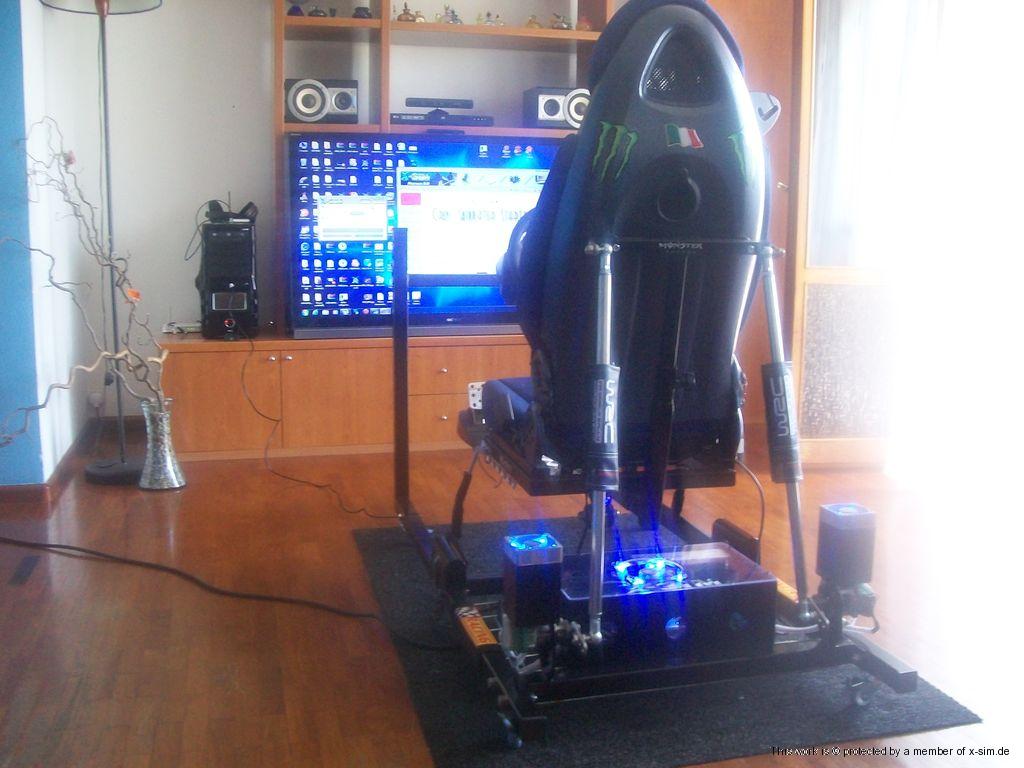

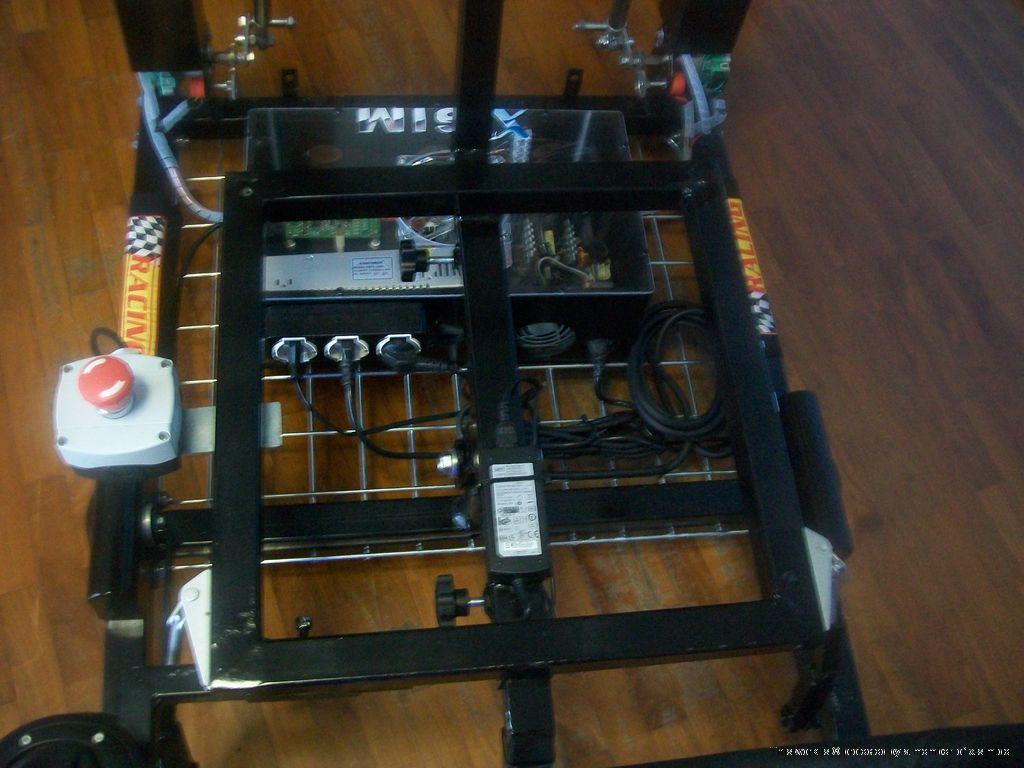

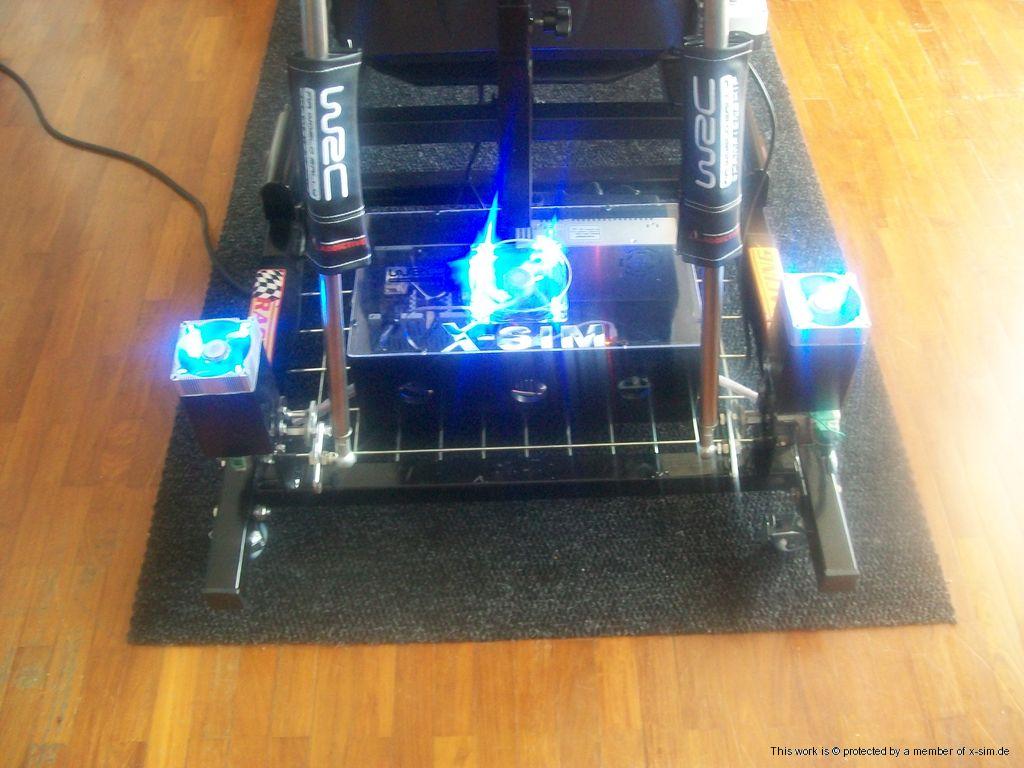

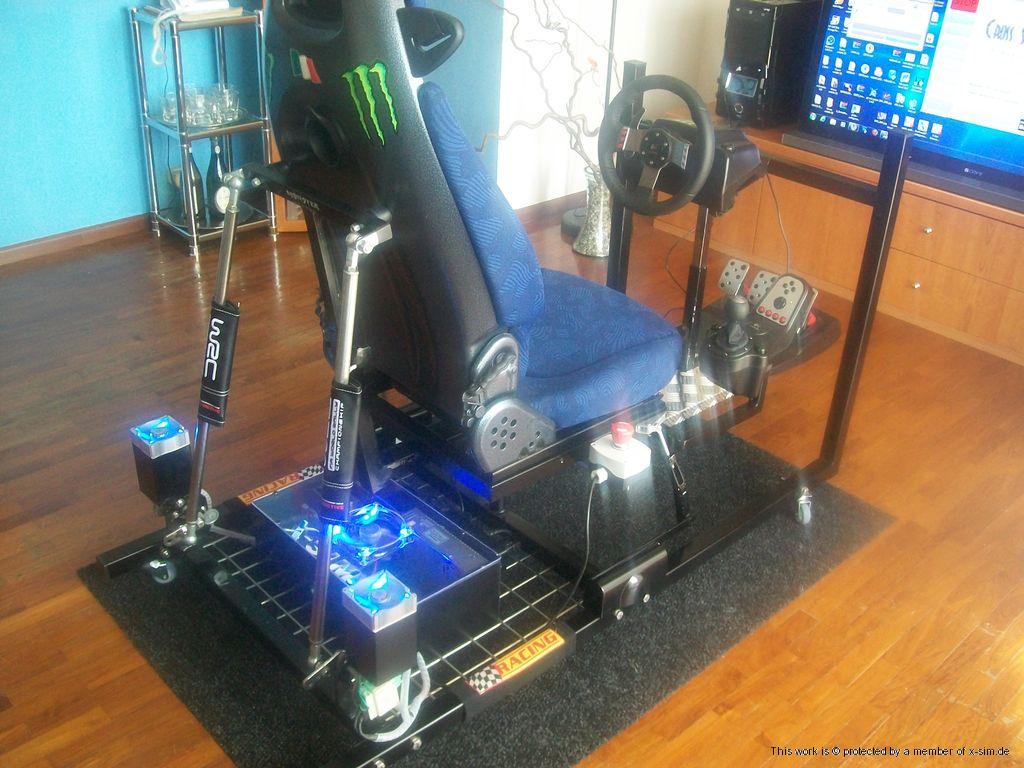

Finished Structure STAGE 1

853852851850849848847846845844843842861860859858855854



UPDATE 01/08/2012

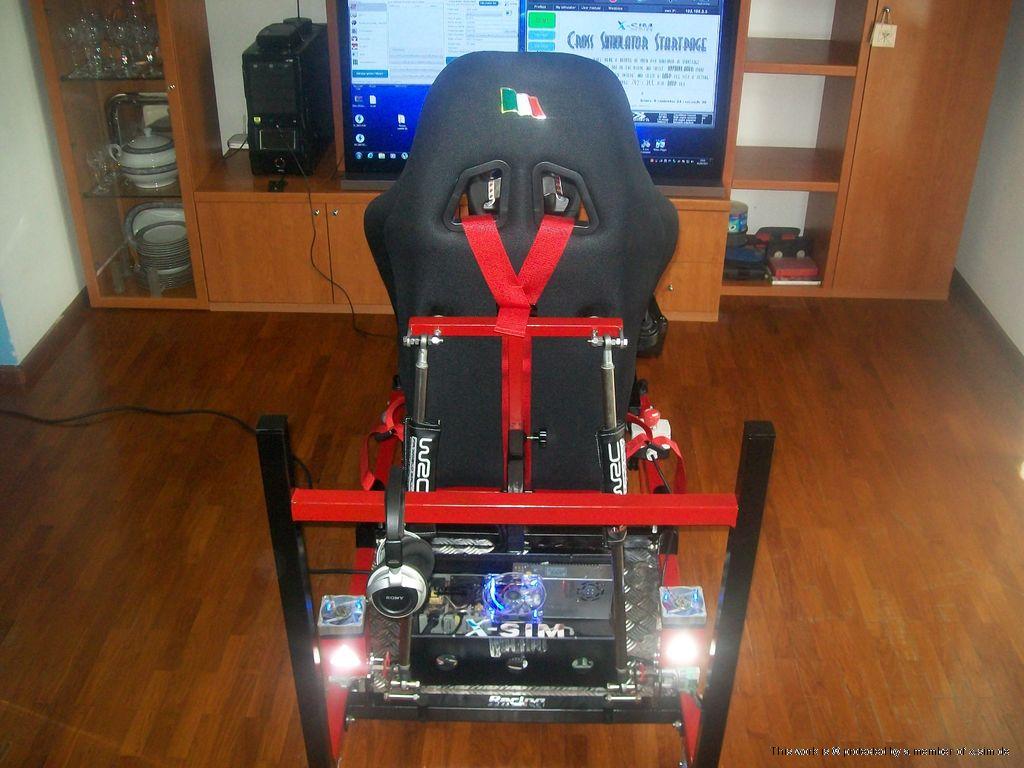

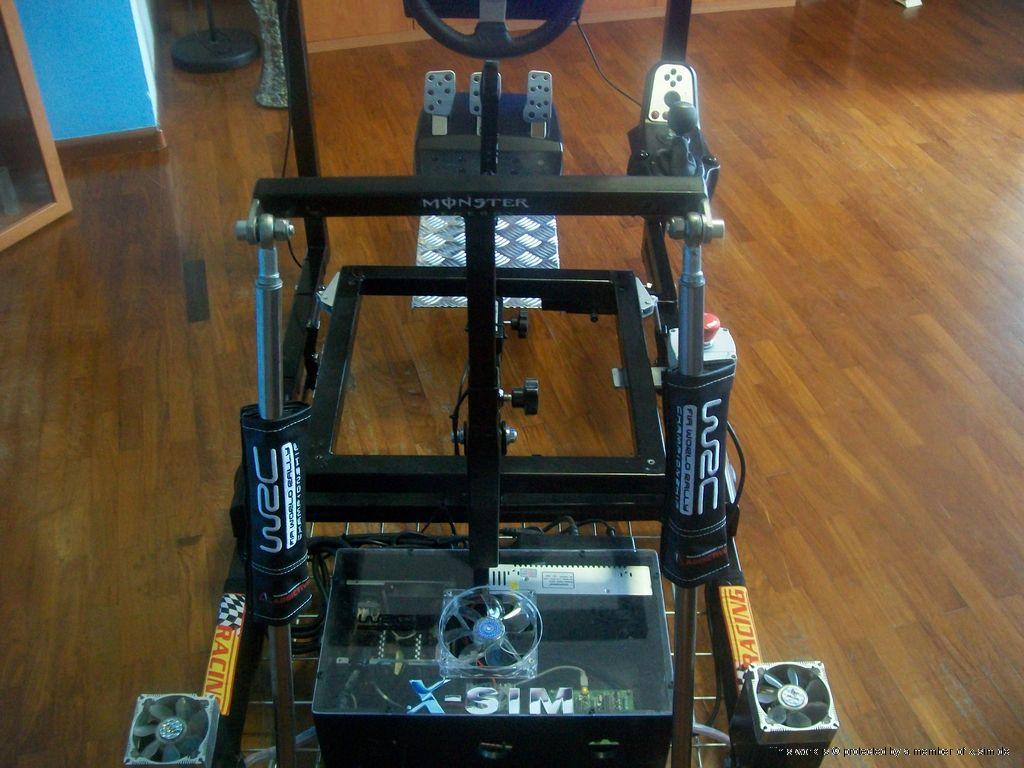

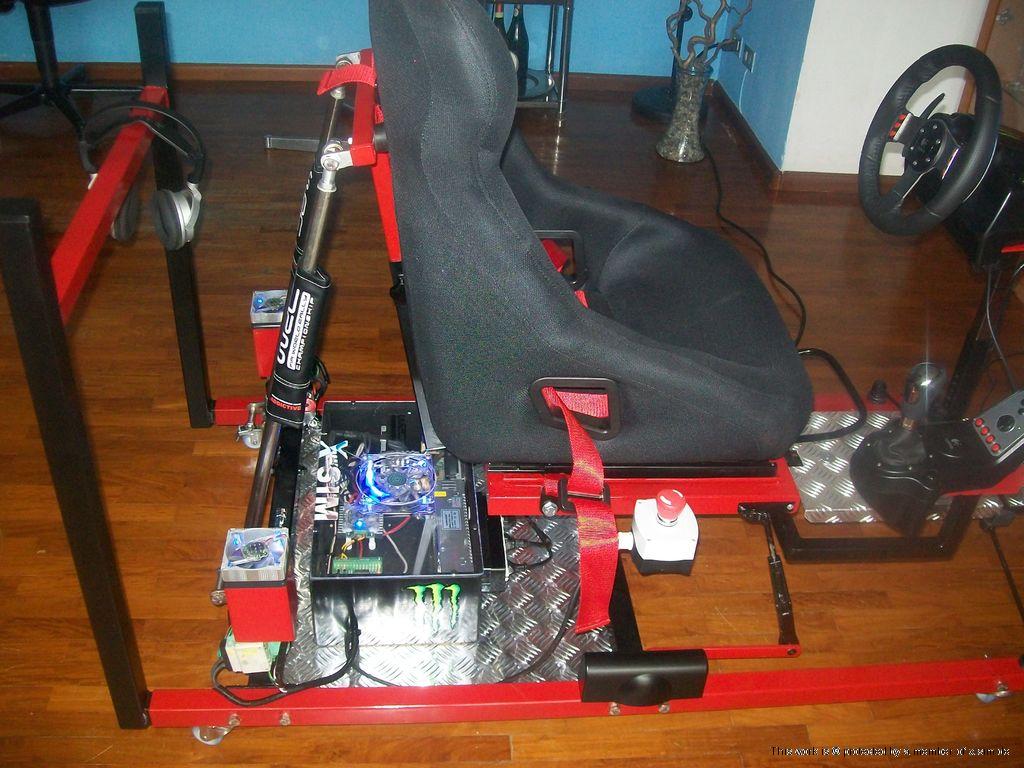

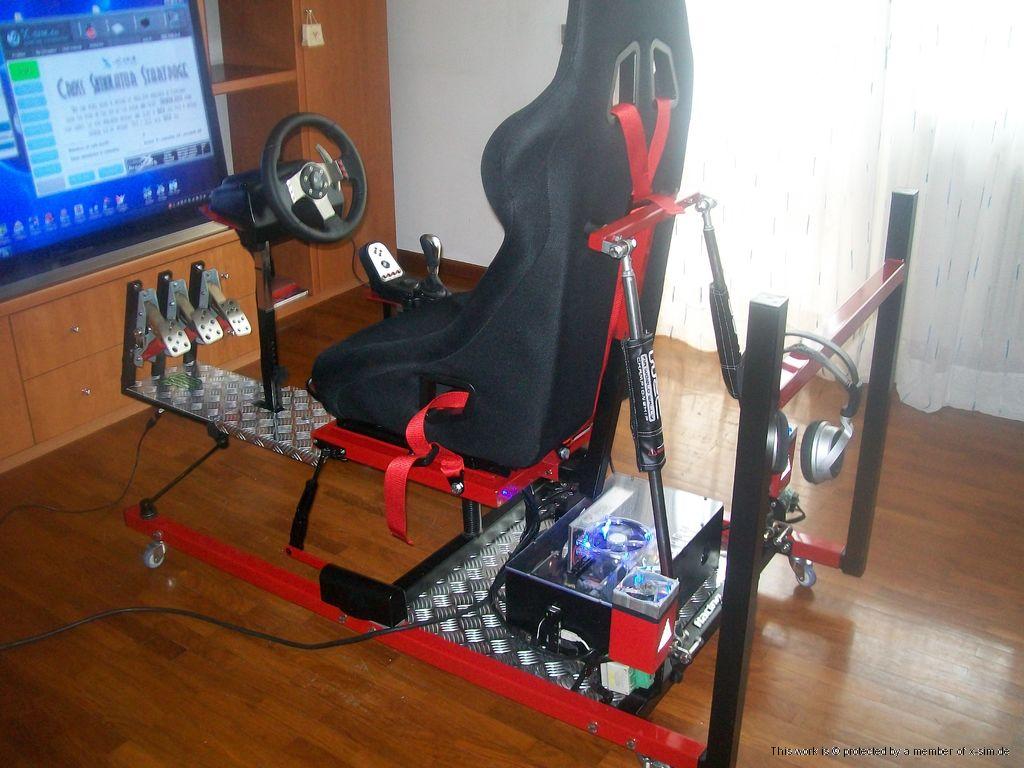

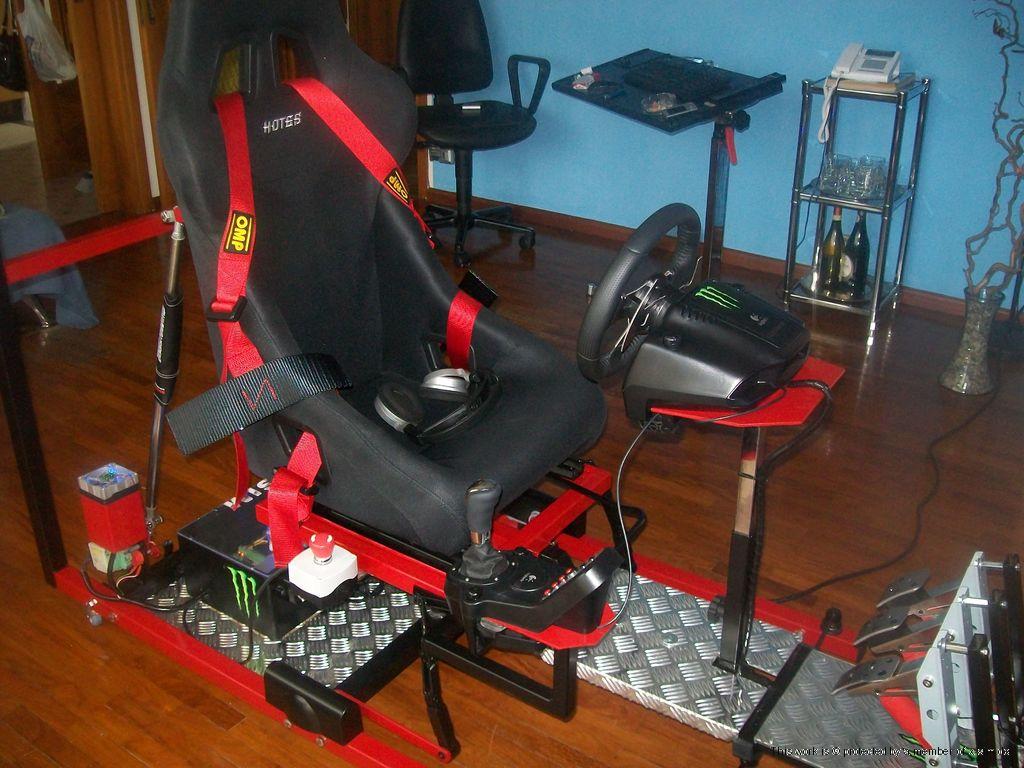

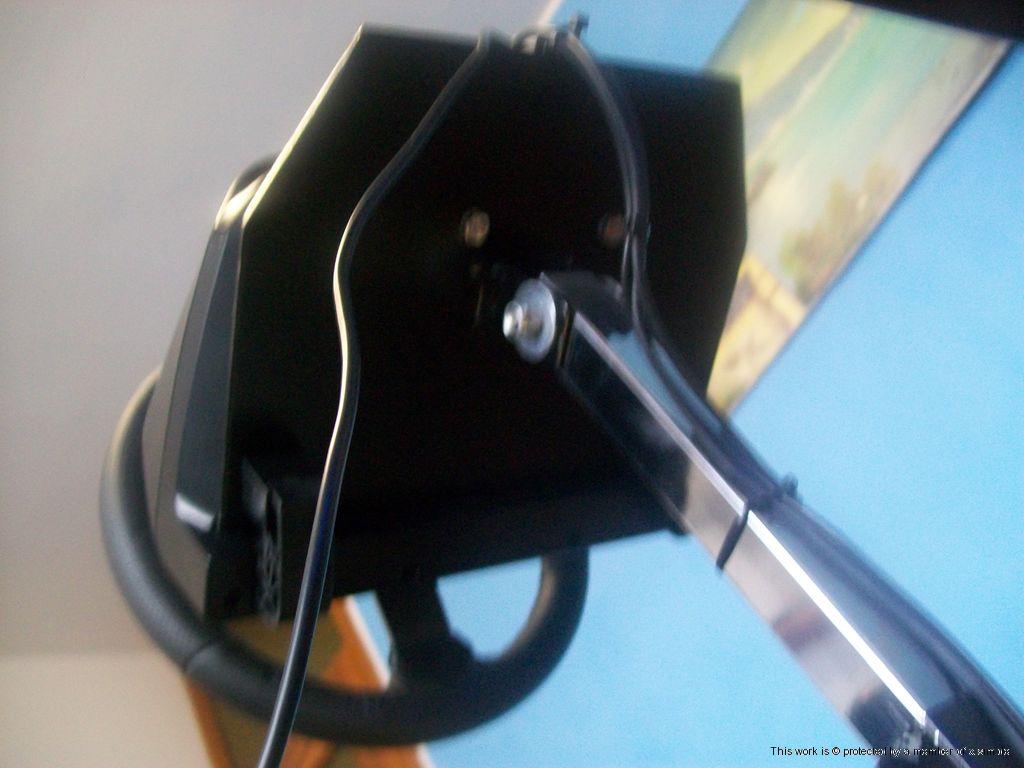

STAGE 2

Work carried out:

Replaced hub central joint (the first was noisy) = DONE

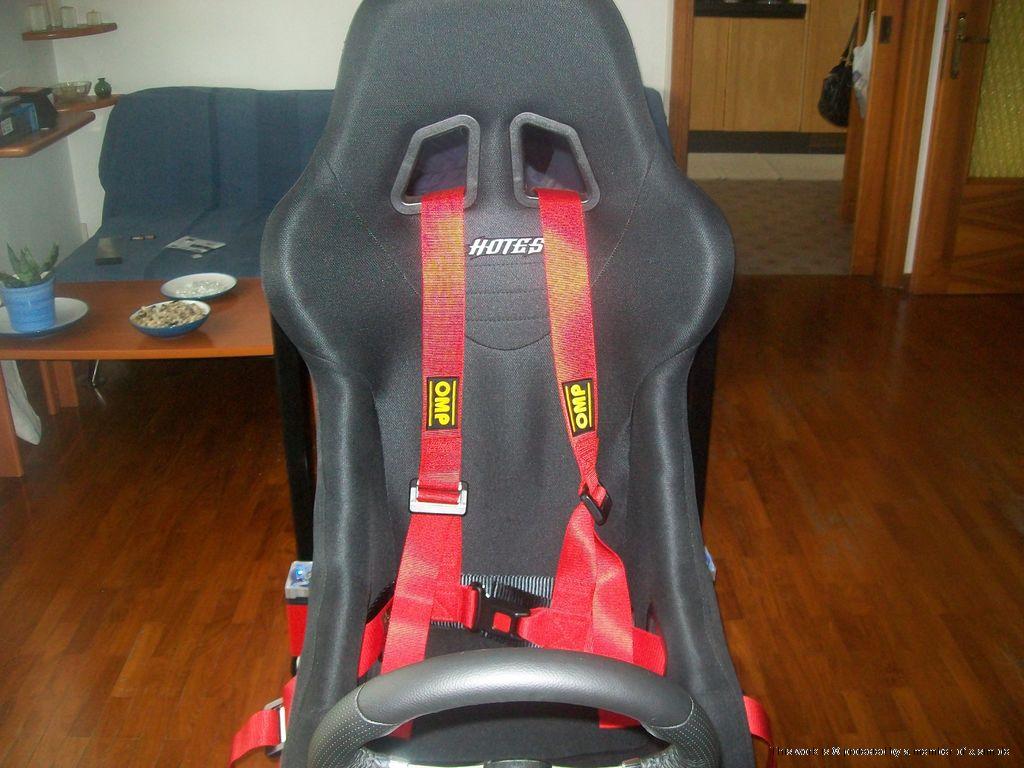

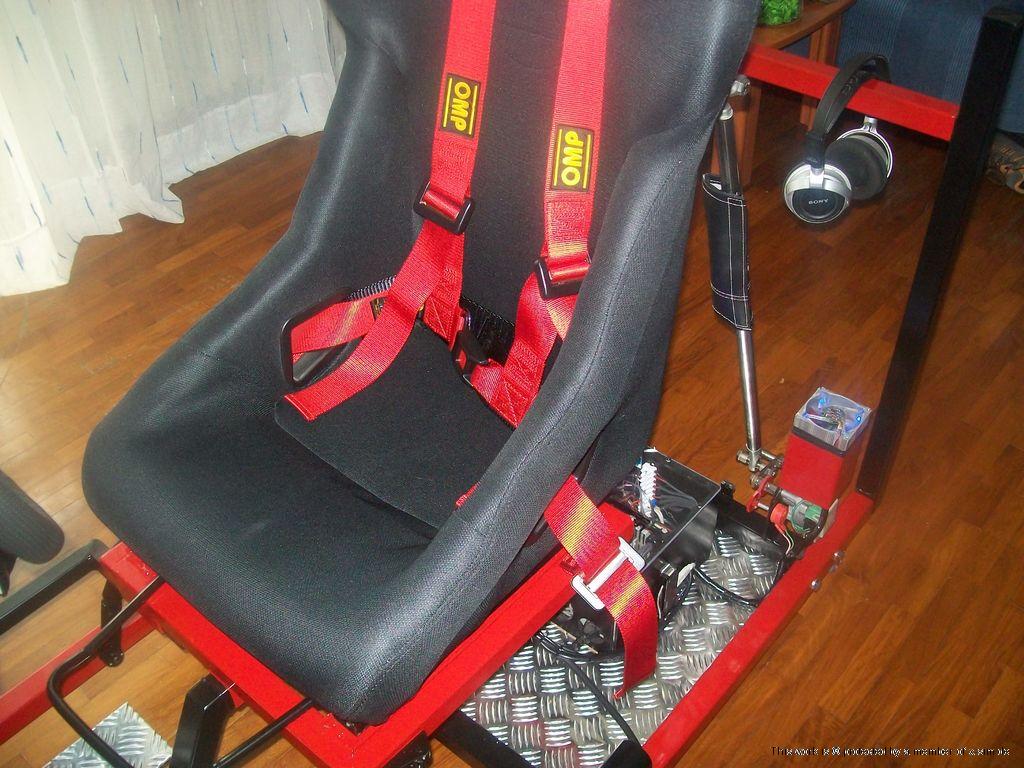

Replaced with a racing seat = DONE

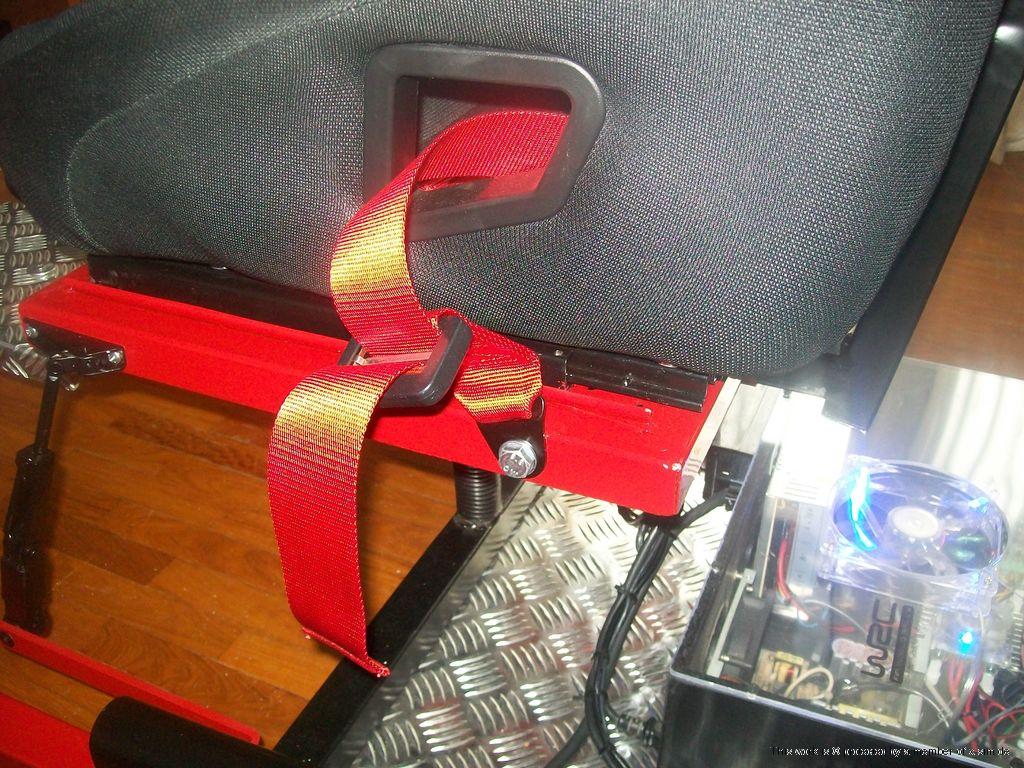

Added belts OMP racing = DONE

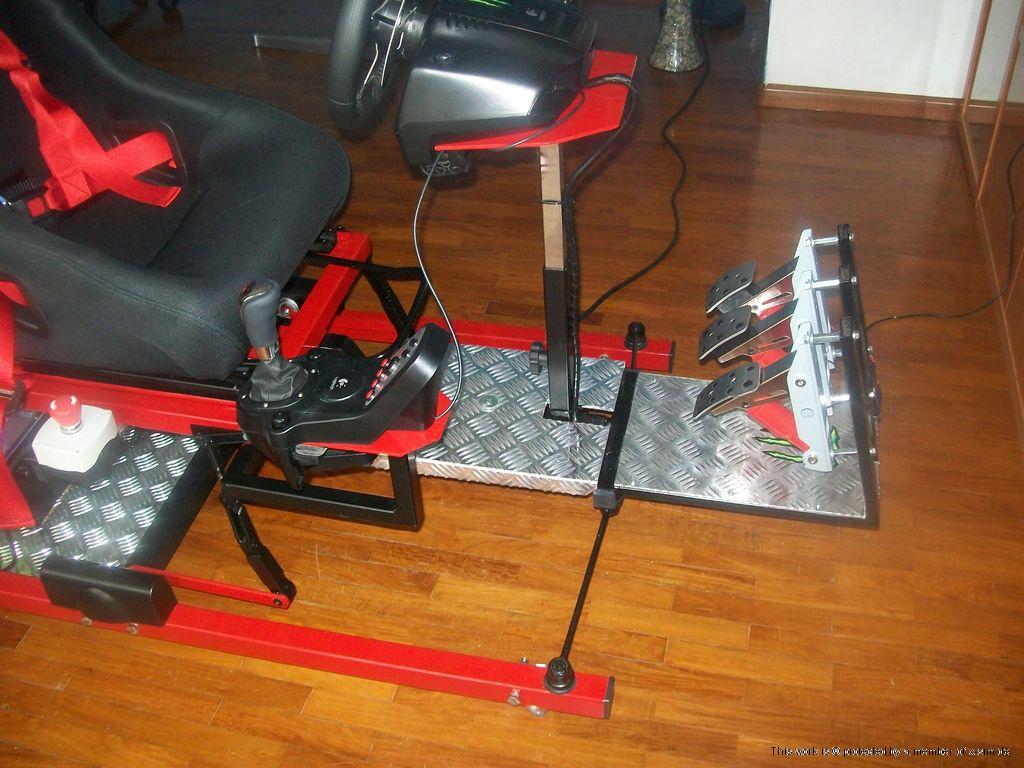

Painted the whole structure = DONE

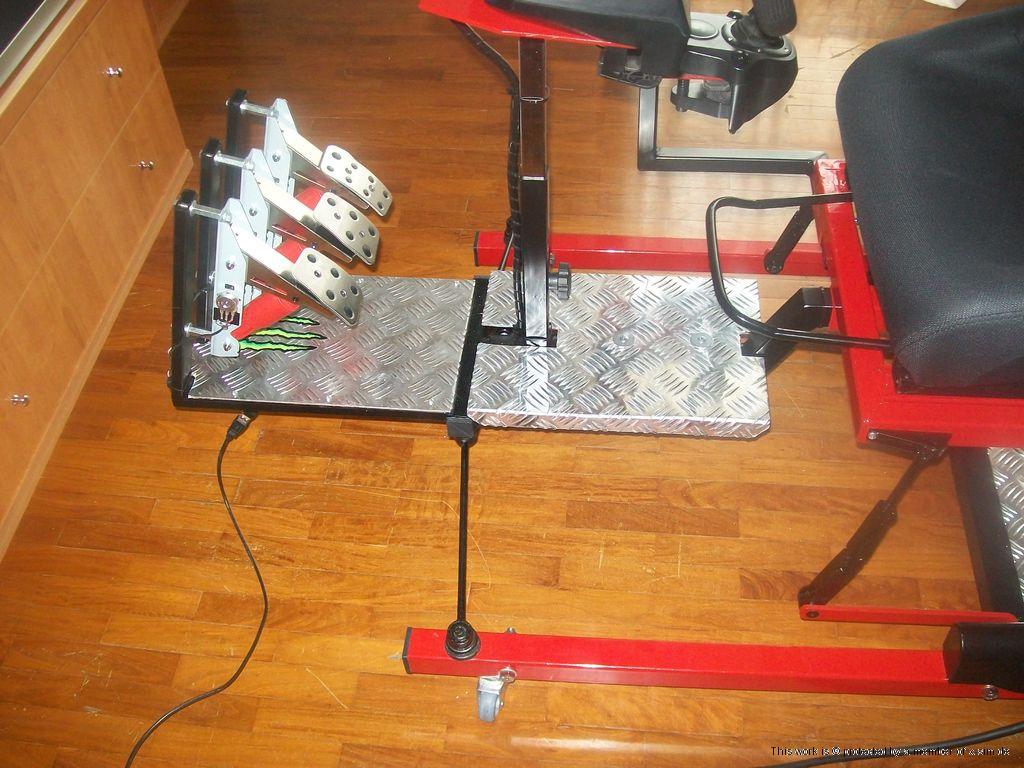

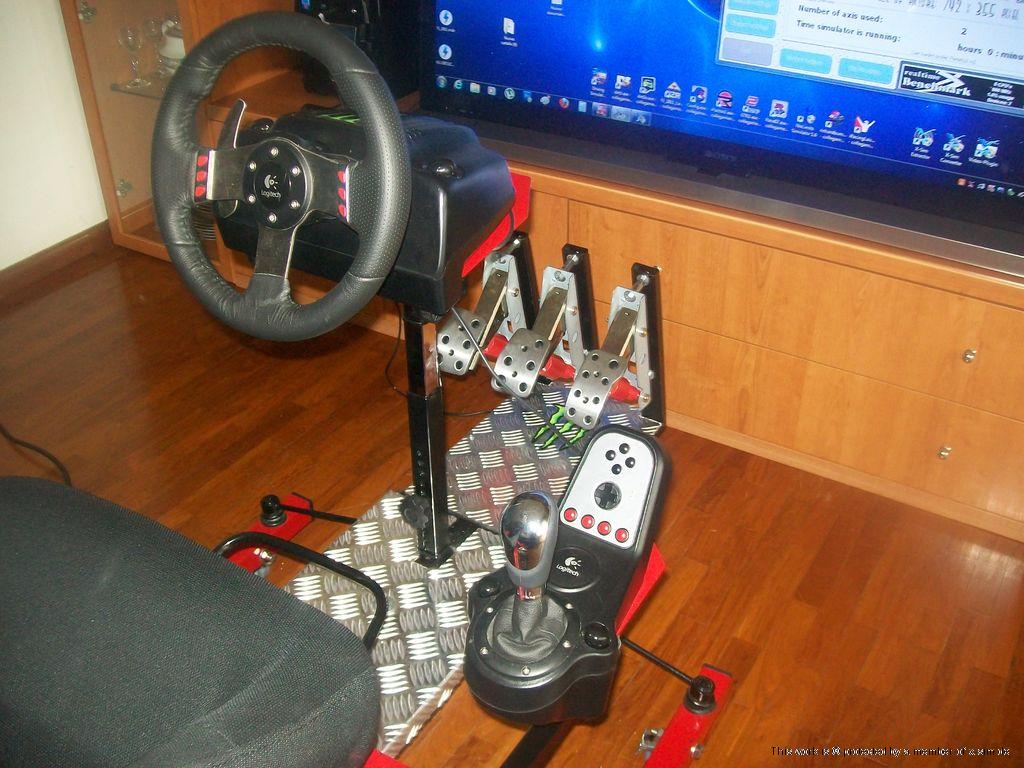

Changed the pedals = DONE

Replaced gear knob = DONE

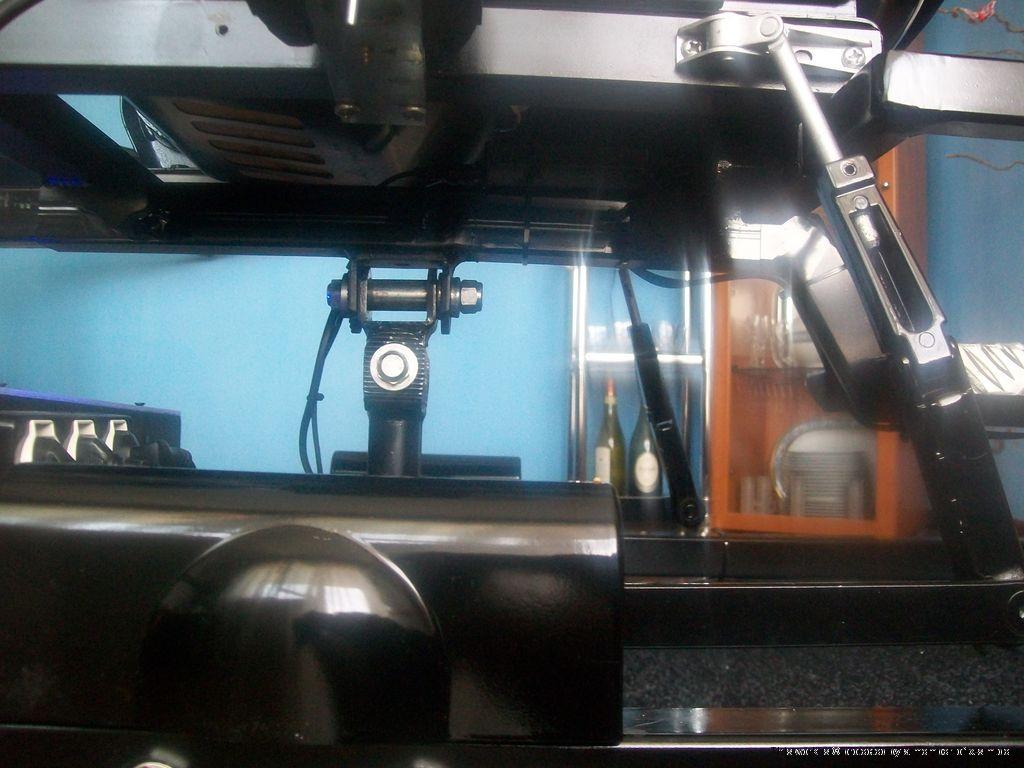

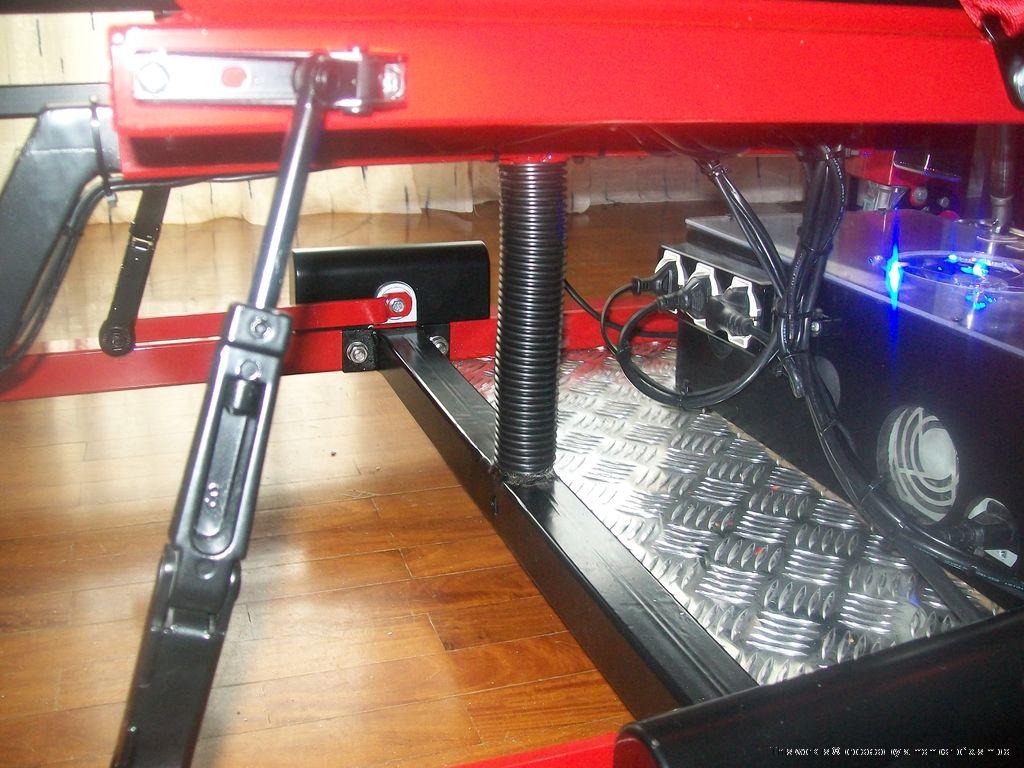

Added articulated arms for horizontal oscillation = DONE

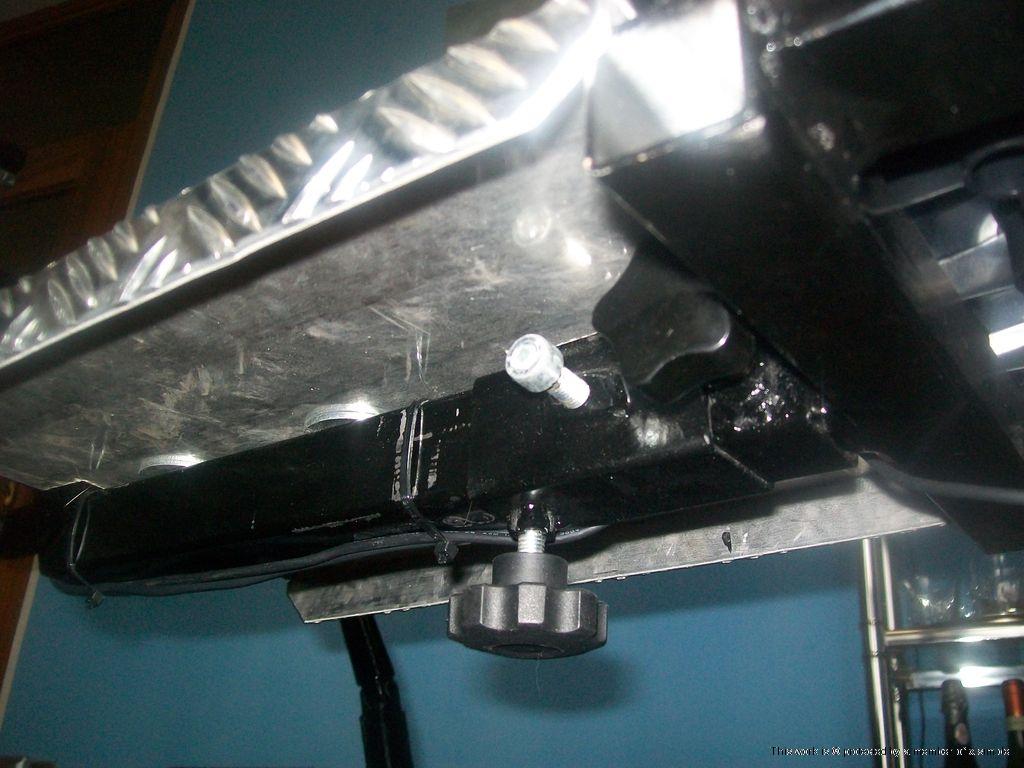

Added aluminum in the structure [/b] = DONE

829828830831832833835834825826827824823

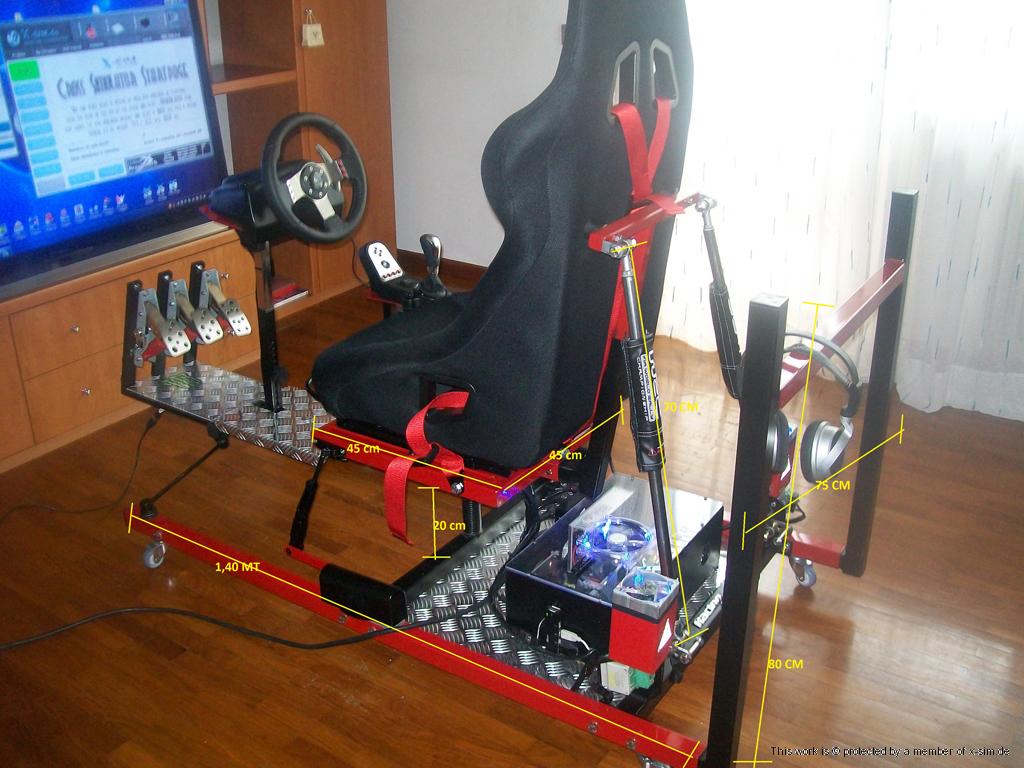

Measurements of the structure

1988

STAGE 3

As soon as I find the time I need to finish the following improvements:

Plexiglass protection for the mechanical parts in movement

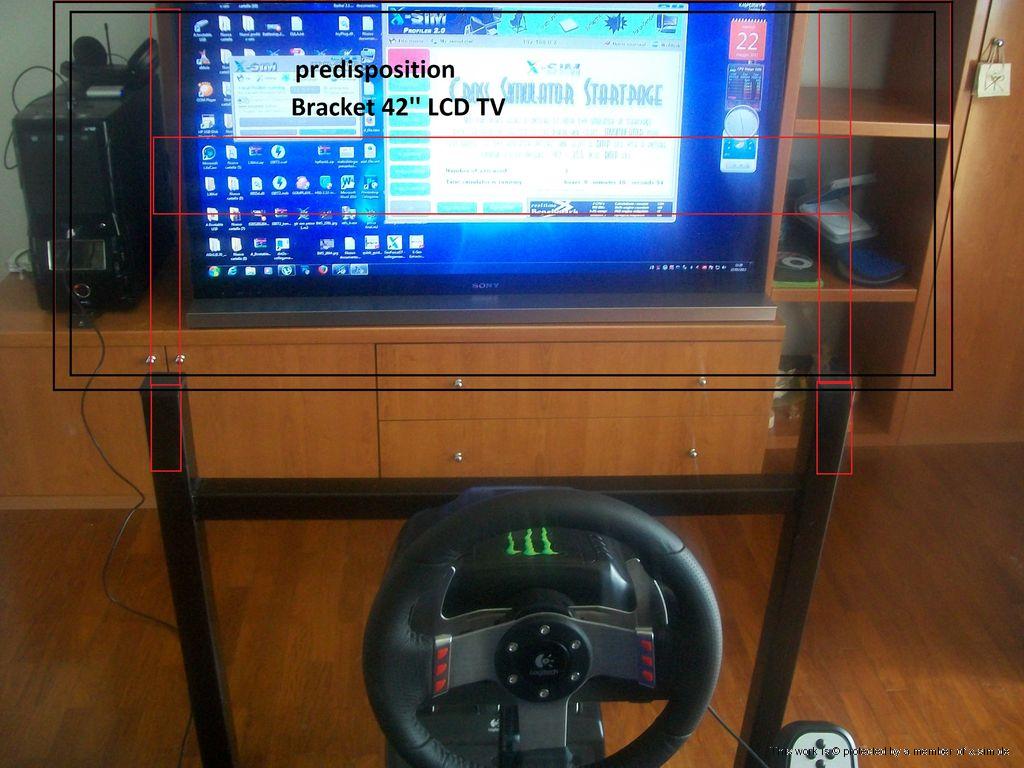

Bracket 42'' TV triple screen
Brackets and 5.1 speakers
Side panels and rear
2° monitor TouchScreen
Speedometer = DONE
And finally, if I would like to add a third motor to simulate the loss of adhesion

Added dashboard with galaxy s4 thanks to the new function of x-sim 3




YOUTUBE VIDEO TEST STAGE 1

Sorry for the quality of the video I made them with the cell I get the camera to be repaired ...
then put in HD


X-SIM TEST dinamic configuration speed


Look at my son how to destroy a BMW :D



2 nd Test
Reactions of the simulator with the braking acceleration curbs and off the track and some fast lap



Thanks for helping me to SirNoName for NoLimits Simulator Used x-sim 3 Stage 2 is phenomenal ;)

X-SIM - Test n°1 - NoLimits Simulator




X-SIM - Test 2 - NoLimits Simulator

Last edited by kevin123 on Sat 18. Oct 2014, 21:29, edited 13 times in total.
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby floriske » Fri 7. Dec 2012, 16:10

Hi Kevin,

Great to see your topic ready for the finished projects section!

Once again my compliments on a great build!
I am no longer an admin/active moderator at http://www.x-sim.de. Please contact one of the other admins or moderators if you have any questions. Thank you!

My sim-project: Floriske.nl's 2DOF Playseat GT Wiper motor Project (sold)
User avatar
floriske

Posts: 238
Images: 96
Joined: Mon 2. Jul 2012, 10:23
Location: The Netherlands
Has thanked: 8 times
Been thanked: 7 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby motiondave » Sat 8. Dec 2012, 00:28

still looking good
User avatar
motiondave

Posts: 997
Images: 1
Joined: Tue 20. Mar 2012, 16:36
Location: Sydney Australia
Has thanked: 11 times
Been thanked: 13 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby kevin123 » Sun 9. Dec 2012, 10:59

Thanks guys

I'm glad you appreciate my work as I appreciate yours is very proud to be part of this community!! That is growing more and more keep it up you ;) are great!!


thanks again

Kevin
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby hc26 » Sun 13. Jan 2013, 16:24

First of all I want to congratulate Kevin for his awesome project.
I decided to replicated that rim, but I know that isn't simple as it seems :)

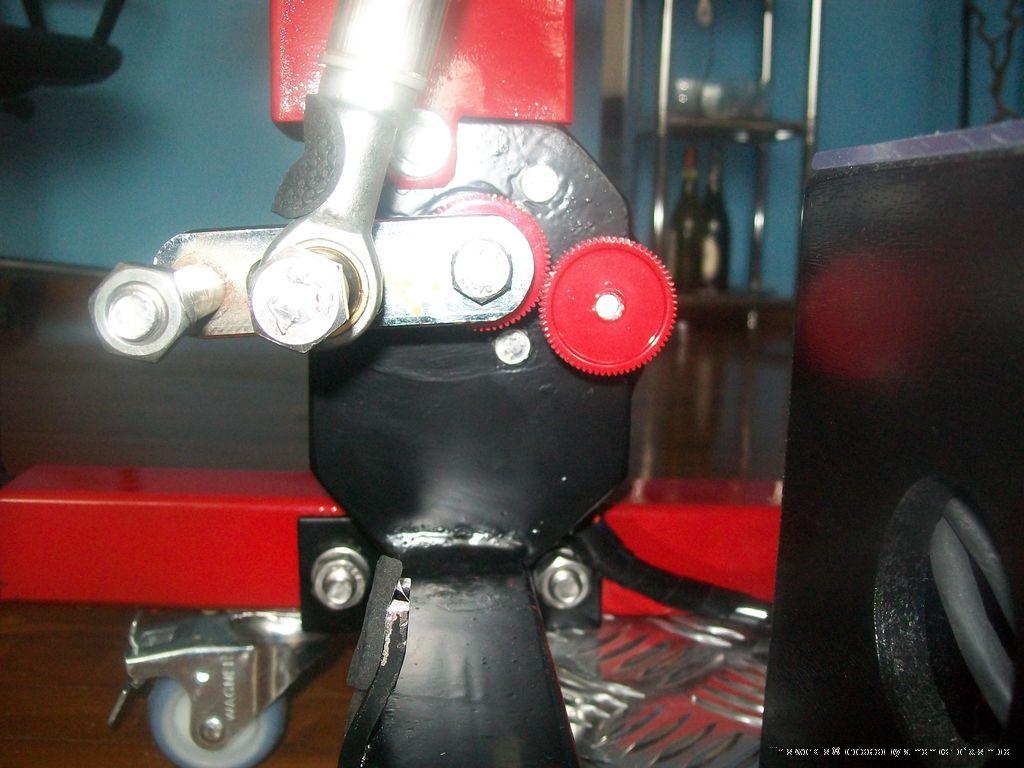

I have a question about the pots you have added as feed-back to the Velleman board.
I want to connect them to the wiper motor with a 1:1 ratio, so the will never make a complete turn (in other words they will never reach the extreme 0V and 5V)
Is that a problem?
I need to fix the ratio in order to let the pots to complete a turn?
Thanks in advace ;)
----------------

ITALIANO:
Innanzitutto vorrei congratularmi con Kevin per il suo fantastico progetto, che ho deciso di prendere come spunto per il mio ;)

Ho una domanda riguardo ai potenziometri.
Io voglio connetterli al motore dei tergi in modo con un rapporto 1:1, in pratica 1giro del motore=1 giro del potenziometro.
Il problema è che nella postazione i motori non faranno mai un giro completo ( ma solo metà + o -) e quindi di conseguenza nemmeno l'uscita dei potenziomentri raggiungerà mai gli estremi, cioè 0V e 5V.

E' un problema? Devo sistemare il rapporto di trasmissione motore-potenziomentri in modo da riggiungere tali estremi?

Grazie ;)
hc26

Posts: 3
Joined: Wed 9. Jan 2013, 00:04
Has thanked: 1 time
Been thanked: 1 time

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby kevin123 » Thu 17. Jan 2013, 21:45

hc26 wrote:ITALIANO:
Innanzitutto vorrei congratularmi con Kevin per il suo fantastico progetto, che ho deciso di prendere come spunto per il mio ;)

Ho una domanda riguardo ai potenziometri.
Io voglio connetterli al motore dei tergi in modo con un rapporto 1:1, in pratica 1giro del motore=1 giro del potenziometro.
Il problema è che nella postazione i motori non faranno mai un giro completo ( ma solo metà + o -) e quindi di conseguenza nemmeno l'uscita dei potenziomentri raggiungerà mai gli estremi, cioè 0V e 5V.

E' un problema? Devo sistemare il rapporto di trasmissione motore-potenziomentri in modo da riggiungere tali estremi?

Grazie ;)


Ciao hc26
Innanzitutto grazie per i complimenti

Se può esserti di aiuto ti metto un video preso in prestito da un utente del forum che ringrazio ;) per il corretto funzionamento del motore e potenziometri...in pratica il motore non deve fare un giro completo lavora a metà e con igranaggi giusti i potenziometri lavorano da 0v a 5v garantito

http://www.youtube.com/watch?v=kf9M8iwu ... 0xzUn0d9Ej

un consiglio : Se usi la scheda k8055 stai attento che se si resetta il pc oppure va in tilt x-sim la scheda da la corrente diretta ai motori e rischi di rompere i potenziometri con il sistema ad ingranaggi....ed io ne ho rotto ben 6... :D fino a quando non hai configurato bene il tutto il mio consiglio e di usare altri sistemo prova a vedere qui sul forum che ci sono anche altri sistemi per dare la posizione dei motori e se anche succede quello detto in precedenza non hai nessun danno.

Ciao
Kevin




Hello HC26
First of all, thanks for the compliments

If you can help by'll put a video borrowed from a member of the forum;) Thank you for the proper functioning of the engine and pots ... in practice the motor must not make a complete circle in half and work with the right igranaggi potentiometers work from 0v to 5v guaranteed

http://www.youtube.com/watch?v=kf9M8iwu ... 0xzUn0d9Ej

a tip: If you use the card K8055 careful that if you reset the computer or goes haywire x-sim card from direct current to the motors and the risk of breaking the pots with the gear system .... and I have broken than 6 ... : D until you've configured everything well my advice and using other settle try to see here on the forum that there are also other ways to give the position of the engine and if that happens mentioned above do not have any damage.

Hello
Kevin
Last edited by kevin123 on Thu 22. Aug 2013, 16:16, edited 1 time in total.
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby hc26 » Thu 17. Jan 2013, 22:18

Ok, grazie per la risposta.

Quindi in poche parole se il motore può fare solo la metà di un giro completo nel suo funzionamento (come nel tuo progetto) devo usare degli ingranaggi in rapporto 2:1 in modo che il potenziometro faccia un giro completo.
Però dubito che arrivi perfettamente a 0V e a 5V, o sbaglio?



Ok, thank you for the answer.

In other words if the motor can only make half of a complete circle I have to set up a gear system with a 2:1 ratio that will turn the pots one full turn.
However I think that the output of the potentiometers will never reach 0V and 5V, right?
hc26

Posts: 3
Joined: Wed 9. Jan 2013, 00:04
Has thanked: 1 time
Been thanked: 1 time

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby kevin123 » Sat 19. Jan 2013, 13:45

hc26 wrote:Ok, grazie per la risposta.

Quindi in poche parole se il motore può fare solo la metà di un giro completo nel suo funzionamento (come nel tuo progetto) devo usare degli ingranaggi in rapporto 2:1 in modo che il potenziometro faccia un giro completo.
Però dubito che arrivi perfettamente a 0V e a 5V, o sbaglio?



Ok, thank you for the answer.

In other words if the motor can only make half of a complete circle I have to set up a gear system with a 2:1 ratio that will turn the pots one full turn.
However I think that the output of the potentiometers will never reach 0V and 5V, right?


Non saprei che tipo di ingranaggi devi usare può essere che vanno bene quelli che dici tu 2:1 (qui ti lascio nelle mani di esperti) io ho usato 2 ingranaggi recuperati da un servocomando e sono uguali come grandezza e dentatura (guarda le foto nel progetto) e ti assicuro che ottengo i 5V sia nella direzione positiva che negativa
anche perchè il 0% e il 100% che è = a 5V cioè il campo di lavoro del motore lo devi impostare tu in x-sim http://postimage.org/image/z83nt797z/... comunque tieni presente che quei valori sono la giusta posizione del motore che i potenziometri danno alla k8055.

Ciao
Kevin





I do not know what kind of gear you can use that are happy with what you say 2:1 (here I leave you in the hands of experts) I used 2 gears retrieved from a servo and are equal in size and teeth and I assure you that I get 5V is in the positive and negative
also because the 0% and 100%, which is = 5V which is the operating range of the engine you have to set you in x-sim http://postimage.org/image/z83nt797z/ ...however, keep in mind that those values ​​are in the right position of the motor potentiometers give the K8055.

Hello
Kevin
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby luke001 » Mon 28. Jan 2013, 03:06

First of all I want to congratulate Kevin for the project and for the very detailed guide, which for non-experts like me is very important ...
I decided to follow the project 2DOF K8055 + Sabertooth 2x12 Kevin to make my first project.
I followed all the steps in the guide, until the test engine of which I enclose a movie, but now I have the problem that I can not run X-sim Extractor, I have no output signal from the motor program for movement

X-Sim Converter Settings
http://www.youtube.com/watch?v=Q4icmmH7 ... e=youtu.be

X-Sim Settings Extractor
http://www.youtube.com/watch?v=ukR0kuft ... e=youtu.be

Movement of the engines
http://www.youtube.com/watch?v=xV6biMI7 ... e=youtu.be

Maybe I Maybe I missed some steps, could you help?

Thanks in advance
Luca


ITALIAN:

Innanzi tutto voglio fare i miei complimenti a Kevin per il progetto e per la guida molto dettagliata, che per persone non esperte come me è importantissima…
Ho deciso di seguire il progetto 2DOF K8055+Sabertooth 2x12 di Kevin per realizzare il mio primo progetto.
Ho seguito tutti i punti descritti nella guida, sino al test dei motori di cui allego un filmato, ora però ho il problema che non riesco a fare funzionare X-sim Extractor, non ho alcun segnale in uscita dal programma per il movimento motori.

Impostazioni X-Sim Converter
http://www.youtube.com/watch?v=Q4icmmH7 ... e=youtu.be

Impostazioni X-Sim Extractor
http://www.youtube.com/watch?v=ukR0kuft ... e=youtu.be

Movimento dei motori
http://www.youtube.com/watch?v=xV6biMI7 ... e=youtu.be

Forse mi sono perso qualche passaggio, potresti darmi un aiuto?

Grazie in anticipo
Luca
luke001

Posts: 3
Joined: Fri 7. Sep 2012, 00:59
Has thanked: 1 time
Been thanked: 0 time

Re: Sim Project - 2DOF K8055+Sabertooth 2x12 -Stage 2

Postby prodigy » Mon 28. Jan 2013, 12:13

Hi Luca,

I saw that you didn't copy effects in Extractor. When you click on MotionDriver button, click on Telemetry Plugin button, choose rfactor and click the big blue button on top-right, it is called "Standard setup for left dialog". This button will copy all effects from upper box into lower box.

Upper box presents all the available effects you can have in the game, and lower box presents the effects you choose to have. For example, you can move only 2 effects from upper box to the lower box and you will have only that two effects available. But the standard procedure is to simply copy all effects with press of the big blue button.
User avatar
prodigy
X-Sim Supporter

Posts: 274
Images: 42
Joined: Tue 16. Oct 2012, 12:32
Location: Pula, Croatia
Has thanked: 20 times
Been thanked: 21 times
